Banjo M225PO 2" Manifold Poly Centrifugal Pump End, 5-Vane Impeller, Pump Only
Banjo M225PO 2" Manifold Poly Centrifugal Pump End, 5-Vane Impeller, Pump Only
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

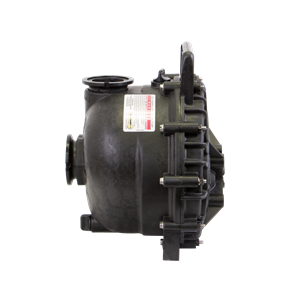

Banjo M225PO is the 2" manifold-flange polypropylene self-priming centrifugal pump end with the 5-vane (higher-pressure) impeller and 3/4" shaft, sold without a drive. Banjo has since folded this part number into the M220PO, but if your sprayer or tender was built with an M225 pump and you want the exact same unit back on it, we still have new M225PO pump ends on the shelf. Bolts to your existing gas engine, hydraulic motor or electric motor.
In stock at our Spokane, WA shop and ships same or next business day. If we sell out, the M220PO plus a 12772 5-vane impeller is the identical replacement — call us and we'll sort it out.
What it's for
Water, liquid fertilizer and most crop-protection chemicals. Glass-filled polypropylene body and volute, EPDM check valve and o-rings, mechanical shaft seal. Not for petroleum products or solvents.
Specifications
| Part number | M225PO |
|---|---|
| Type | Polypropylene self-priming centrifugal pump |
| Style | Pump only — no engine or motor |
| Connection | 2" (220 series) manifold flange, inlet and outlet |
| Shaft | 3/4" |
| Impeller | 5 vane (12772) |
| Seal | Mechanical seal (12713) |
| Elastomers | EPDM (check valve and o-rings) |
| Weight | 11.0 lbs |
| Status | Discontinued by Banjo; superseded by M220PO with 12772 5-vane impeller. New old stock available here. |
Related parts
12713 mechanical seal, EPDM · 12772 5-vane impeller · 12705 check valve · M221G 220 series manifold gasket · M220PO current 2" manifold pump end · 200PO 2" NPT pump end
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12702A | 2" poly pump volute | 1 |
| 2 | 12703A | Poly pump rear bracket | 1 |
| 3 | 12705 | Pump checkvalve, EPDM | 1 |
| 4 | 12716 | Pump slinger | 1 |
| 6 | 12772 | Impeller, 5 vane | 1 |
| 8 | M12712 | 2" manifold pump body assembly | 1 |
| 8-1 | 12777 | 1/2" drain plug | 2 |
| 8-3 | UV15163 | AS568A-114 o-ring, EPDM, brown | 2 |
| 9-1 | 12710 | AS568A-029 o-ring, EPDM | 1 |
| 9-2 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 9-3 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 9-4 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 9-5 | 12720 | 1/4-20 x 2-1/2" SL IND HWHS | 10 |
| 9-6 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 9-7 | 12754 | O-ring segment | 1 |
| 9-8 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 9-9 | 12775A | 7/16-14 hex nut | 1 |
| 9-10 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 9-11 | 12901 | 5/16" flat washer | 4 |
| 9-12 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 9-13 | V07018 | 1/4" lockwasher | 10 |
| 9-14 | V07019 | 1/4-20 hex nut | 10 |
| 9-15 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
Parts and specifications per the Banjo Corporation parts drawing for the M225PO.
Details
| Part number | M225PO |
|---|---|
| Manufacturer | Banjo |
| SKU | BJM225PO |
| Catalogue description | 2" poly manifold pump only w/3/4" shaft & 5 vane impeller |
