Banjo
M225PO (B)
M225PO (B)
Regular price
$387.77 USD
Regular price
$646.28 USD
Sale price
$387.77 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

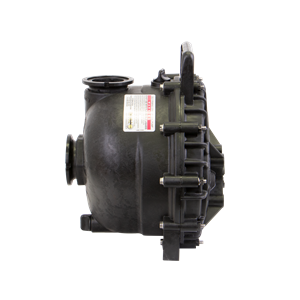

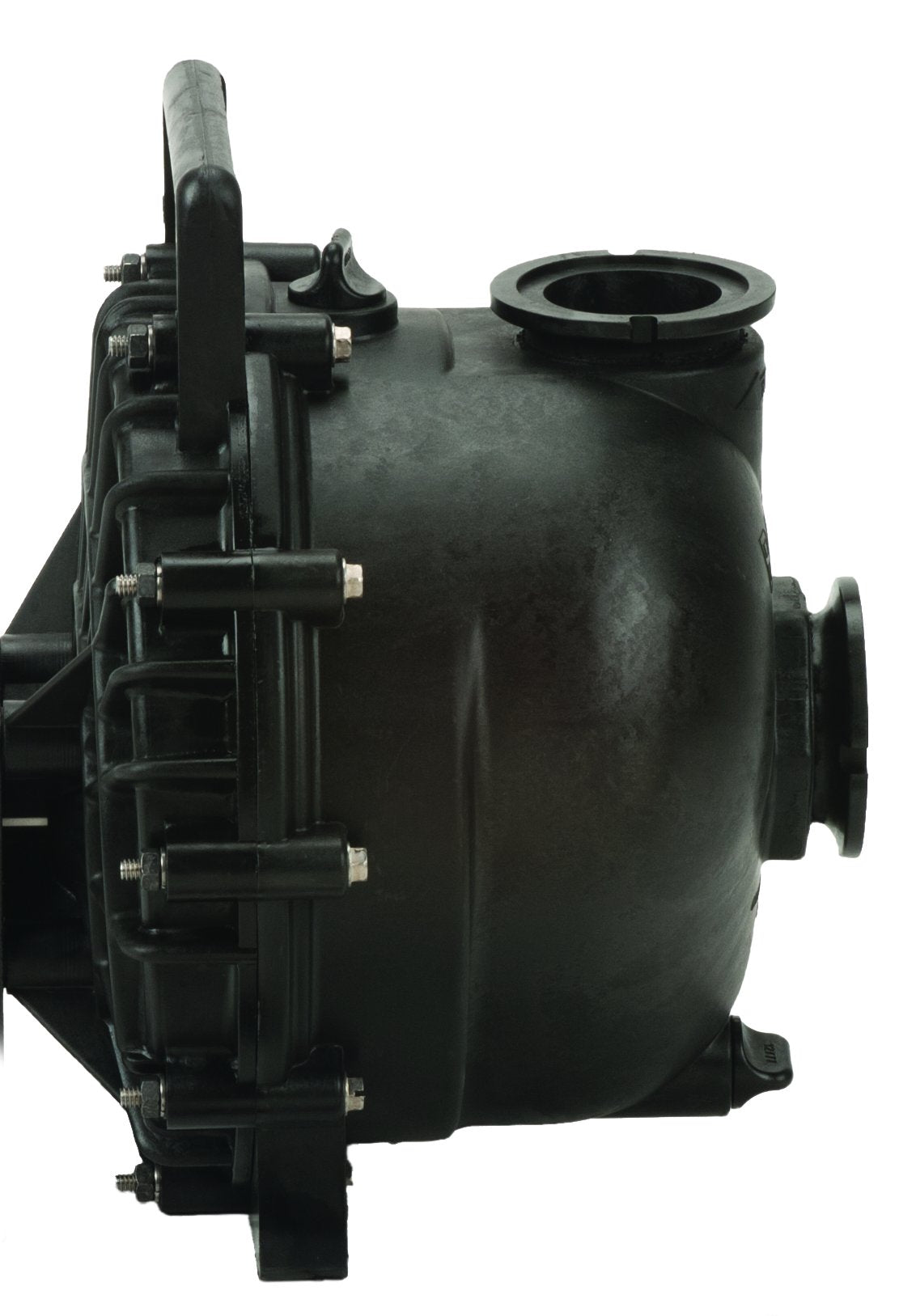

The M225PO is a Banjo self-priming centrifugal pump — polypropylene, manifold mount, 5 vane impeller, rated at 2" poly manifold pump only with 3/4" shaft and 5 vane impeller - obsolete.
Specifications
| Product title | 2" Poly Manifold Pump Only With 3/4" Shaft & 5 Vane Impeller |
|---|---|
| Type | Polypropylene Pumps |
| Style | Pump Only |
| Size | 2" |
| Shaft | 3/4" shaft |
| Impeller | 5 Vane Impeller |
| Mounting | Manifold (flanged) mount |
| Drive | Pump only - no engine or motor |
| Weight | 10.984 lbs |
| Status | Part obsolete, replaced by M220PO with added 5-vane impeller |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12702A | 2" poly pump volute | 1 |
| 2 | 12703A | Poly pump rear bracket | 1 |
| 3 | 12705 | Pump checkvalve, EPDM | 1 |
| 4 | 12716 | Pump slinger | 1 |
| 6 | 12772 | Impeller | 1 |
| 8 | M12712 | 2" manifold pump body assembly | 1 |
| 8-1 | 12777 | 1/2" drain plug | 2 |
| 8-3 | UV15163 | AS568A-114 o-ring, EPDM, brown | 2 |
| 9-1 | 12710 | AS568A-029 o-ring, EPDM | 1 |
| 9-2 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 9-3 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 9-4 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 9-5 | 12720 | 1/4-20 x 2-1/2" SL IND HWHS | 10 |
| 9-6 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 9-7 | 12754 | O-ring segment | 1 |
| 9-8 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 9-9 | 12775A | 7/16-14 hex nut | 1 |
| 9-10 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 9-11 | 12901 | 5/16" flat washer | 4 |
| 9-12 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 9-13 | V07018 | 1/4" lockwasher | 10 |
| 9-14 | V07019 | 1/4-20 hex nut | 10 |
| 9-15 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
Parts and specifications per the Banjo Corporation parts drawing for the M225PO.
