Banjo

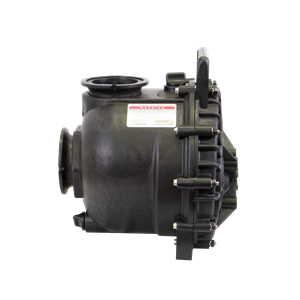

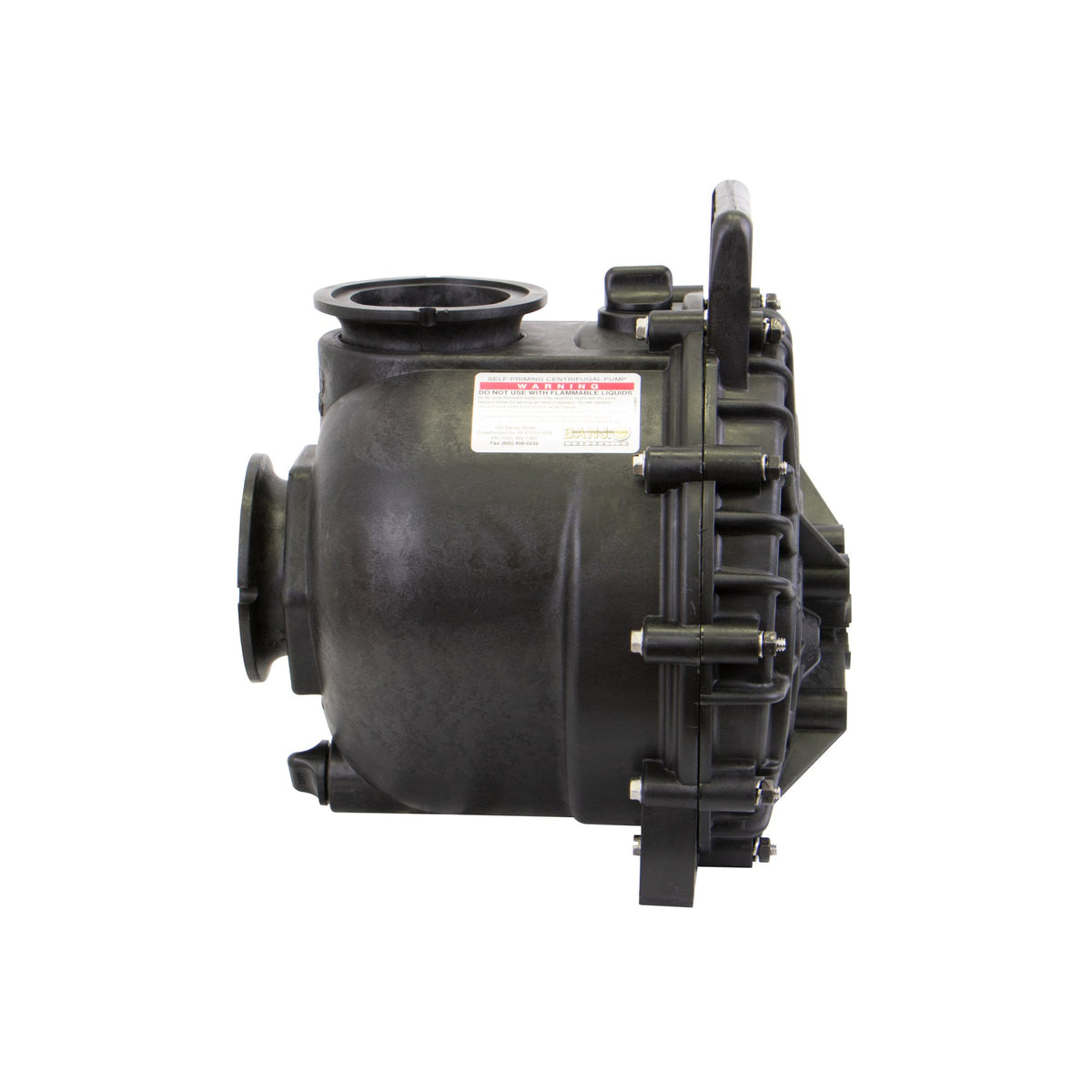

Banjo M300PO 3" Manifold Poly Centrifugal Pump End, 3/4" Shaft, Pump Only
Banjo M300PO 3" Manifold Poly Centrifugal Pump End, 3/4" Shaft, Pump Only
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Banjo M300PO is the 3" manifold-flange polypropylene self-priming centrifugal pump end with 3/4" shaft and 4-vane trimmed impeller, sold without a drive. It's the replacement pump for Banjo M300 series manifold pumps on large sprayers, nurse trailers and fertilizer tenders — the 300 series flange clamps straight into Banjo's no-thread manifold system, so swapping the pump end takes minutes, not an afternoon of fighting 3" pipe threads. Bolts to your existing gas engine, hydraulic motor or electric motor.
In stock at our Spokane, WA shop and ships same or next business day. Call us with your pump or engine model if you want to confirm fit before ordering.
What it's for
Water, liquid fertilizer and most crop-protection chemicals. Glass-filled polypropylene body and volute, EPDM check valve and o-rings, mechanical shaft seal. Not for petroleum products or solvents.
Specifications
| Part number | M300PO |
|---|---|
| Type | Polypropylene self-priming centrifugal pump |
| Style | Pump only — no engine or motor |
| Connection | 3" (300 series) manifold flange, inlet and outlet |
| Shaft | 3/4" |
| Impeller | 3" poly trimmed impeller, 4 vane (13771) |
| Seal | Mechanical seal (12713) |
| Elastomers | EPDM (check valve and o-rings) |
| Weight | 9.8 lbs |
Related parts
12713 mechanical seal, EPDM · 13771 3" 4.80" impeller · 12705 check valve · M301G 300 series manifold gasket · M300BRBSWP90 3" flange x hose barb sweep · M300FPT 3" flange x 3" FPT · MVS300CF 3" stubby manifold valve · 300PO 3" NPT pump end · M220PO 2" manifold pump end
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12703A | Poly pump rear bracket | 1 |
| 2 | 12705 | Pump checkvalve, EPDM | 1 |
| 3 | 12716 | Pump slinger | 1 |
| 6 | 13702 | 3" poly pump volute | 1 |
| 7 | 13771 | 3" poly pump trimmed impeller | 1 |
| 8 | M13712 | 3" manifold pump body assembly | 1 |
| 8-1 | 13777 | 3/4" drain plug | 2 |
| 8-2 | 13778 | AS568A-119 o-ring, EPDM, black | 2 |
| 9-1 | 12710 | AS568A-029 o-ring, EPDM | 1 |
| 9-2 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 9-3 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 9-4 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 9-5 | 12720 | 1/4-20 x 2-1/2" SL IND HWHS | 10 |
| 9-6 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 9-7 | 12754 | O-ring segment | 1 |
| 9-8 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 9-9 | 12775A | 7/16-14 hex nut | 1 |
| 9-10 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 9-11 | 12901 | 5/16" flat washer | 4 |
| 9-12 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 9-13 | V07018 | 1/4" lockwasher | 10 |
| 9-14 | V07019 | 1/4-20 hex nut | 10 |
| 9-15 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
Parts and specifications per the Banjo Corporation parts drawing for the M300PO.
Details
| Part number | M300PO |
|---|---|
| Manufacturer | Banjo |
| SKU | BJM300PO |
| Catalogue description | 3" poly manifold pump only |
