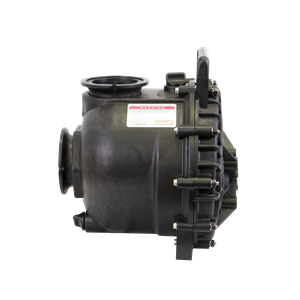

• Black M300PO pool pump housing with a reinforced bolted casing and top-mounted warning label on a white background.
1 1

Banjo

M300PO (B)

M300PO (B)

$500.59 USD
$834.31 USD $500.59 USD
Sale
Shipping calculated at checkout.
Title

The M300PO is a Banjo self-priming centrifugal pump — polypropylene, manifold mount, 4 vane trimmed impeller, rated at 3" poly manifold pump only with 3/4" shaft and 4 vane impeller.

Specifications

Drawing title 3" MANIFOLD POLY PUMP ONLY
Type Polypropylene Pumps
Style Pump Only
Size 3"
Volute Polypropylene, 3" poly pump volute
Pump body 3" manifold poly pump body
Impeller 3" poly pump trimmed impeller, 4 vane
Seal Mechanical seal
Elastomers EPDM (check valve and o-rings)
Shaft 3/4" shaft
Mounting Manifold (flanged) mount
Drive Pump only - no engine or motor
Weight 9.792 lbs

Service Parts

Ref. Part No. Description Qty
1 12703A Poly pump rear bracket 1
2 12705 Pump checkvalve, EPDM 1
3 12716 Pump slinger 1
6 13702 3" poly pump volute 1
7 13771 3" poly pump trimmed impeller 1
8 M13712 3" manifold pump body assembly 1
8-1 13777 3/4" drain plug 2
8-2 13778 AS568A-119 o-ring, EPDM, black 2
9-1 12710 AS568A-029 o-ring, EPDM 1
9-2 12715A 5/16-24 x 1-3/4" HHCS with Torq-Patch 4
9-3 12717 AS568A-011 o-ring, EPDM 4
9-4 12719A AS568A-375 o-ring, EPDM, black 1
9-5 12720 1/4-20 x 2-1/2" SL IND HWHS 10
9-6 12725 #6 x 1/2" PPH SMS 2
9-7 12754 O-ring segment 1
9-8 12765A 5/16-24 x 1-1/8" HFS 1
9-9 12775A 7/16-14 hex nut 1
9-10 12900 #10 x 1-1/2" PPH SMS 1
9-11 12901 5/16" flat washer 4
9-12 12902A 3/16" sq. x 5/8" key 1
9-13 V07018 1/4" lockwasher 10
9-14 V07019 1/4-20 hex nut 10
9-15 A204 AS568A-204 o-ring, EPDM, black 1

Parts and specifications per the Banjo Corporation parts drawing for the M300PO.
