Banjo

M300POW6 (B)

M300POW6 (B)

$827.72 USD
$1,379.54 USD $827.72 USD
Sale
Shipping calculated at checkout.
Title

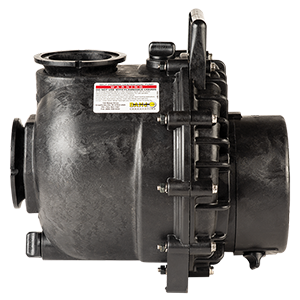

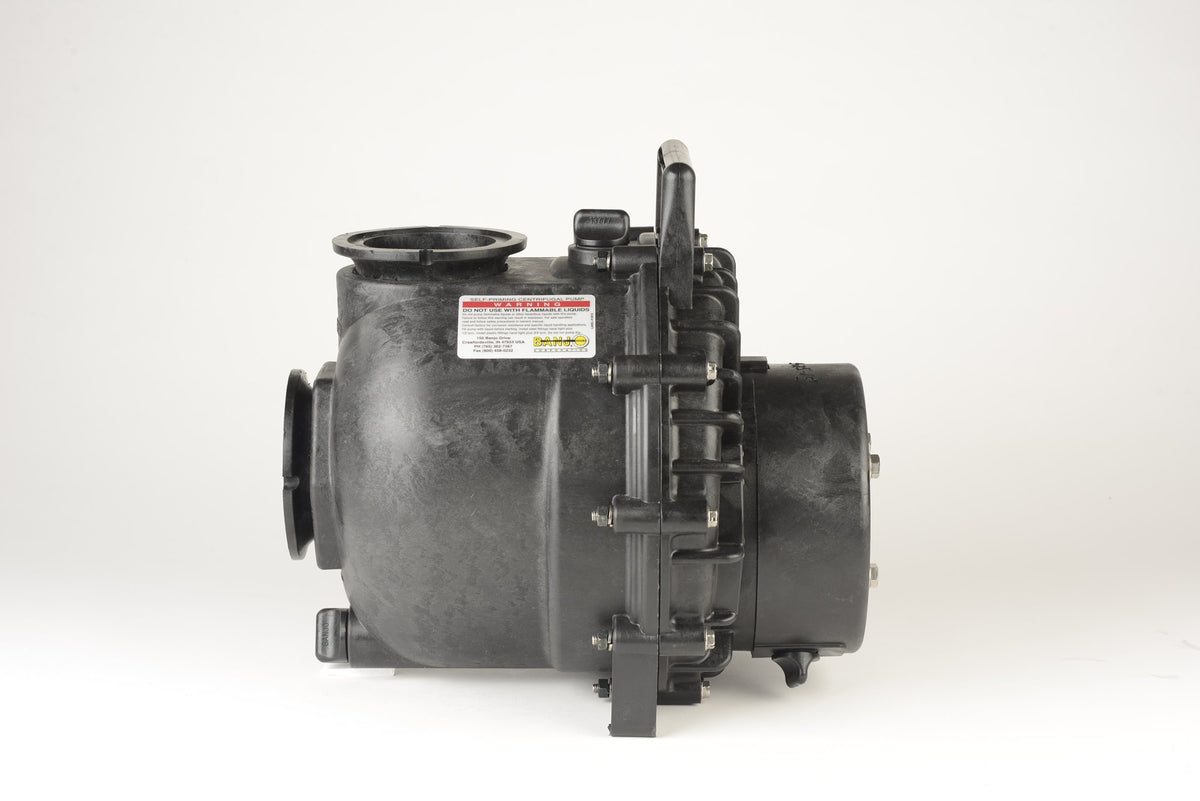

The M300POW6 is a Banjo self-priming centrifugal pump — polypropylene, manifold mount, wet seal, rated at 3" poly manifold wet seal pump only.

Specifications

Product title 3" POLY MANIFOLD WET SEAL PUMP ONLY
Type Polypropylene Pumps
Style Pump Only
Size 3"
Seal Wet seal
Mounting Manifold (flanged) mount
Drive Pump only - no engine or motor
Weight 16.24 lbs

Service Parts

Ref. Part No. Description Qty
1 12155 Adapter shaft 1
2 12202W 2" poly wet seal reservoir 1
3 12705 Pump checkvalve, EPDM 1
4 12707W 2" poly wet seal rear bracket 1
5 12709 AS568A-013 o-ring, EPDM, black 4
6 12717 AS568A-011 o-ring, EPDM 4
7 12719A AS568A-375 o-ring, EPDM, black 1
8 12720 1/4-20 x 2-1/2" SL IND hex washer head screw 10
9 12725 #6 x 1/2" PPH SMS 2
10 12754 O-ring segment 1
11 12766 5/16-24 x 3-1/4" HFS 1
12 12775A 7/16-14 hex nut 1
13 12777 1/2" drain plug 2
14 12900 #10 x 1-1/2" PPH SMS 1
15 12901 5/16" flat washer 4
16 12902A 3/16" sq. x 5/8" key 2
17 13034 5/16-24 x 3-1/2" HHCS 4
18 13702 3" poly pump volute 1
19 13719 AS568A-256 o-ring, EPDM, black 1
20 13771 3" poly pump impeller 4.80 OD 1
21 15035E Mechanical seal assembly, EPDM 1
22 A204 AS568A-204 o-ring, EPDM, black 1
23 CV10175 Gasket, EPDM 1
24 M13712 3" manifold pump body assembly 1
24-1 13777 3/4" drain plug, molded 2
24-2 13778 AS568A-119 o-ring, EPDM, black 2
25 UV15163 AS568A-114 o-ring, EPDM, black 2
26 V07018 1/4" lockwasher 10
27 V07019 1/4"-20 stainless hex nut 10

Parts and specifications per the Banjo Corporation parts drawing for the M300POW6.
