Banjo
M350POW (B)
M350POW (B)
Regular price
$869.32 USD
Regular price
$1,448.86 USD
Sale price
$869.32 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

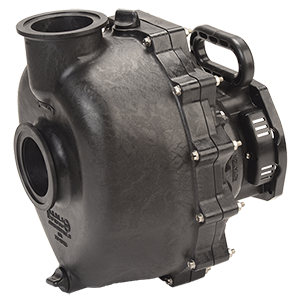

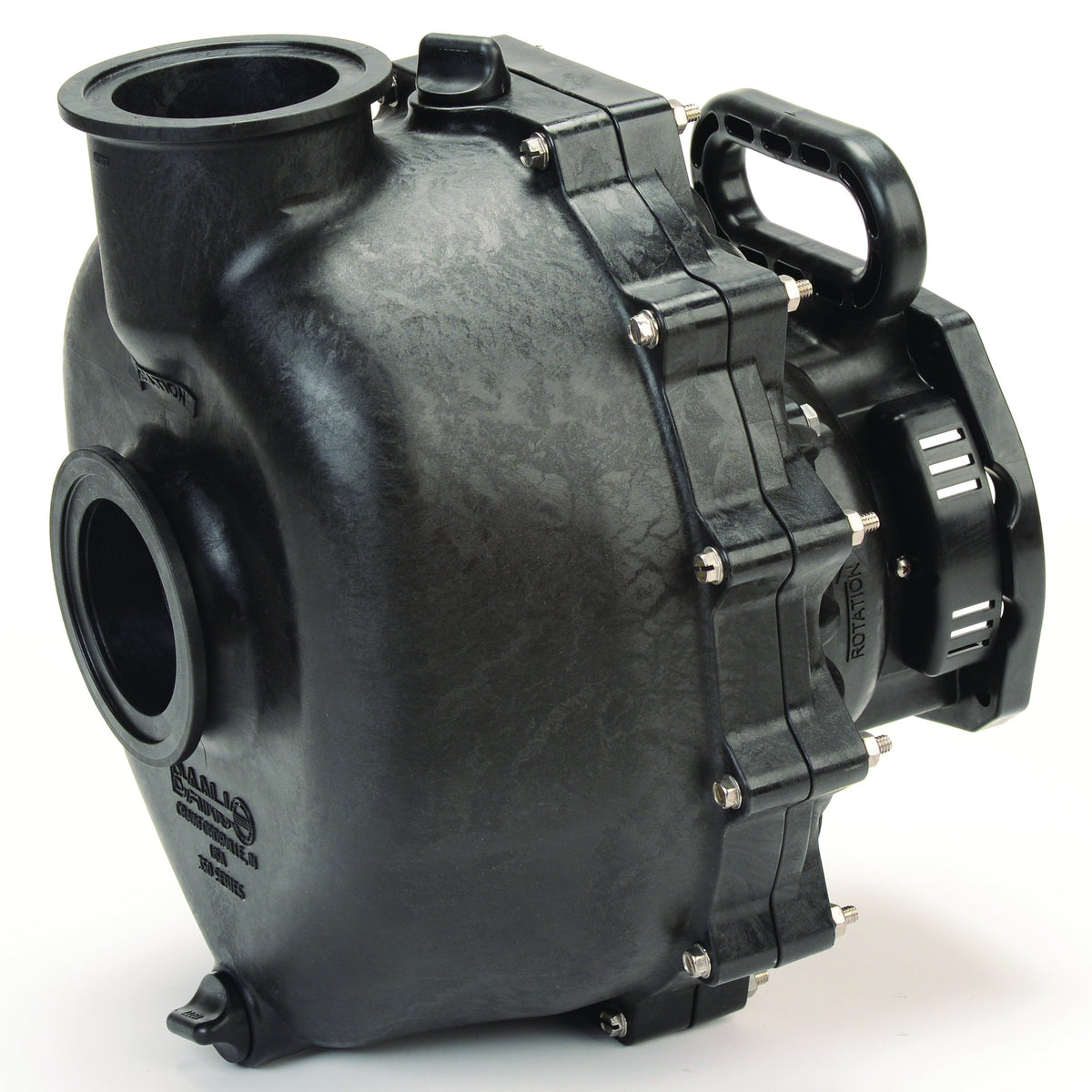

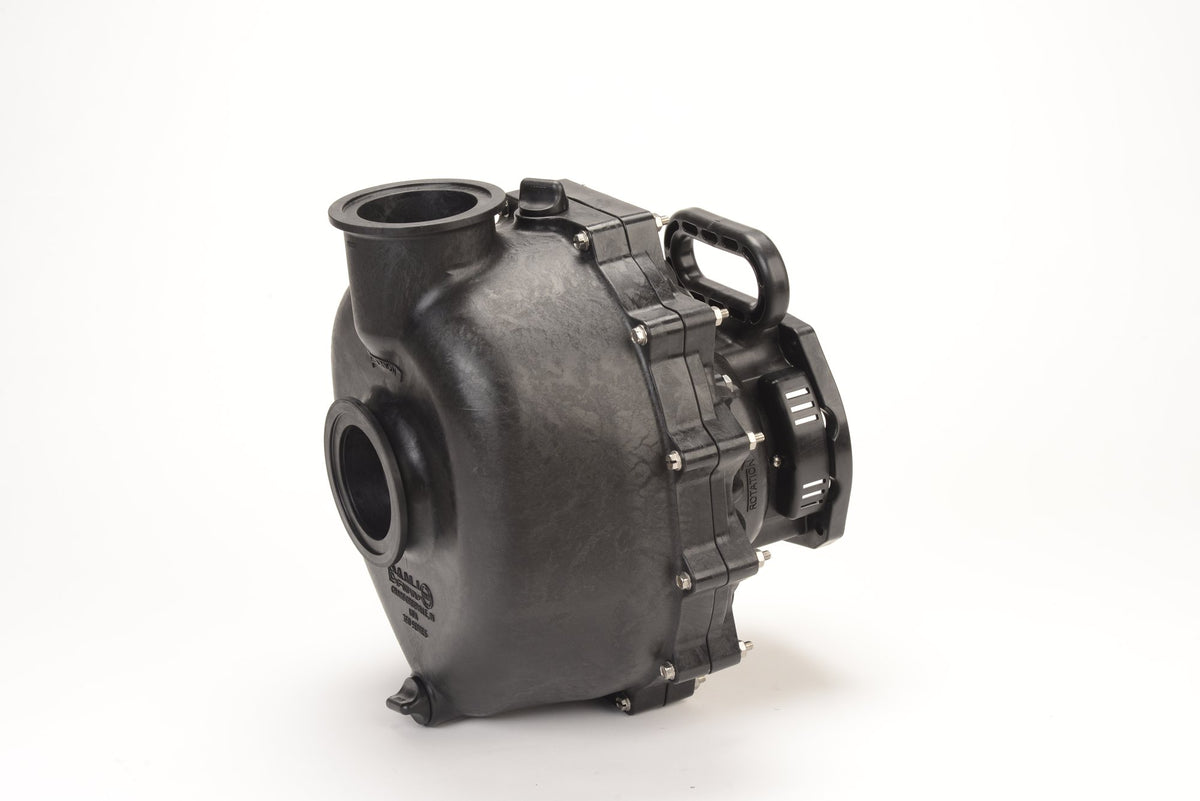

The M350POW is a Banjo self-priming centrifugal pump — polypropylene, tandem wet seal, rated at 3" wet seal poly pump only, 500+ GPM.
Specifications
| Product title | 3" WET SEAL POLY PUMP ONLY |
|---|---|
| Type | Polypropylene Pumps |
| Style | Wet Seal |
| Size | 3" |
| Max flow | 500+ gallons per minute |
| Seal | Tandem wet seal design, EPDM seals |
| Materials | Polymer components moulded from polypropylene; stainless steel hardware throughout |
| Drive | Pump only - no engine or motor |
| Weight | 17.1 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12720 | 1/4-20 x 2-1/2" SL IND hex washer head screw | 12 |
| 2 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 3 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 4 | 12775A | 7/16-14 hex nut | 1 |
| 5 | 12777 | 1/2" drain plug | 2 |
| 6 | 12901 | 5/16" flat washer | 8 |
| 7 | 13719 | AS568A-256 o-ring, EPDM, black | 1 |
| 8 | 13777 | 3/4" drain plug, molded | 2 |
| 9 | 13778 | AS568A-119 o-ring, EPDM, black | 2 |
| 11 | 18029 | Clamp | 1 |
| 13 | 35004 | M350 rear bracket | 1 |
| 17 | 35201 | M350 wet seal reservoir | 1 |
| 18 | 35246GL | Left shaft guard for M350P | 1 |
| 19 | 35246GR | Right shaft guard for M350P | 1 |
| 20 | 35248 | M350 engine spacer | 1 |
| 21 | 35255A | 3" wet seal poly pump shaft adapter for BEM15-100 | 1 |
| 23 | 35901 | 350 pump seal spacing tool | 1 |
| 26 | B1014150TS | #10 x 1-1/2 thread forming screw, 18-8 SS | 3 |
| 28 | M35012 | M350 manifold body | 1 |
| 29 | UV15163 | AS568A-114 o-ring, EPDM, black | 2 |
| 30 | V07018 | 1/4" lockwasher | 12 |
| 31 | V07019 | 1/4"-20 stainless hex nut | 12 |
| 32 | V10118 | 5/16" lockwasher | 8 |
| 33 | V10119 | 5/16"-18 stainless nut | 8 |
| 34 | V20018 | 3/8" lockwasher | 4 |
Parts and specifications per the Banjo Corporation parts drawing for the M350POW.
