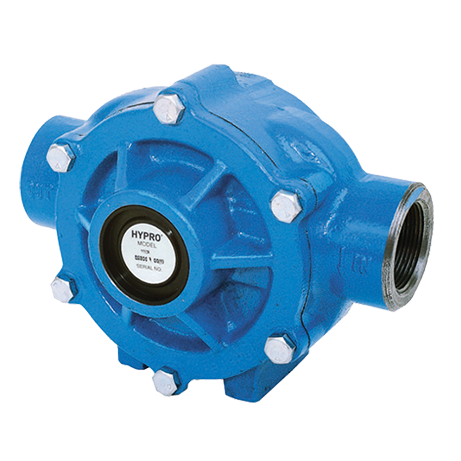

• Hypro 1502C blue cast iron centrifugal pump with threaded ports and bolt-secured housing.
1 1

Hypro

1502C

1502C

$678.38 USD
$1,130.63 USD $678.38 USD
Sale
Shipping calculated at checkout.
Title

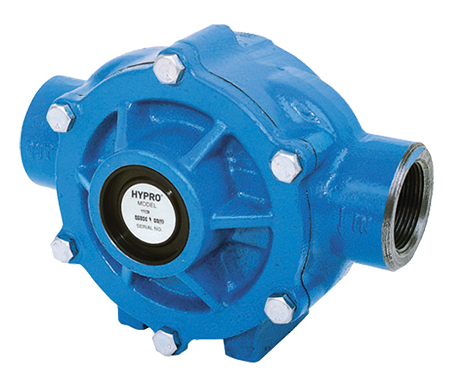

The 1502C is a Hypro 1500 series roller pump — cast iron, 6-roller, Super Rollers, rated at Up to 62.1 GPM and 200 PSI at 1000 RPM.

Specifications

Rollers 6
Max flow 62.1 GPM (235.1 LPM)
Max pressure 200 PSI (13.8 bar)
Max RPM 1000
Ports 1-1/2" NPT inlet & outlet
Shaft 15/16" dia. (solid)
Continuous operation 100 PSI (6.9 bar)
Intermittent operation 150 PSI (10.3 bar)
Dry weight 30 lbs (13.6 kg)
Mounting bolts 4 x 3/8-16 UNC
Max fluid temperature 140 F (60 C)
Flow at 540 RPM 33.1 GPM at 0 PSI; 24.3 GPM at 100 PSI; 21.0 GPM at 150 PSI
Flow at 1000 RPM 62.1 GPM at 0 PSI; 53.9 GPM at 100 PSI; 50.9 GPM at 150 PSI

Service Parts

Ref. Part No. Description Qty
1 2008-0001 Sealed Ball Bearing 2
2 2112-0001 Buna-N Seal (standard on cast iron) 2
3 2210-0026 Bolt (endplate) 6
5 1720-0003 O-ring Gasket for Endplate 1
6 0300-1502C Rotor (Cast Iron) with shaft, standard rotation 1
6A 0301-1502C Rotor (Cast Iron) with shaft, reverse rotation 1
7 1610-0005 Key 1
8 1005-0005 Super Roller (standard) 6
11 2300-0020 Bearing Cover 1
12 2300-0022 Shaft Bearing Cover 1

Repair Kits

Kit No. Description
3430-0386 Repair kit - 6 Super Rollers, 1 O-ring gasket, 2 Viton seals
3430-0387 Repair kit - 6 Super Rollers, 1 O-ring gasket, 2 Buna-N seals
3430-0406 Repair kit - 6 Super Rollers, 1 O-ring gasket, 2 Viton seals, 2 sealed ball bearings
3430-0162 Repair kit - 6 polypropylene rollers, 1 O-ring gasket
3430-0163 Repair kit - 6 polypropylene rollers, 1 O-ring gasket, 2 Buna-N seals
3430-0164 Repair kit - 6 polypropylene rollers, 1 O-ring gasket, 2 Viton seals
3430-0383 Universal repair kit - 6 Super Rollers, 2 O-ring gaskets, 2 Viton seals

Parts and specifications per Hypro manual L-1572 Rev. B.
