Hypro
2088-343-135
2088-343-135
Regular price
$156.07 USD
Regular price
$260.12 USD
Sale price
$156.07 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

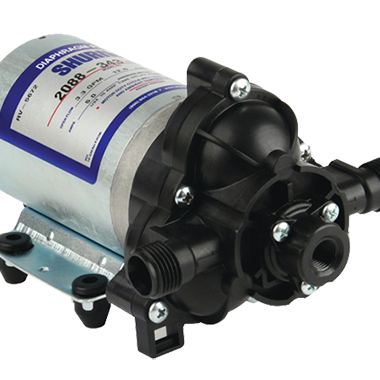

The 2088-343-135 is a Hypro/SHURflo 2088 series 12-volt diaphragm pump — automatic demand with a 45 PSI switch and Viton valves, for agricultural spraying and chemical injection.
Specifications
| Open flow | 3.0 GPM |
|---|---|
| Pressure switch | 45 PSI demand switch |
| Voltage | 12 VDC |
| Max draw | 7.7 amps |
| Ports | 1/2" MPT male |
| Diaphragm | Santoprene |
| Valves | Viton |
| Priming | Self-priming to 12 vertical ft (3.7 m) |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 94-236-11 | Complete Pumphead Assembly | 1 |
| 2 | 94-230-36 | Switch Assembly (45 PSI demand switch) | 1 |
| 3 | 94-237-05 | Check Valve Assembly | 1 |
| 4 | 94-231-30 | Upper Housing | 1 |
| 5 | 94-232-05 | Valve Assembly | 1 |
| 6 | 94-238-03 | Drive / Diaphragm Assembly | 1 |
| 8 | 94-231-05 | Upper Housing with Switch Assembly | 1 |
Parts and specifications per the Hypro/SHURflo Agriculture Products Catalog, Form 456-HYP.
