Hypro 3430-0332 Repair Kit for 9303 / 9306 Series Centrifugal Pumps – Seal, O-Ring & Gasket (Replaces 2120-0008)

Hypro 3430-0332 repair parts kit for Hypro 9303 and 9306 series hydraulic centrifugal pumps. It contains the mechanical seal, casing O-ring and rubber gasket: the three parts that wear and let a pump weep at the back cover or drip from the slinger. This is the standard annual rebuild kit for a sprayer pump.

Looking for the Hypro 2120-0008 mechanical seal? Hypro no longer sells the 2120-0008 on its own. This 3430-0332 kit is what you order now in its place.

In stock at our Spokane, WA shop. Pumping fertilizer or running the pump hard? Ask about the silicon carbide seal upgrade kit (3430-0589) instead. It outlasts the standard Viton/ceramic seal in abrasive service.

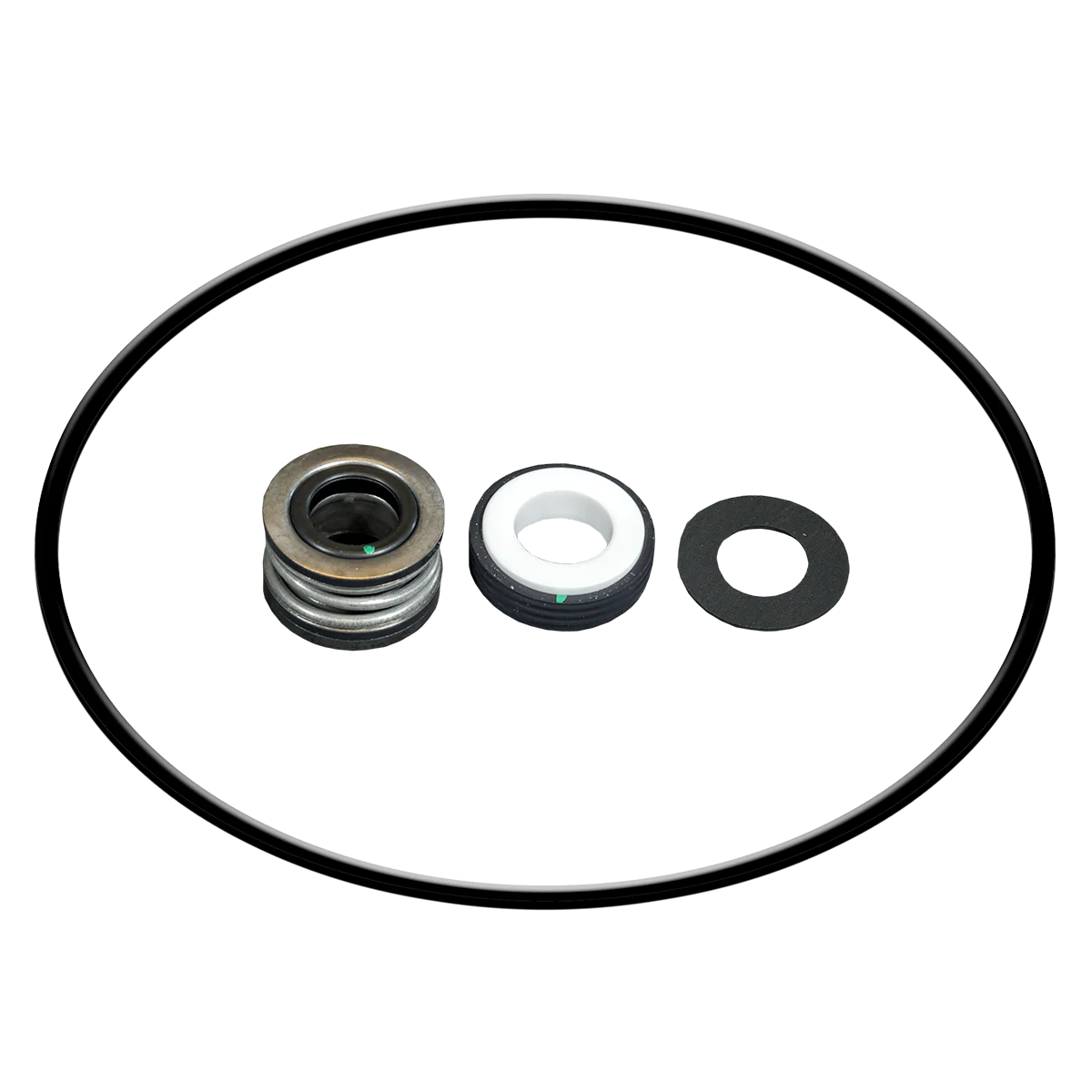

Kit contents

• Mechanical seal, Viton/ceramic (ref. 7)
• Casing O-ring (ref. 5), also sold as 1720-0083
• Rubber gasket (ref. 6), also sold as 1700-0100

Fits

• Hypro 9303C-HM1C, -HM2C, -HM3C, -HM4C, -HM5C and variants (-U, -B, -SP)
• Hypro 9306C-HM1C, -HM3C, -HM5C and variants (-U, -3U, -B)
• Hypro 9303P-HM1C, -HM2C, -HM4C, -HM5C and variants. Hypro's factory kit for the 9303P is 3430-0445; this kit works on the 9303P too.
• Viton/ceramic alternative for the stainless 9303S and 9306S (standard seal on those is 3430-0589)
• Hypro 9202C and 9203C cast iron pedestal pumps and variants (-R, -SP, -R-SP, -U)
• Viton/ceramic alternative for the stainless 9202S/9203S and Life Guard (-B) 9202C/9203C models
• Replacement for the discontinued Hypro 2120-0008 seal

Related parts

• Hydraulic motor seal kit: 3430-0881 (newer motors, about 2018 on) · 3430-0748 (older motors with a front seal cartridge)
• Impeller: 0401-9100P (9303C nylon) · 0402-9100P (9303P/9303S poly) · 0401-9200P2 (9306C nylon)

Details

Contents per Hypro parts breakdowns L-1594 and L-1596.
