Hypro
6500C-T3
6500C-T3
Regular price
$226.03 USD
Regular price
$376.72 USD
Sale price
$226.03 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

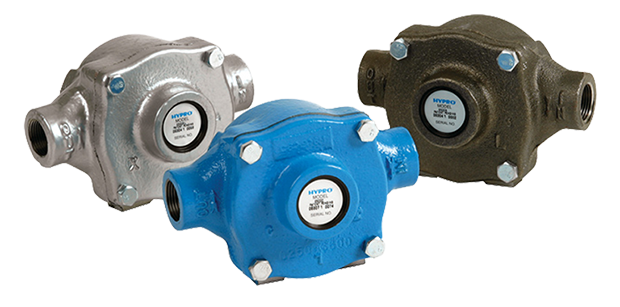

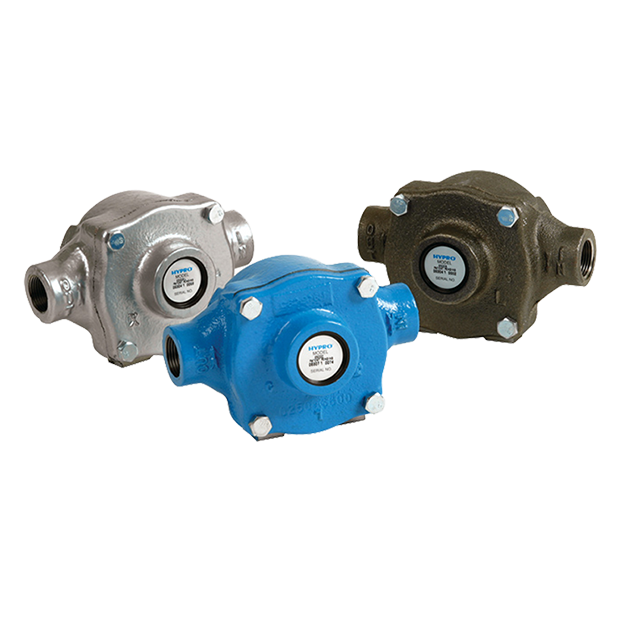

The 6500C-T3 is a Hypro 6500 series roller pump — cast iron, 6-roller, polypropylene rollers, rated at Up to 21.8 GPM and 300 PSI at 1200 RPM.
Specifications
| Rollers | 6, polypropylene |
|---|---|
| Max flow | 21.8 GPM (82.5 LPM) |
| Max pressure | 300 PSI (20.7 bar) |
| Max RPM | 1200 |
| Ports | 3/4" NPT inlet & outlet |
| Shaft | 5/8" dia. (solid) |
| Continuous operation | 100 PSI (6.9 bar) |
| Intermittent operation | 300 PSI (20.7 bar) |
| Dry weight | 9 lbs (4.1 kg) |
| Mounting bolts | 2 x 5/16-18 UNC |
| Seal material | Viton (standard) |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 2300-0021 | Bearing Cover | 1 |
| 2 | 2000-0010 | Sealed Ball Bearing | 2 |
| 3 | 2107-0002 | Viton Seal (standard) | 2 |
| 3 | 2102-0001 | Buna-N Seal (optional) | 2 |
| 3 | 2102-0001T | Teflon-coated Buna-N Seal (optional) | 2 |
| 4 | 2210-0004 | Bolts (endplate) | 4 |
| 5 | 0200-6600C | Endplate (Cast Iron) with Seal | 1 |
| 6 | 1720-0008 | O-ring Gasket for Endplate | 1 |
| 7 | 1002-0004 | Polypropylene Roller (fitted on -T3) | 6 |
| 8 | 3420-0023 | Base Kit (base, 2 bolts, 2 lock washers) - sold separately | 1 |
| 10 | 2300-0023 | Shaft Bearing Cover | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0175 | Repair kit (matches -T3 poly rollers) - six polypropylene rollers, one O-ring gasket, two Viton seals |
| 3430-0380 | Repair kit - six Super Rollers, one O-ring gasket, two Viton seals |
Parts and specifications per Hypro manual L-1572 Rev. B (IOM); L-0100R Rev. C (parts breakdown).
