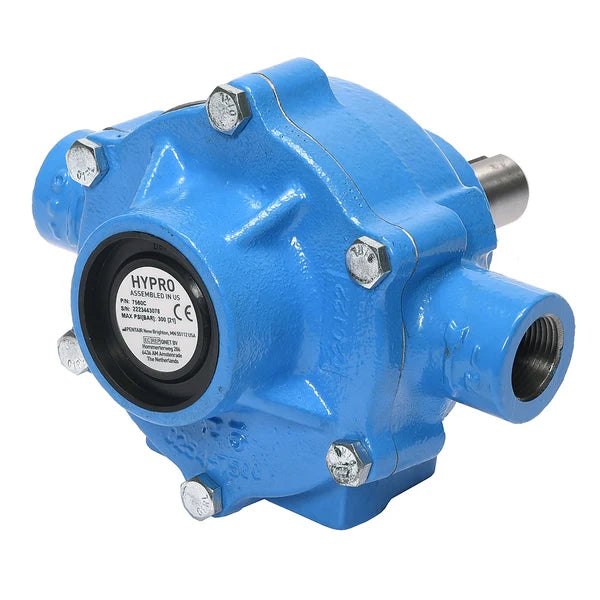

• Hypro 7560C 8-roller cast iron roller pump
1 1

Hypro

7560C Hypro 8-Roller Pump, Cast Iron & Repair Kits

7560C Hypro 8-Roller Pump, Cast Iron & Repair Kits

$277.82 USD
$463.04 USD $277.82 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: HY7560C — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “7560C Hypro 8-Roller Pump, Cast Iron & Repair Kits” — fitment, alternatives, or what else you need

The 7560C is a Hypro 7560 series roller pump — cast iron, 8-roller, Super Rollers, rated at Up to 22.5 GPM and 300 PSI at 1000 RPM.

Repair Kits for This Pump

If the pump... What to order
Has lost pressure or flow, or rollers are worn, chipped or swollen 3430-0381 roller repair kit (eight Super Rollers, endplate O-ring, 2 Viton seals). 3430-0167 is the same kit with polypropylene rollers.
Leaks or drips at the shaft Shaft seals - 2112-0003 Viton (standard) or 2112-0001 Buna-N, 2 per pump. Both seals are also in 3430-0381.
Leaks around the endplate 1720-0014 endplate O-ring (also included in 3430-0381).
Rotor slots are worn or the shaft is scored 0308-7560C rotor assembly (cast iron)

Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.

Specifications

Rollers 8
Max flow 22.5 GPM (85.2 LPM)
Max pressure 300 PSI (20.7 bar)
Max RPM 1000
Ports 3/4" NPT inlet & outlet
Shaft 15/16" dia. (solid)
Continuous operation 100 PSI (6.9 bar)
Intermittent operation 300 PSI (20.7 bar)
Dry weight 13 lbs (5.89 kg)
Mounting bolts 2 x 5/16-18 UNC
Seal material Viton (standard)
Flow at 540 RPM 12.0 GPM at 0 PSI; 10.3 GPM at 100 PSI; 7.1 GPM at 300 PSI
Flow at 1000 RPM 22.5 GPM at 0 PSI; 21.3 GPM at 100 PSI; 18.0 GPM at 300 PSI

Service Parts

Ref. Part No. Description Qty
1 2300-0020 Bearing Cover 1
2 2008-0001 Sealed Ball Bearing 2
3 2112-0003 Viton Seal (standard) 2
3 2112-0001 Buna-N Seal (optional) 2
4 2210-0004 Bolts (endplate) 6
5 0204-7500C Endplate (Cast Iron) with Seal 1
6 1720-0014 O-ring Gasket for Endplate 1
7 1005-0004 Super Roller (standard) 8
8 0308-7560C Rotor Assembly (Cast Iron) 1
10 3420-0003 Base Kit (base, 3 bolts, 3 washers) - sold separately 1
12 2300-0022 Shaft Bearing Cover 1
13 1610-0005 Key 1
13 1610-0059 Key (Stainless Steel) 1
14 A34100 3/4" MNPT x 1" Hose Barb 1

Repair Kits

Kit No. Description
3430-0381 Repair kit - eight Super Rollers, one O-ring, two Viton seals
3430-0167 Repair kit - eight polypropylene rollers, one O-ring, two Viton seals
3430-0377 Repair kit - eight Super Rollers, one O-ring, two Buna seals (per L-0174R)
3430-0376 Repair kit - eight Super Rollers, one O-ring (per L-0174R)
3430-0343 Repair kit (6500/7560/7700) - eight Super Rollers, two O-rings, four Viton seals (per L-0174R)

Parts and specifications per Hypro manual L-1572 Rev. B.
