Hypro
7560C-T3
7560C-T3
Regular price
$277.82 USD
Regular price
$463.04 USD
Sale price
$277.82 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

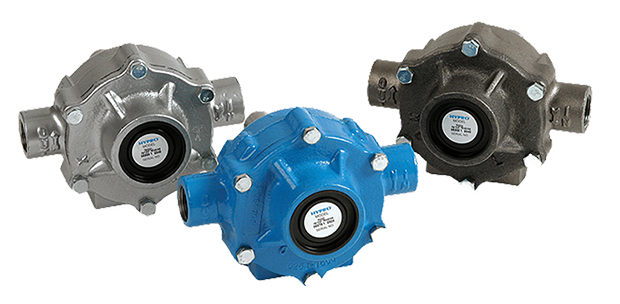

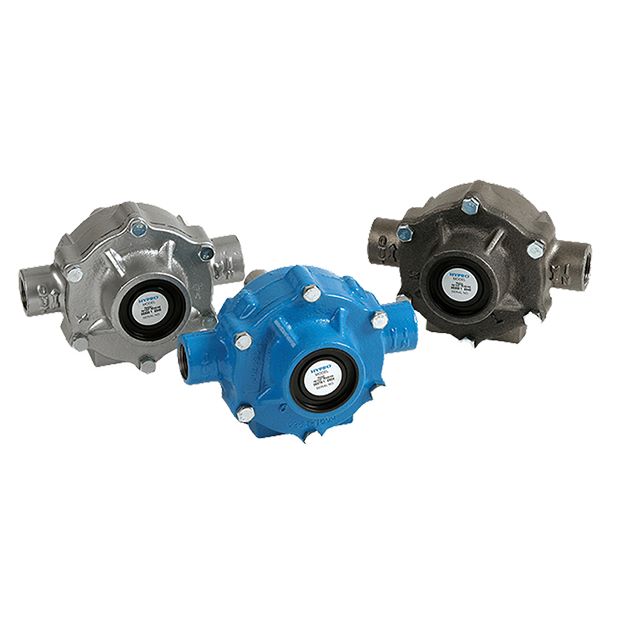

The 7560C-T3 is a Hypro 7560 series roller pump — cast iron, 8-roller, polypropylene rollers, rated at Up to 22.5 GPM and 300 PSI at 1000 RPM.
Specifications
| Rollers | 8, polypropylene |
|---|---|
| Max flow | 22.5 GPM (85.2 LPM) |
| Max pressure | 300 PSI (20.7 bar) |
| Max RPM | 1000 |
| Ports | 3/4" NPT inlet & outlet |
| Shaft | 15/16" dia. (solid) |
| Continuous operation | 100 PSI (6.9 bar) |
| Intermittent operation | 300 PSI (20.7 bar) |
| Dry weight | 13 lbs (5.89 kg) |
| Mounting bolts | 2 x 5/16-18 UNC |
| Seal material | Viton (standard) |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 2300-0020 | Bearing Cover | 1 |
| 2 | 2008-0001 | Sealed Ball Bearing | 2 |
| 3 | 2112-0003 | Viton Seal (standard) | 2 |
| 3 | 2112-0001 | Buna-N Seal (optional) | 2 |
| 4 | 2210-0004 | Bolts (endplate) | 6 |
| 5 | 0204-7500C | Endplate (Cast Iron) with Seal | 1 |
| 6 | 1720-0014 | O-ring Gasket for Endplate | 1 |
| 7 | 1002-0004 | Polypropylene Roller (fitted on -T3) | 8 |
| 8 | 0308-7560C | Rotor Assembly (Cast Iron) | 1 |
| 10 | 3420-0003 | Base Kit (base, 3 bolts, 3 washers) - sold separately | 1 |
| 12 | 2300-0022 | Shaft Bearing Cover | 1 |
| 13 | 1610-0005 | Key | 1 |
| 14 | A34100 | 3/4" MNPT x 1" Hose Barb | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0167 | Repair kit (matches -T3 poly rollers) - eight polypropylene rollers, one O-ring, two Viton seals |
| 3430-0381 | Repair kit - eight Super Rollers, one O-ring, two Viton seals |
Parts and specifications per Hypro manual L-1572 Rev. B.
