Hypro
9213P
9213P
Regular price
$884.02 USD
Regular price
$1,473.36 USD
Sale price
$884.02 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

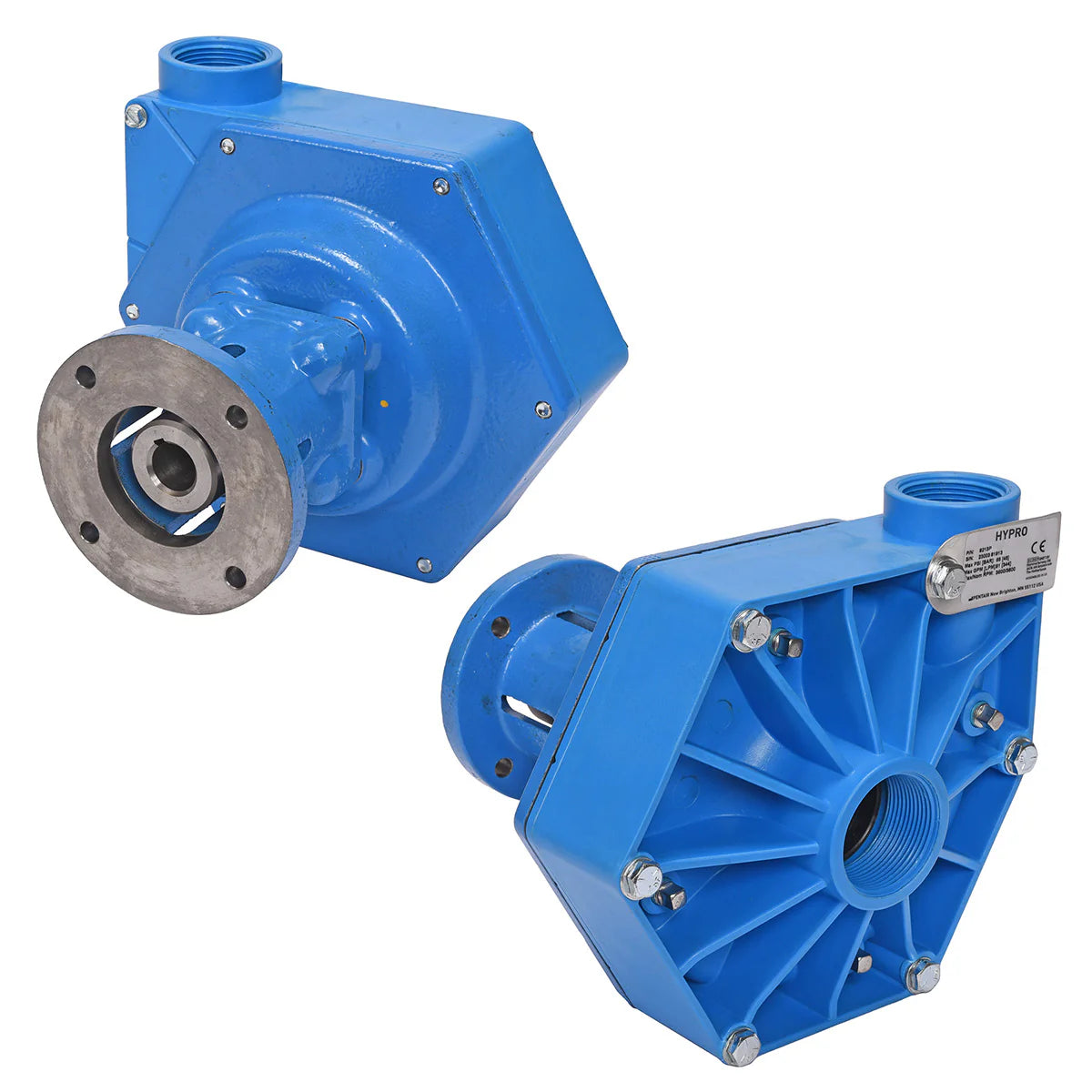

The 9213P is a Hypro 9200 series centrifugal pump — polypropylene, flange mounted, hollow keyed shaft, rated at 91 GPM and 65 PSI at 3600 RPM.
Specifications
| Max flow | 91 GPM (344.5 l/min) |
|---|---|
| Max pressure | 65 PSI (4.5 bar) |
| Max speed | 3600 RPM |
| Inlet port | 1-1/2" NPT |
| Outlet port | 1-1/4" NPT |
| Drive | Shaft driver, 3/4" hollow keyed stainless steel shaft |
| Dry weight | 19 lbs (8.6 kg) |
| Mounting bolts | 3/8" or M10 |
| Housing material | Polypropylene |
| Seal | Ceramic Silicon Carbide |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 0700-9000P | Pump Casting | 1 |
| 2 | 0403-9000P | Impeller | 1 |
| 3 | 1700-0101 | Gasket | 1 |
| 4 | 3430-0333 | Mechanical Seal | 1 |
| 4A | 3430-0590 | Mechanical Seal (silicon carbide) | 1 |
| 5 | 1721-0083 | O-Ring | 1 |
| 6 | 0750-9000P | Back Cover | 1 |
| 7 | 1410-0083 | Slinger Ring | 1 |
| 8 | 0702-9200C | Flange | 1 |
| 9 | 2008-0001 | Bearing | 2 |
| 11 | 3430-0846 | Shaft (316 Stainless Steel) | 1 |
| 12 | 1820-0025 | Retaining ring | 1 |
| 14 | 2300-0034 | Plastic Cap | 1 |
| 15 | 2406-0016 | Plug | 4 |
| 16 | 2210-0087 | Hex Head Bolt | 6 |
| 17 | 2270-0041 | Washer | 6 |
| 18 | 2250-0051 | Jam Nut | 1 |
| 19 | 2270-0057 | Washer | 1 |
| 20 | 1700-0097 | Gasket | 1 |
| 21 | 2250-0052 | Impeller Nut | 1 |
| 22 | 2210-0088 | Screw | 1 |
| 23 | 1610-0004 | KEY | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0333 | Seal Kit (9203P/9213P) - gasket (ref 3), mechanical seal (ref 4), o-ring (ref 5), washer (ref 19), gasket (ref 20) |
| 3430-0590 | Silicon Carbide Seal Kit (9203P/9213P) - mechanical seal (ref 4), o-ring (ref 5), washer (ref 19), gasket (ref 20) |
Parts and specifications per Hypro manual L-1555 Rev. C.
