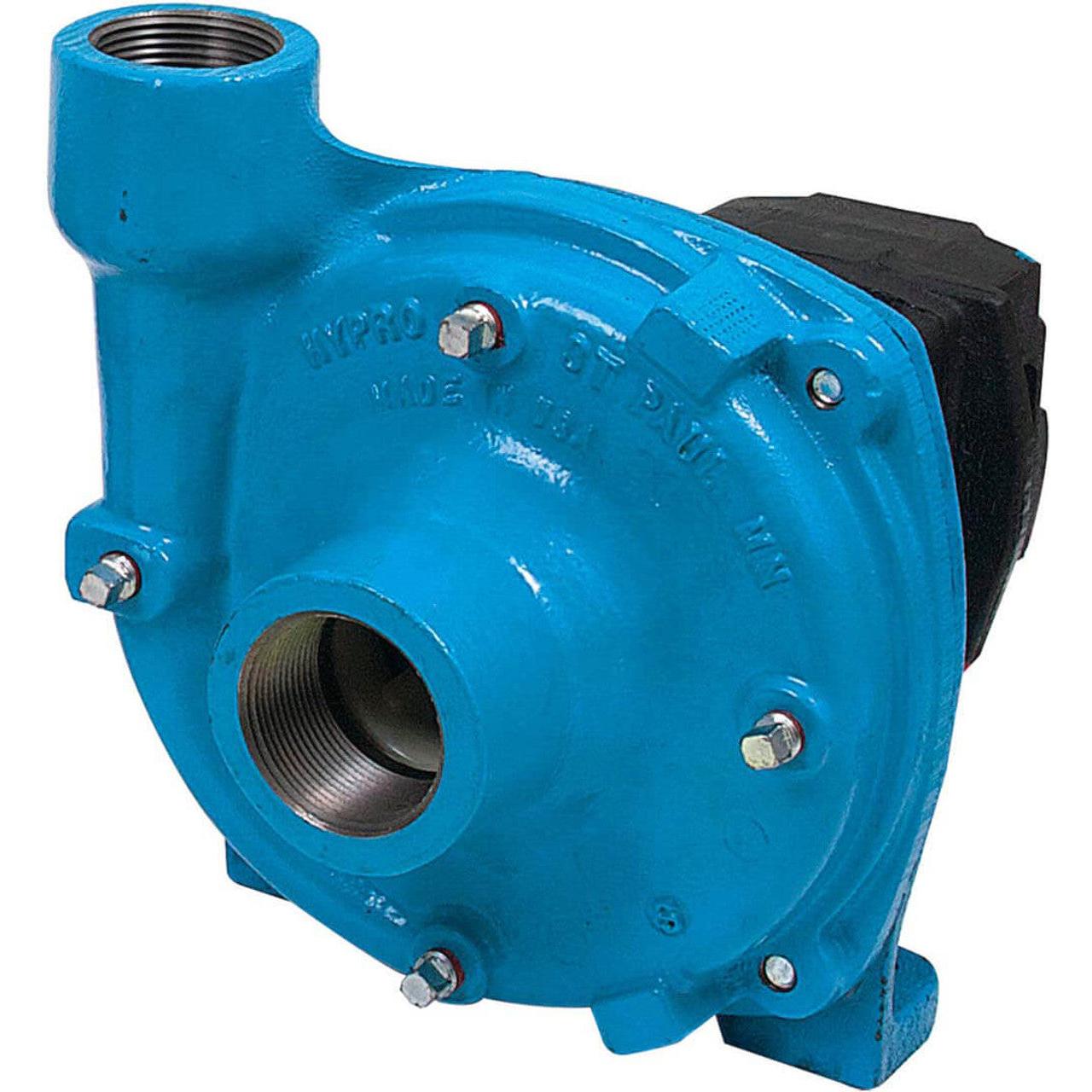

The 9303C-HM1C is a Hypro 9303 series centrifugal pump — cast iron, hydraulic motor driven (HM1C), rated at 114 GPM and 130 PSI on 13 GPM hydraulic flow.
Specifications
| Max flow | 114 GPM (431.5 l/min) |
|---|---|
| Max pressure | 130 PSI (9 bar) |
| Max hydraulic flow | 13 GPM (49.2 l/min) |
| Max hydraulic pressure | 3000 PSI (206.8 bar) |
| Inlet port | 1-1/2" NPT |
| Outlet port | 1-1/4" NPT |
| Hydraulic inlet port | 1/2" NPT |
| Hydraulic outlet port | 3/4" NPT |
| Dry weight | 26 lbs (11.8 kg) |
| Mounting bolts | 2X 3/8" or M10 |
| Housing material | Cast iron |
| Impeller material | Nylon (standard) |
| Seal | Viton/Ceramic |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1B | 2406-0001 | Vent Plug | 4 |
| 2 | 0150-9000C | Pump Casing (Model 9303C) | 1 |
| 3 | 3430-0825 | Impeller Nut | 1 |
| 4 | 0401-9100P | Impeller (Nylon Std. 9303C) | 1 |
| 5 | 1720-0083 | O-ring | 1 |
| 6 | 1700-0100 | Gasket | 1 |
| 8 | 0750-9300C | Mounting Flange | 1 |
| 9 | 2210-0020 | Hex Head Cap Screw | 4 |
| 10 | 1410-0056 | Slinger Ring | 1 |
| 11 | 1810-0014 | Snap Ring | 1 |
| 12 | 1820-0013 | Retaining Ring | 1 |
| 13 | 2000-0010 | Ball Bearing | 1 |
| 14 | 1410-0131 | Cartridge, Front | 1 |
| 15 | 1720-0268 | O-ring | 2 |
| 16 | 3430-0748 | Lip Seal | 1 |
| 17 | 1410-0130 | Seal Spacer | 1 |
| 18 | 2029-0014 | Thrust Bearing Assembly | 1 |
| 19 | 3430-0852 | Shaft (HM1C/HM5C) | 1 |
| 20 | 0150-2500C | Motor Body (includes needle bearing) | 1 |
| 21 | 2210-0005 | Hex Head Cap Screw | 4 |
| 22 | 1720-0110 | O-ring | 2 |
| 23 | 1600-0044 | Dowel Pin (HM1C/HM5C) | 1 |
| 24 | 1600-0037 | Dowel Pin (HM1C/HM5C) | 1 |
| 25 | 3900-0022 | Gerotor (HM1C) | 1 |
| 26 | 0700-2500C1 | Gerotor Housing (HM1C Models) 1/2" wide | 1 |
| 27 | 0254-2500C2 | Motor End Plate (includes needle bearing) | 1 |
| 28 | 2270-0039 | Washer | 4 |
| 29 | 2220-0021 | Cap Screw (HM1C Models) | 4 |
| 30 | 1720-0108 | O-ring | 1 |
| 31 | 3360-0021A | Pressure Port Adapter (includes o-ring) | 1 |
| 33 | 3320-0051A | Tank Port Adapter (includes o-ring) | 1 |
| 34 | 3220-0029 | Bypass Adjusting Screw | 1 |
| 35 | 1700-0047 | Gasket | 1 |
| 36 | 2270-0027 | Washer | 1 |
| 37 | 2250-0038 | Lock Nut | 1 |
| 38 | 1610-0031 | Roll Pin (HM1C/HM5C) | 1 |
| 39 | 1810-0026 | Snap Ring | 1 |
| 40 | 1610-0012 | Woodruff Key (9303C) | 1 |
| 2500-0081C | Hydraulic Motor (HM1C Models), complete | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0332 | Repair Parts Kit - one mechanical seal (ref 7), one o-ring (ref 5), one rubber gasket (ref 6) |
| 3430-0589 | Silicon Carbide Seal Kit - mechanical seal (ref 7) and o-ring (ref 5) |
| 3430-0748 | Parts Kit - ball bearing (ref 13), motor shaft seal (ref 16), thread seal gasket (ref 35), two cartridge o-rings (ref 15), washer (ref 36), two motor housing o-rings (ref 22), port adapter o-rings (ref 30 and 32) |
| 3430-0480SP | SP Chamber Kit - one chamber with wear ring (ref 2), one o-ring (ref 5), one drain vent plug (ref 1), one vent plug (ref 1A) |
Parts and specifications per Hypro manual L-1547 Rev. B.
