Hypro
9303P-HM4C
9303P-HM4C
Regular price
$1,188.80 USD
Regular price
$1,981.33 USD
Sale price
$1,188.80 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

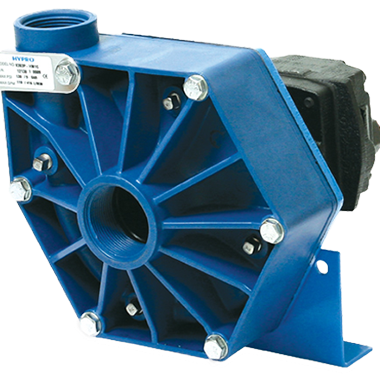

The 9303P-HM4C is a Hypro 9303P series hydraulic motor-driven centrifugal pump — polypropylene casing and impeller with an HM4C hydraulic motor, rated at 82 GPM and 84 PSI.
Specifications
| Max flow | 82 GPM (310.4 l/min) |
|---|---|
| Max pressure | 84 PSI (5.8 bar) |
| Max hydraulic flow | 7 GPM (26.5 l/min) |
| Inlet | 1-1/2" NPT |
| Outlet | 1-1/4" NPT |
| Hydraulic ports | 1/2" NPT inlet, 3/4" NPT outlet |
| Housing / impeller | Polypropylene |
| Dry weight | 21 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 2210-0087 | Hex Head Cap Screw | 4 |
| 2 | 2210-0016 | Hex Head Cap Screw (Base Only) | 2 |
| 3 | 2270-0041 | Washer | 6 |
| 5 | 0700-9000P | Pump Casing | 1 |
| 6 | 2250-0052 | Impeller Nut | 1 |
| 7 | 2250-0051 | Jam Nut | 1 |
| 8 | 1700-0097 | Gasket (Viton) | 1 |
| 9 | 2270-0057 | Washer | 1 |
| 10 | 0402-9100P | Impeller | 1 |
| 11 | 1700-0100 | Rubber Gasket | 1 |
| 12 | 3430-0593 | Mechanical Seal (Silicon Carbide) - optional | 1 |
| 13 | 1721-0083 | O-ring | 1 |
| 14 | 0750-9300P | Cover | 1 |
| 15 | 2210-0088 | Screw | 1 |
| 16 | 0750-9006C | Intermediate Flange | 1 |
| 17 | 1510-0063 | Base Plate | 1 |
| 18 | 2250-0008 | Hex Nut | 2 |
| 19 | 1410-0056 | Slinger Ring | 1 |
| 20 | 1810-0014 | Snap Ring | 1 |
| 21 | 1820-0013 | Retaining Ring | 1 |
| 22 | 2000-0010 | Ball Bearing | 1 |
| 23 | 1410-0131 | Cartridge, Front | 1 |
| 24 | 1720-0268 | O-ring | 2 |
| 26 | 1410-0130 | Seal Spacer | 1 |
| 27 | 2029-0014 | Thrust Bearing Assembly | 1 |
| 29 | 3430-0850 | Shaft (HM2C/HM4C) | 1 |
| 30 | 1810-0026 | Snap Ring | 1 |
| 31 | 1610-0032 | Roll Pin (HM2C/HM4C) | 1 |
| 32 | 0150-2500C | Motor Body (includes needle bearing) | 1 |
| 33 | 2210-0021 | Hex Head Cap Screw | 4 |
| 34 | 1720-0110 | O-ring | 2 |
| 35 | 1600-0045 | Dowel Pin (HM2C/HM4C) | 1 |
| 36 | 1600-0042 | Dowel Pin (HM2C/HM4C) | 1 |
| 37 | 3900-0025 | Gerotor (HM4C) | 1 |
| 38 | 0703-2500C1 | Gerotor Housing (HM4C) 5/16 in wide | 1 |
| 39 | 0254-2500C2 | Motor End Plate (includes needle bearing) | 1 |
| 40 | 2270-0039 | Washer | 4 |
| 41 | 2220-0045 | Cap Screw (HM2C/HM4C) | 4 |
| 42 | 1720-0108 | O-ring | 1 |
| 43 | 3360-0021A | Pressure Port Adapter (includes o-ring) | 1 |
| 44 | 3320-0051A | Tank Port Adapter (includes o-ring) | 1 |
| 46 | 3220-0029 | Bypass Adjusting Screw | 1 |
| 47 | 1700-0047 | Gasket | 1 |
| 48 | 2270-0027 | Washer | 1 |
| 49 | 2250-0038 | Lock Nut | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0445 | 9303P repair parts kit — o-ring, rubber gasket, mechanical seal, gasket, washer |
| 3430-0748 | 9303P parts kit — ball bearing, motor shaft seal, thread seal gasket, washer, cartridge and housing o-rings |
| 3430-0187 | Adapter kit — HM2C / HM4C models |
Parts and specifications per Hypro manual L-1547 (Series 9303 Centrifugal Pumps).
