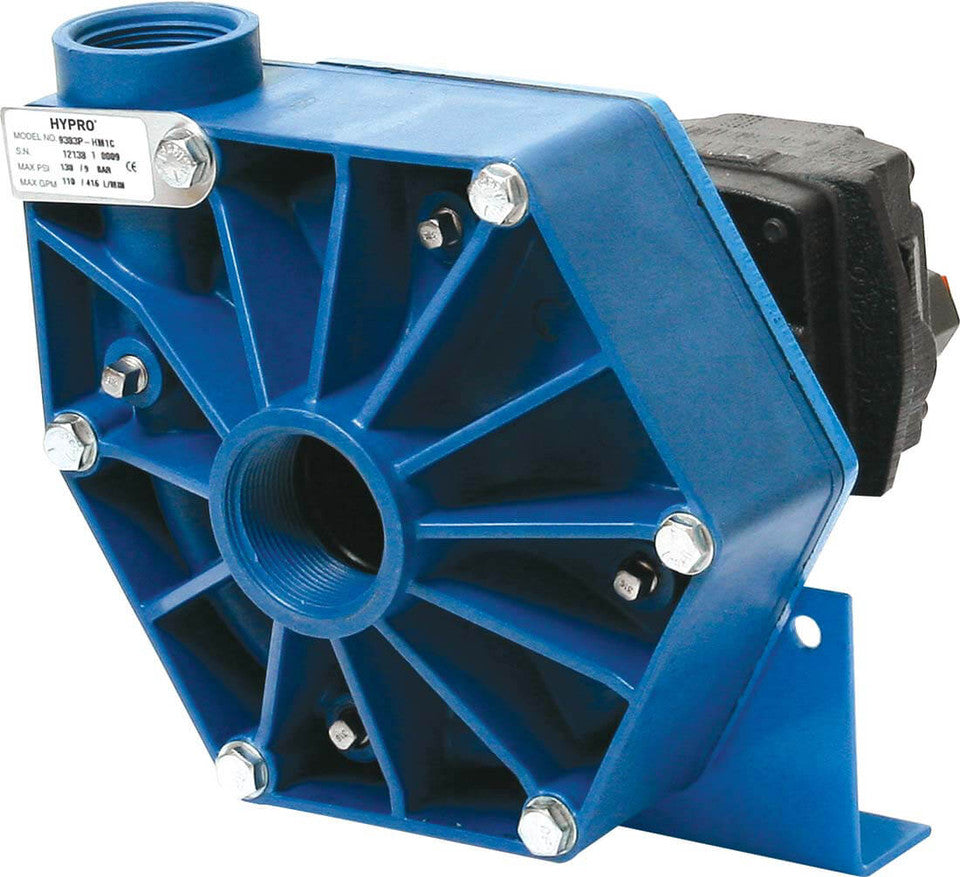

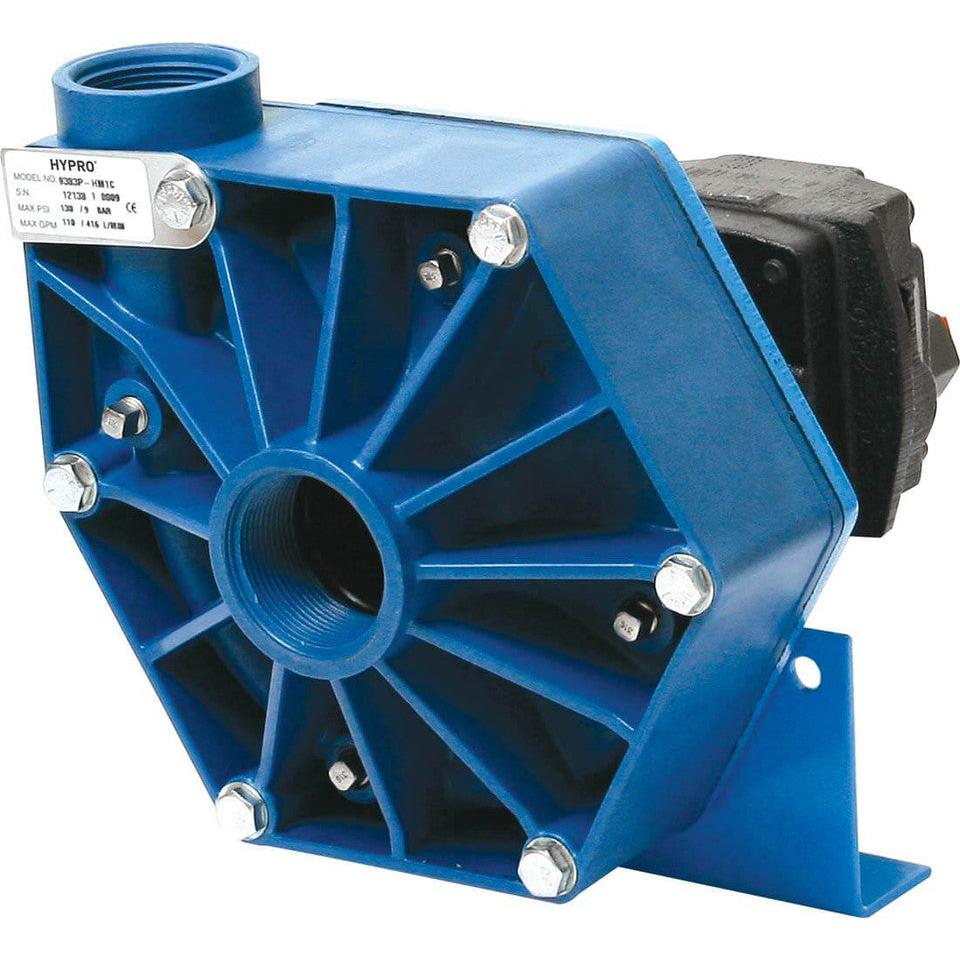

The 9303P-HM5C is a Hypro 9303 series centrifugal pump — polypropylene, hydraulic motor driven (HM5C), rated at 113 GPM and 120 PSI, polypropylene wet end.
Specifications
| Max flow | 113 GPM (427.7 l/min) |
|---|---|
| Max pressure | 120 PSI (8.2 bar) |
| Max hydraulic pressure | 3000 PSI (206.8 bar) |
| Inlet port | 1-1/2" NPT |
| Outlet port | 1-1/4" NPT |
| Hydraulic inlet port | 1/2" NPT |
| Hydraulic outlet port | 3/4" NPT |
| Dry weight | 21 lbs (9.5 kg) |
| Mounting bolts | 4X 3/8" or M10 |
| Housing material | Polypropylene |
| Impeller material | Polypropylene |
| Seal | Viton/Ceramic standard, Silicon Carbide optional |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 2210-0087 | Hex Head Cap Screw | 4 |
| 2 | 2210-0016 | Hex Head Cap Screw (Base Only) | 2 |
| 3 | 2270-0041 | Washer | 6 |
| 5 | 0700-9000P | Pump Casing | 1 |
| 6 | 2250-0052 | Impeller Nut | 1 |
| 7 | 2250-0051 | Jam Nut | 1 |
| 8 | 1700-0097 | Gasket (Viton) | 1 |
| 9 | 2270-0057 | Washer | 1 |
| 10 | 0402-9100P | Impeller | 1 |
| 11 | 1700-0100 | Rubber Gasket | 1 |
| 12 | 3430-0593 | Mechanical Seal (Silicon Carbide) (Optional) | 1 |
| 13 | 1721-0083 | O-ring | 1 |
| 14 | 0750-9300P | Cover | 1 |
| 15 | 2210-0088 | Screw | 1 |
| 16 | 0750-9006C | Intermediate Flange | 1 |
| 17 | 1510-0063 | Base Plate | 1 |
| 18 | 2250-0008 | Hex Nut | 2 |
| 19 | 1410-0056 | Slinger Ring | 1 |
| 20 | 1810-0014 | Snap Ring | 1 |
| 21 | 1820-0013 | Retaining Ring | 1 |
| 22 | 2000-0010 | Ball Bearing | 1 |
| 23 | 1410-0131 | Cartridge, Front | 1 |
| 24 | 1720-0268 | O-ring | 2 |
| 26 | 1410-0130 | Seal Spacer | 1 |
| 27 | 2029-0014 | Thrust Bearing Assembly | 1 |
| 29 | 3430-0852 | Shaft (HM1C/HM5C) | 1 |
| 30 | 1810-0026 | Snap Ring | 1 |
| 31 | 1610-0031 | Roll Pin (HM1C / HM5C) | 1 |
| 32 | 0150-2500C | Motor Body (includes needle bearing) | 1 |
| 33 | 2210-0021 | Hex Head Cap Screw | 4 |
| 34 | 1720-0110 | O-ring | 2 |
| 35 | 1600-0044 | Dowel Pin (HM1C/HM5C) | 1 |
| 36 | 1600-0037 | Dowel Pin (HM1C/HM5C) | 1 |
| 37 | 3900-0048 | Gerotor (HM5C) | 1 |
| 38 | 0704-2500C1 | Gerotor Housing (HM5C Models) 5/8" wide | 1 |
| 39 | 0254-2500C2 | Motor End Plate (includes needle bearing) | 1 |
| 40 | 2270-0039 | Washer | 4 |
| 41 | 2220-0032 | Cap Screw (HM5C Models) | 4 |
| 42 | 1720-0108 | O-ring | 1 |
| 43 | 3360-0021A | Pressure Port Adapter (includes o-ring) | 1 |
| 44 | 3320-0051A | Tank Port Adapter (includes o-ring) | 1 |
| 46 | 3220-0029 | Bypass Adjusting Screw | 1 |
| 47 | 1700-0047 | Gasket | 1 |
| 48 | 2270-0027 | Washer | 1 |
| 49 | 2250-0038 | Lock Nut | 1 |
| 2500-0185C | Hydraulic Motor (HM5C Models), complete | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| 3430-0445 | Repair Parts Kit - o-ring (ref 13), rubber gasket (ref 11), mechanical seal (ref 12), gasket (ref 8), washer (ref 9) |
| 3430-0593 | Silicon Seal Parts Kit - mechanical seal (ref 12) and o-ring (ref 13) |
| 3430-0748 | Parts Kit - ball bearing (ref 22), motor shaft seal (ref 25), thread seal gasket (ref 47), two cartridge o-rings (ref 24), washer (ref 48), two motor housing o-rings (ref 34), port adapter o-rings (ref 42 and 45) |
Parts and specifications per Hypro manual L-1547 Rev. B.
