    Hypro

    9307C-GM10-U

    9307C-GM10-U

    $5,497.38 USD
    $9,162.30 USD $5,497.38 USD
    Sale
    Shipping calculated at checkout.
    Title

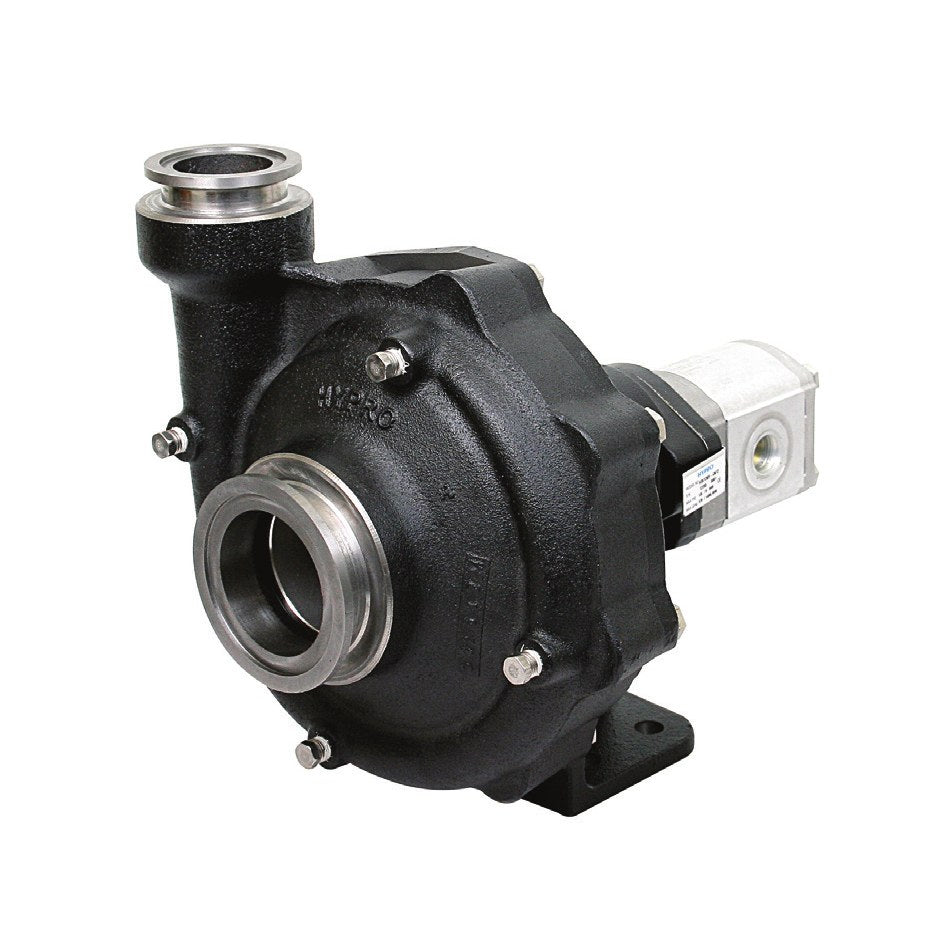

    The 9307C-GM10-U is a Hypro 9307 series centrifugal pump — cast iron with stainless steel wear ring, hydraulic gear motor driven (GM10), universal flange ports, rated at 370 GPM and 135 PSI with universal flange ports.

    Specifications

    Max flow 370 GPM (1400.6 l/min)
    Max pressure 135 PSI (9.3 bar)
    Max hydraulic flow 20 GPM (75.7 l/min)
    Max hydraulic pressure 3000 PSI (206.8 bar)
    Inlet port 300 Universal Flange
    Outlet port 220 Universal Flange
    Hydraulic ports 10 SAE / 12 SAE
    Dry weight 86 lbs (39 kg)
    Mounting bolts 4X 5/8" or M16
    Housing material Cast iron with stainless steel wear ring
    Impeller material Stainless steel

    Service Parts

    Ref. Part No. Description Qty
    1 0151-9300C Pump Casing (Universal Flange) - used on -U models 1
    2 2406-0039 Pipe Plug 4
    3 2253-0010 Acorn Nut 1
    4 2270-0094 Washer 1
    5 0400-9300S Impeller 1
    6 1610-0058 Key 1
    7 1721-0208 O-Ring 1
    9 0755-9300C Seal Flange 1
    10 2270-0093 Slinger 1
    11 1820-0040 Retaining Ring 1
    12 2005-0006 Double Row Ball Bearing 1
    13 1810-0001 Retaining Ring 2
    14 3430-0857 Shaft Assembly 1
    15 2007-0063 Ball Bearing 1
    16 0757-9300C Mounting Flange 2
    17 1720-0209 O-Ring 1
    18 2300-0040 Plug 1
    19 2210-0131 Bolt 8
    20 2210-0026 Bolt 2
    21 2500-0036 Hydraulic Motor (GM10) 1

    Repair Kits

    Kit No. Description
    3430-0604 Mechanical Seal Kit - includes items 7 and 8
    3430-0671 Bearing Kit - includes items 10, 11, 12, 13 and 15
    3430-0612 Impeller Hardware Kit - includes items 3, 4 and 6
    3430-0611 Hydraulic Motor Seal Replacement Kit for motor 2500-0036 (GM10)

    Parts and specifications per Hypro manual L-1552 Rev. B.
