Hypro FC-3D100-04 — 3D Nozzle, 100° Alternating Tapered Flat Fan, Size 04 Red, Fast Cap

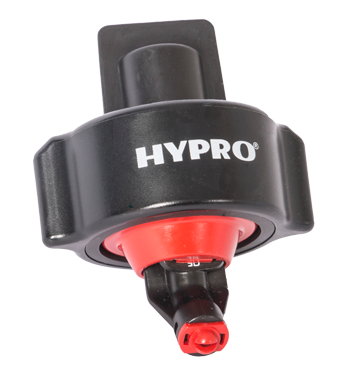

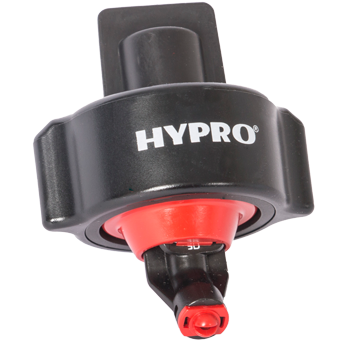

Hypro FC-3D100-04 is the size 04 (red) Hypro 3D spray nozzle in the Fast Cap body. The 3D is an all-purpose, non-air-induction tip that sprays alternating forward- and backward-inclined 100-degree tapered flat fans, so each pass hits the target from two angles. Hypro rates it for 10-90 PSI with a Medium droplet spectrum in the 04 size, and claims 60-75% drift reduction against a conventional flat fan while improving deposition on vertical targets. A good pick for pre-emergence herbicide and general broadcast work where you want more coverage than an air-induction tip gives without the fine-droplet drift of a standard flat fan. The Fast Cap snaps onto Hypro Fast Cap nozzle bodies with no separate cap or gasket; the replacement strainer for the 04 size is TS01-50.

In stock at our Spokane, WA shop and ships same or next business day. Not sure this is the right part for your setup? Call (509) 838-2209 with your nozzle body model and we'll confirm before you order.

Fits

• Hypro Fast Cap nozzle bodies

Related parts

FC-3D100-015 (green) · FC-3D100-02 (yellow) · FC-3D100-025 (lilac) · FC-3D100-03 (blue) · FC-3D100-035 (maroon) · FC-3D100-05 (brown) · FC-3D100-06 (grey) · FC-3D100-08 (white) · TS01-50 50-mesh tip strainer

Specifications

• Spray angle 100°, alternating inclined tapered flat fan
• Size 04, ISO red: 0.40 GPM at 40 PSI
• Pressure range 10-90 PSI (0.7-6 bar)
• Droplet classification: Medium
• Material: polyacetal
• Connection: Fast Cap
• Replacement strainer TS01-50 (sizes 04-08)
