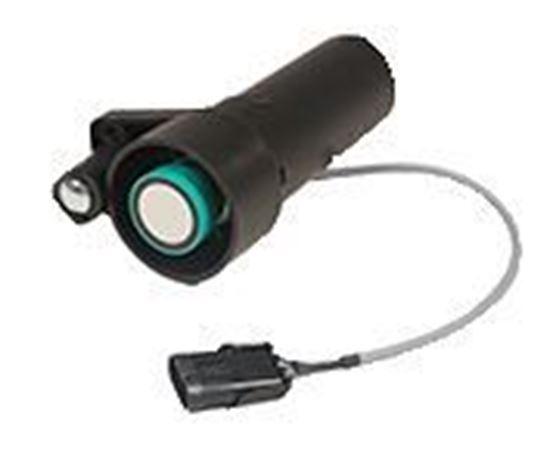

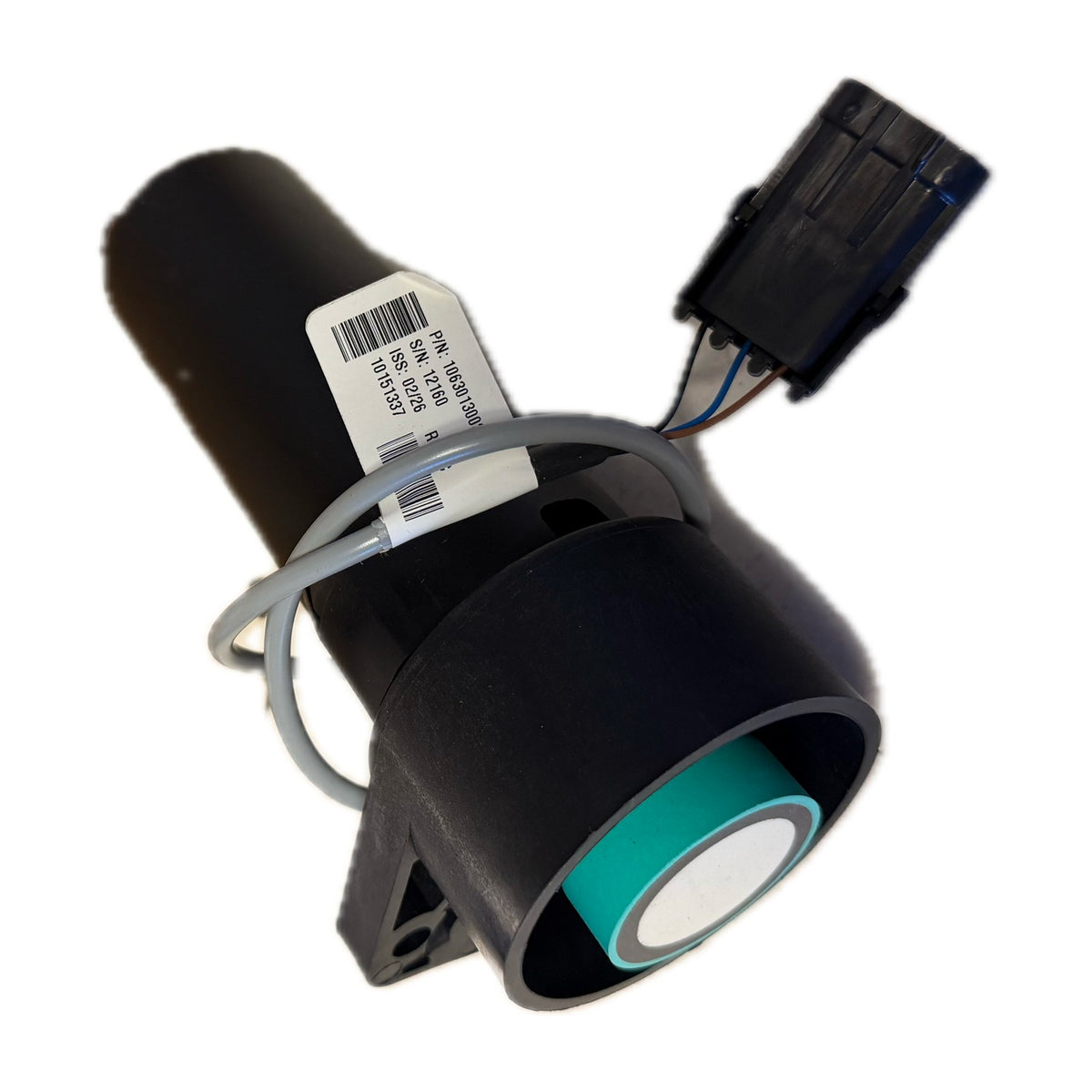

Raven 063-0130-026 AutoBoom Ultrasonic Boom Height Sensor, Analog, Molded Housing

Raven 063-0130-026 ultrasonic boom height sensor assembly, analog, molded housing. This is the boom-tip sensor for Raven AutoBoom PowerGlide Plus and UltraGlide systems: it measures the distance from the boom to the ground or crop canopy so the AutoBoom node can raise and lower each wing. Replace it when the console shows a sensor fault, a height reading that's stuck or wildly wrong, or after a boom strike has cracked the housing or damaged the transducer face.

In stock at our Spokane, WA shop. AutoBoom uses different sensors depending on generation and left/right position — analog vs. digital, molded vs. non-molded, 3-pin vs. 4-pin. Send us a photo of your sensor's connector and label and we'll confirm this is the match before you order.

Specifications

• Type: ultrasonic height sensor, analog output
• Housing: molded, weather-sealed
• Connector: 3-pin Weather Pack
• Includes: sensor assembly with housing (cable and mounting bracket sold separately)

Fits

• Raven AutoBoom PowerGlide Plus and UltraGlide systems using analog molded sensors

Related parts

• Replacement lower housing only: Raven 106-0159-627
• Boom-mount sensor weldment with arm: Raven 116-0159-684
• Digital 4-pin molded sensors, left/right: Raven 063-0130-018 / 063-0130-019
