063-0171-842 10 GPM PWM Hydraulic Control Valve for Raven Rate Controllers

063-0171-842 10 GPM PWM Hydraulic Control Valve (Raven Replacement) — In Stock

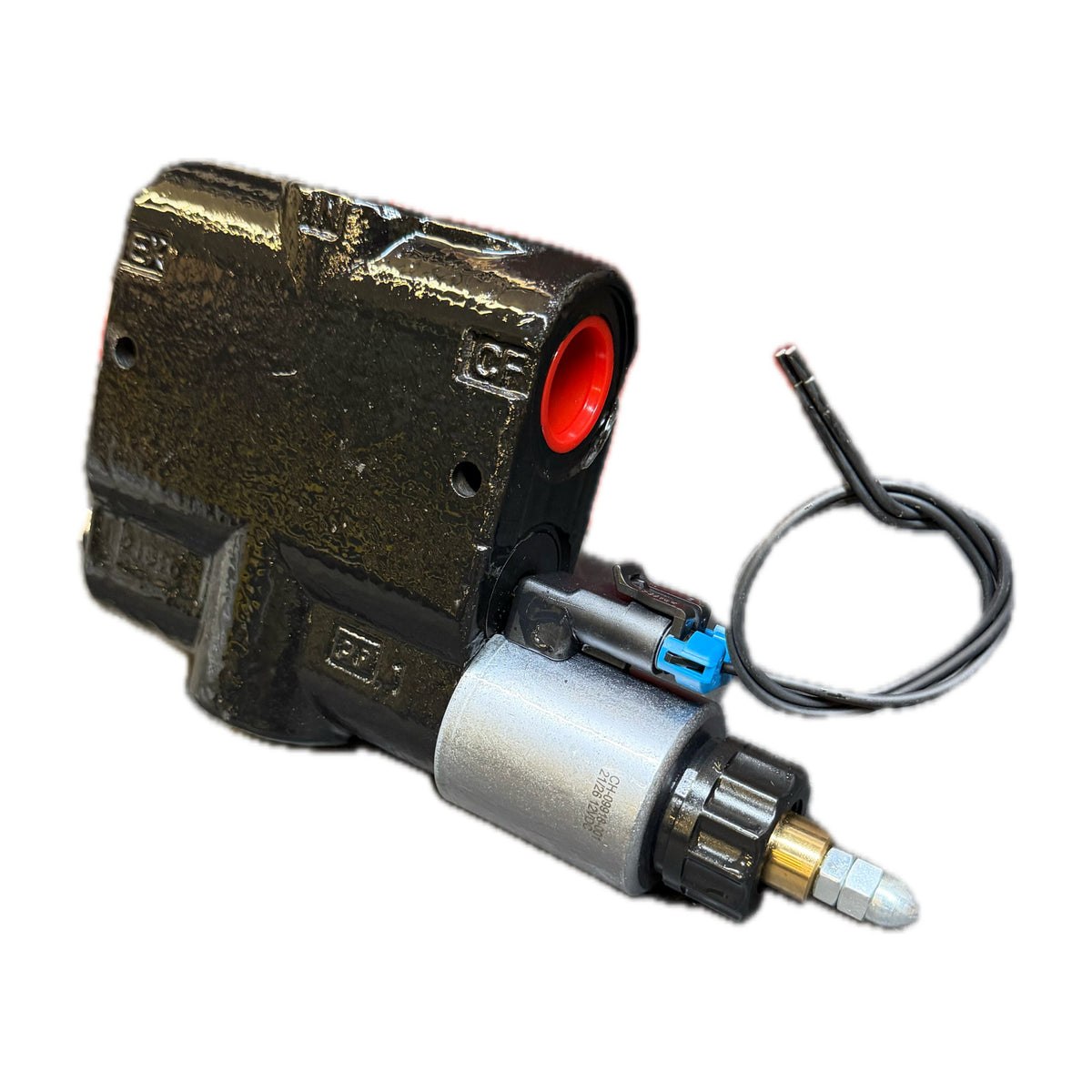

This is the same pulse width modulated (PWM) hydraulic control valve Raven supplies as part number 063-0171-842.  It's an electronically adjustable, pressure-compensated flow control rated to 10 GPM of oil flow. It regulates the hydraulic drive on a product pump or spinner, so your Raven rate controller can hold the target rate as ground speed and conditions change. It's used on sprayers, NH3 and liquid fertilizer rigs, and granular spreaders running PWM control.

Specs

• Replaces Raven part number: 063-0171-842 (Raven description: HYD VALVE PULSE WIDTH MOD10GPM)
• Controlled flow: 0–10 GPM (oil), pressure compensated
• Max pressure: 3000 PSI (207 bar)
• Ports: #12 SAE O-ring (1-1/16"-12) — IN (pump), CF (controlled flow), EX (excess flow)
• Coil: 12 VDC, 9.6 ohms, 15 watts, 1.0 amp max (flow typically starts around 350 mA)
• PWM frequency: 90–115 Hz
• Manual override: adjustable with the acorn nut and jam nut on the end of the coil
• Filtration: 10 micron recommended
• Mounting: any orientation, on a flat surface
• Weight: about 8.5 lb
• Wiring: 2-wire pigtail with bare leads — no connector installed

How it works

Oil from the pump enters the IN port. With no signal to the coil, all flow goes out the EX (excess) port back to tank. As the rate controller raises the PWM duty cycle, the valve sends proportionally more oil out the CF port to your pump or spinner motor. Both CF and EX are pressure compensated, so the controlled flow stays steady when system pressure changes.

Put on the connector you need

Raven's version comes with a connector already on it. Ours ships with bare leads, so you can crimp on whatever end matches your harness. That makes it a fit for installs that call for the 063-0171-842 as well as the other 10 GPM version, 063-0172-656, which uses a 2-pin Metri-Pack connector. Need the connector too? Call (509) 838-2209 and we'll send the right one with the valve.

Other sizes

Raven uses this valve family in several flow ratings: 063-0171-841 (5 GPM), 063-0171-843 (15 GPM) and 063-0171-846 (30 GPM). Not sure which size you have? Send us a photo of your valve or call and we'll confirm.

Why buy from Spray Center

We're a Raven Platinum-certified dealer in Spokane, WA. This valve is on our shelf and ready to ship. If your rate won't hold, check our Raven Troubleshooting Guide first. The valve may not be the problem, and we'd rather you know that before you spend $1,100.
