Raven 063-0171-985 RFM 60P High Pulse Poly Flowmeter, 1–60 GPM, M200 Flange (Replaces 063-0171-793)

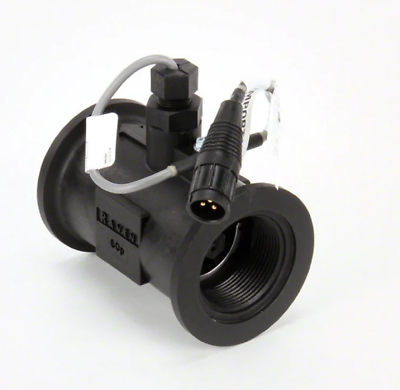

Raven 063-0171-985 RFM 60P high-pulse electronic turbine flowmeter, 1–60 GPM. Polypropylene body with M200 series flange / 1-1/2" FPT connections. This is the current part number that replaces Raven 063-0171-793. Compatible with Raven SCS consoles, Viper, CR7/CR12, and all Raven CAN rate control systems. This is the Raven part CNH sells as Case IH / New Holland part number 87265589 — if your parts book or dealer quote lists 87265589, this is the part.

In stock at our Spokane, WA shop. If your flowmeter is reading erratically or has stopped counting, call us first — sometimes it's just the turbine or sensor, and we stock the repair kit too.

Specifications

• Flow range: 1–60 GPM (turn-down ratio 50:1)
• Connections: M200 flange, 1-1/2" FPT
• Body: polypropylene, chemical resistant
• Pressure rating: 175 PSI
• Signal: high pulse (HP)
• Replaces: 063-0171-793 (RFM 60P)
• Cross-reference: CNH / Case IH / New Holland 87265589

Related parts

• Repair kit: Raven 117-0171-640
• Larger sizes: RFM 100P (063-0173-578), RFM 200P (063-0173-579)
