Raven 063-0172-504 — Discharge Valve Cartridge, Sidekick Pro 5-200 oz/min Injection Pump

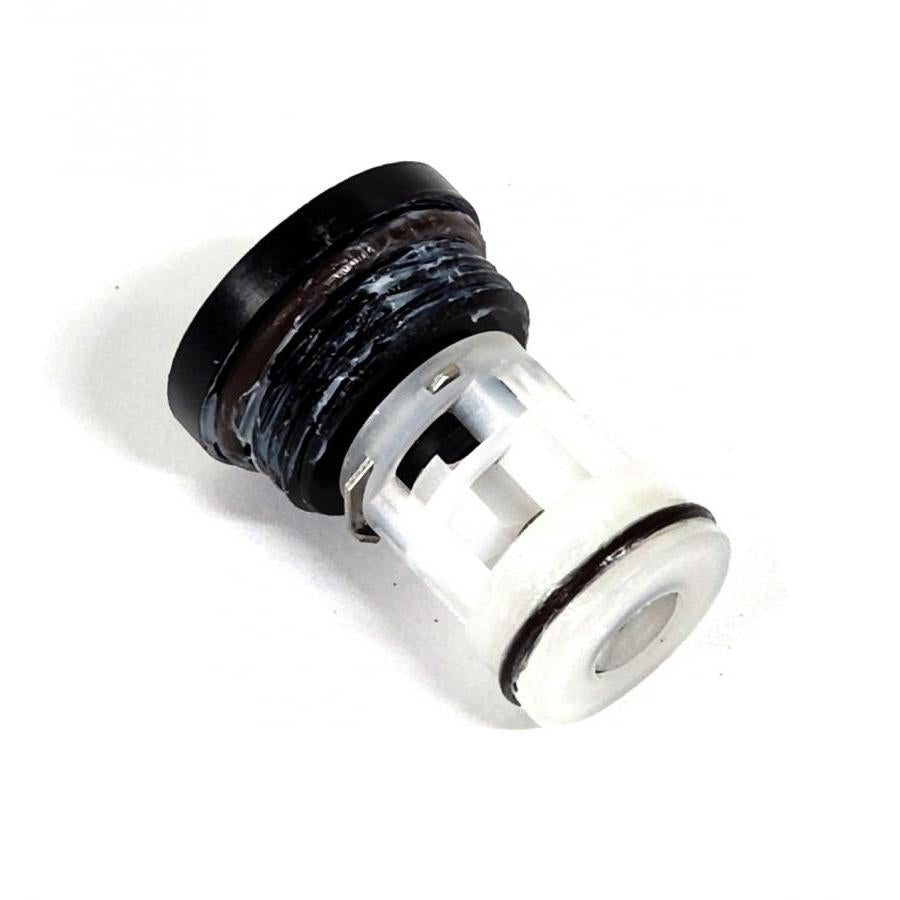

Raven 063-0172-504 is the discharge check valve cartridge for the Raven Sidekick Pro direct injection pump, 5-200 oz/min (pump P/N 063-0173-081), and the 3/4" injection pump in Raven injection cabinet 016-0171-671. It is the complete cartridge: plug fitting, poppet, poppet guide, spring, retainer clip, valve body and o-rings. The discharge cartridge pairs with the intake cartridge 063-0172-503, and Raven notes the two are not interchangeable. If the pump calibration test fails, you are getting flow error or low pressure alarms, or application accuracy has dropped off because grit and rust have built up on the check valve seals, cleaning or replacing the cartridges is the fix. They come out with a 9/16" allen wrench.

In stock at our Spokane, WA shop and ships same or next business day. Not sure this is the right part for your setup? Call (509) 838-2209 with your Sidekick pump model and we'll confirm before you order.

Fits

• Raven Sidekick Pro injection pump, 5-200 oz/min (063-0173-081)
• Raven injection cabinet 016-0171-671

Related parts

063-0172-503 intake valve cartridge · 107-0171-526 3/4" pump head · 219-0002-912 o-ring · 219-0007-011 Viton o-ring · 219-0002-018 Viton o-ring · 107-0171-576 retainer clip · 107-0159-935 poppet · 107-0159-934 poppet guide · 314-0000-006 spring · 106-0159-621 discharge valve body
