Raven 107-0171-526 — Pump Head, 3/4" Sidekick Pro Injection Pump (5-200 oz/min)

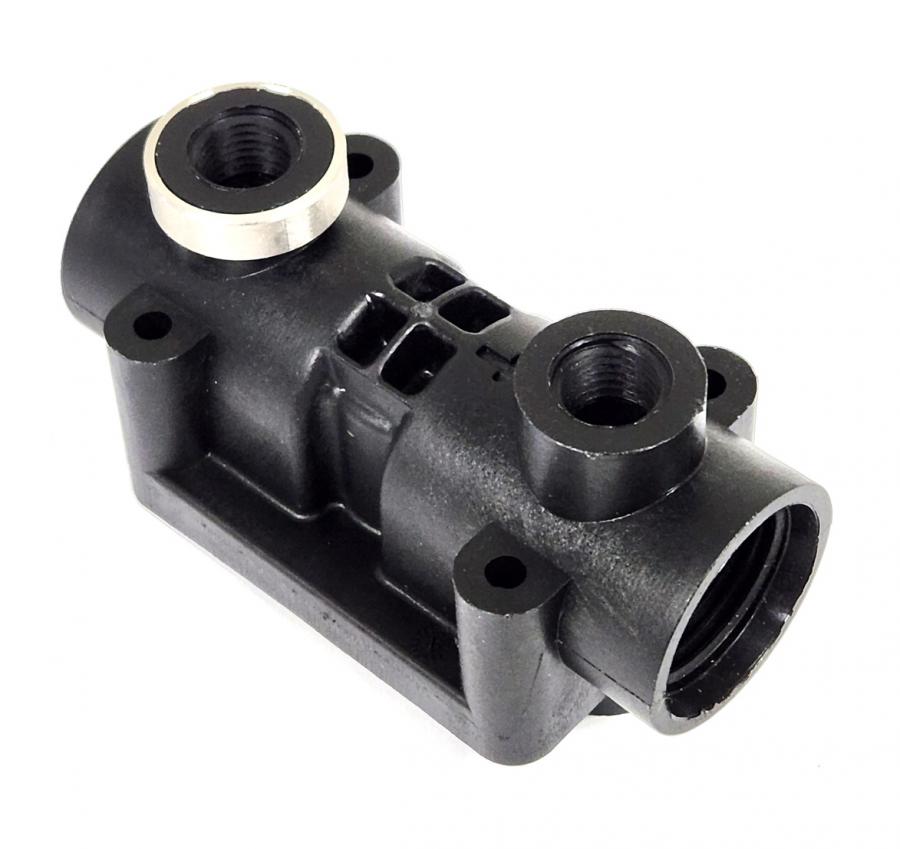

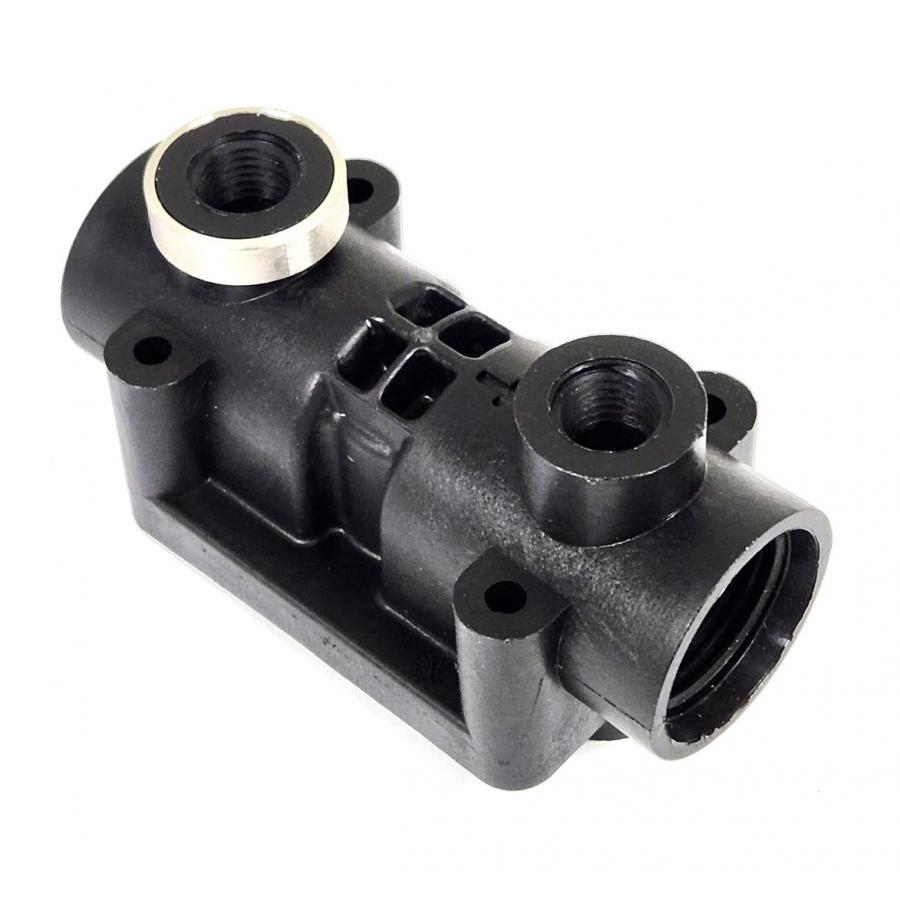

Raven 107-0171-526 is the molded 3/4" pump head for the Raven Sidekick Pro direct injection pump, 5-200 oz/min (pump P/N 063-0173-081). It is the head that bolts to the 3/4" pump housing (107-0171-523) over the piston and carries the intake and discharge check valve cartridges. If the head is cracked, the cartridge bores are scored or chemical-swollen, or it is leaking at the housing joint after a reseal, replace it. It is held on with 10-24 x 1-1/2" stainless screws and internal tooth lock washers; Raven calls for nickel anti-seize on the threads.

In stock at our Spokane, WA shop and ships same or next business day. Not sure this is the right part for your setup? Call (509) 838-2209 with your Sidekick pump model and we'll confirm before you order.

Fits

• Raven Sidekick Pro injection pump, 5-200 oz/min (063-0173-081)

Related parts

107-0171-523 3/4" injection pump housing · 107-0171-531 3/4" pump piston · 063-0172-503 intake cartridge · 063-0172-504 discharge cartridge · 219-0000-125 slipper seal · 219-0007-117 and 219-0002-015 o-rings · 311-0068-191 10-24 x 1-1/2" SS screw · 313-3000-014 internal tooth lock washer · 063-0171-035 vacuum switch
