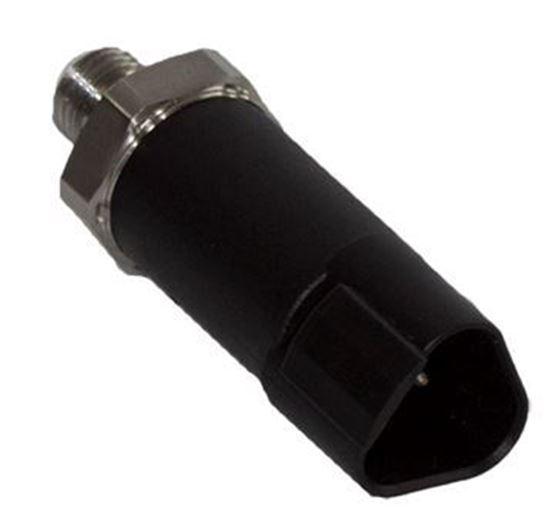

Raven 422-0000-086 Hydraulic Pressure Transducer, 0–3000 PSI, 4–20mA
Raven 422-0000-086 Hydraulic Pressure Transducer, 0–3000 PSI, 4–20mA
CNH / Case IH / New Holland part #: 87717374 · Raven–CNH cross-reference lookup
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Raven 422-0000-086 hydraulic pressure transducer, 0–3000 PSI, 4–20 mA output. This is the high-pressure sensor Raven uses on hydraulic circuits — AutoBoom / UltraGlide boom height systems, RS1/SC1 autosteer hydraulic monitoring, and hydraulic-drive product pumps — to read system pressure and detect faults. Replace it if the console shows a hydraulic pressure fault or an unchanging pressure reading.
In stock at our Spokane, WA shop. This is a hydraulic-oil sensor, not a spray-line sensor — for boom/product pressure (0–250 PSI) see the 422-0000-090 or 422-0000-119. Call us if you're not sure which circuit your fault is on.
Specifications
- Range: 0–3000 PSI
- Output: 4–20 mA
- Application: hydraulic oil pressure sensing
Related parts
- Liquid pressure transducer 0–250 PSI, Metri-Pack: Raven 422-0000-090
- Liquid pressure transducer 0–250 PSI, Deutsch DT: Raven 422-0000-119
Details
| Part number | 422-0000-086 |
|---|---|
| Manufacturer | Raven Industries |
| SKU | RE422-0000-086 |
| Catalogue description | XDCR PRESS 4-20MA 0-3000 PSI |
