TeeJet 24216A-1/2-NYB — Triple Turret Nozzle Body, 1/2" Wet Boom Pipe

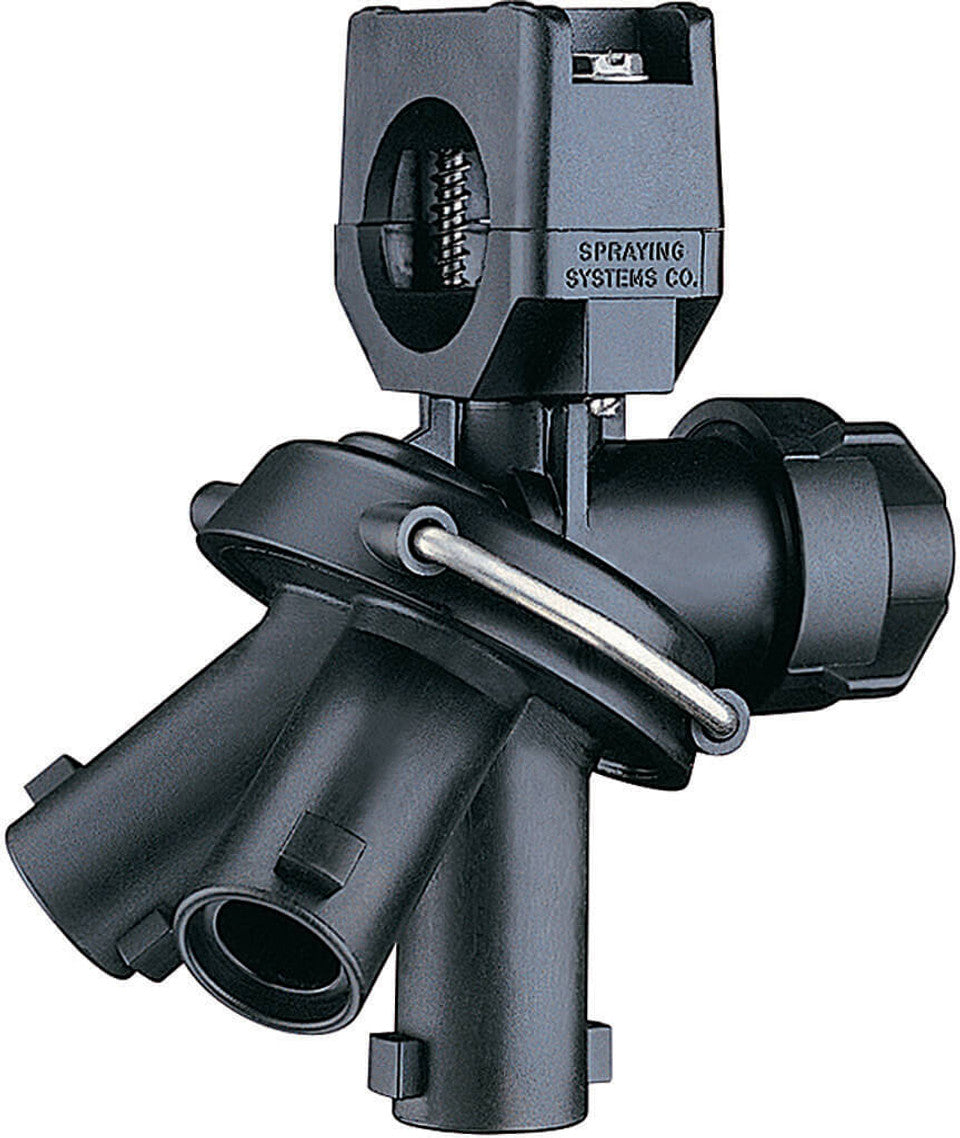

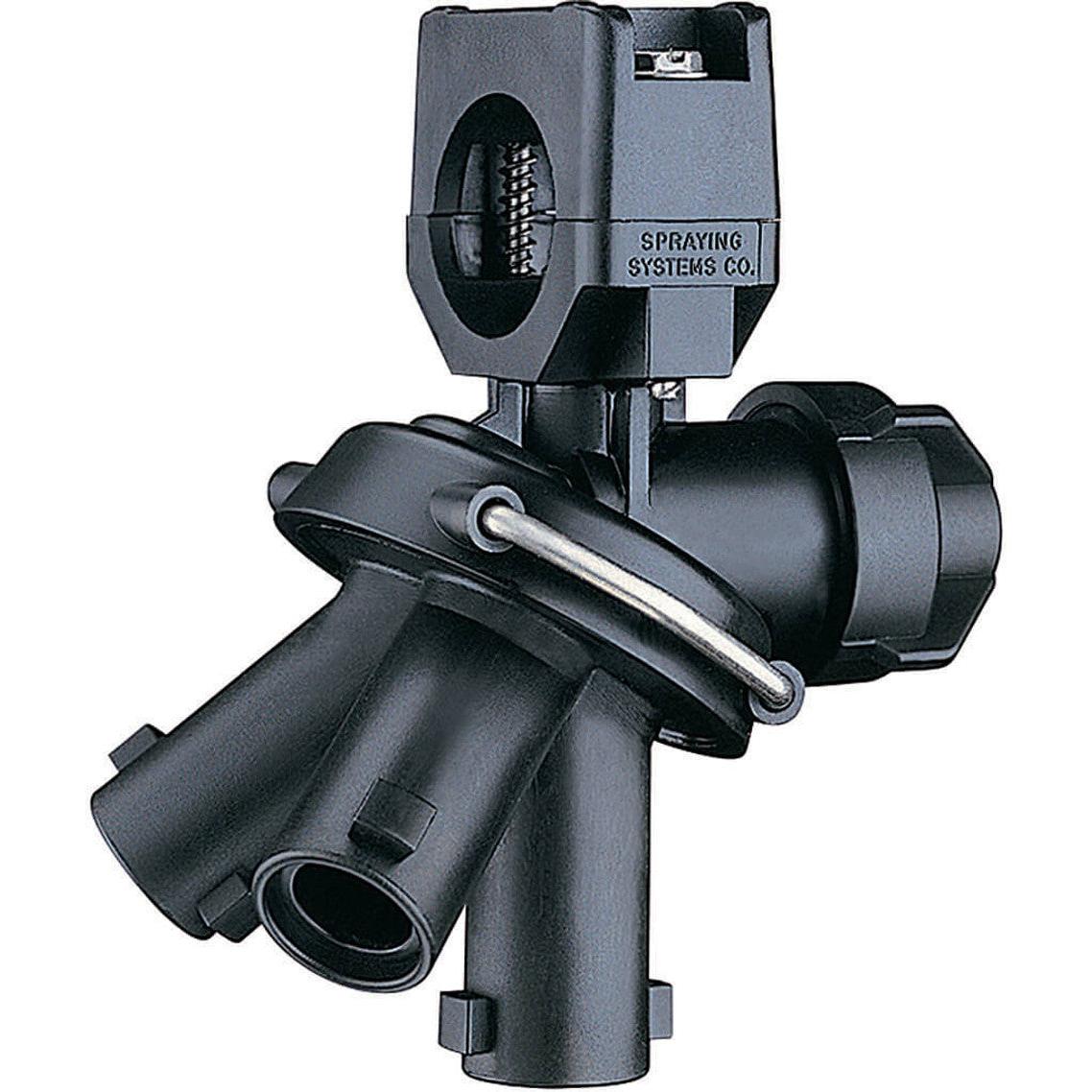

TeeJet 24216A-1/2-NYB is a three-outlet turret nozzle body for 1/2" wet boom pipe. It clamps over a 3/8" hole drilled in the pipe (the 1/2" and 3/4" sizes also have a mounting hole in the upper clamp for flat surfaces) and lets you keep three tips on the boom and rotate to the one you need, with a shut-off position between each. It has the ChemSaver drip-free diaphragm check valve (opens at 10 PSI), EPDM diaphragm standard with Viton optional, and a 150 PSI maximum operating pressure. Replace a body when the turret no longer indexes cleanly or the diaphragm has started dripping.

In stock at our Spokane, WA shop and ships same or next business day. Not sure this is the right part for your setup? Call (509) 838-2209 with your boom model and we'll confirm before you order.

Fits

• 1/2" wet boom pipe or tubing, 3/8" mounting hole
• Standard Quick TeeJet caps and tips

Specifications

• 3 spray positions plus shut-off between each
• ChemSaver check valve, opens at 10 PSI
• Maximum operating pressure 150 PSI (10 bar)
• Flow 1.6 GPM at 5 PSI drop, 2.26 GPM at 10 PSI drop

Related parts

24216A-3/4-NYB (3/4" pipe) · 24216A-1-NYB (1" pipe) · 24230A triple body for dry booms · CP21953-EPR diaphragm
