AI11004-VS — TeeJet Tip

AI11004-VS — TeeJet Tip

$11.55 USD
$22.22 USD $11.55 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSAI11004-VS — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “AI11004-VS — TeeJet Tip” — fitment, alternatives, or what else you need

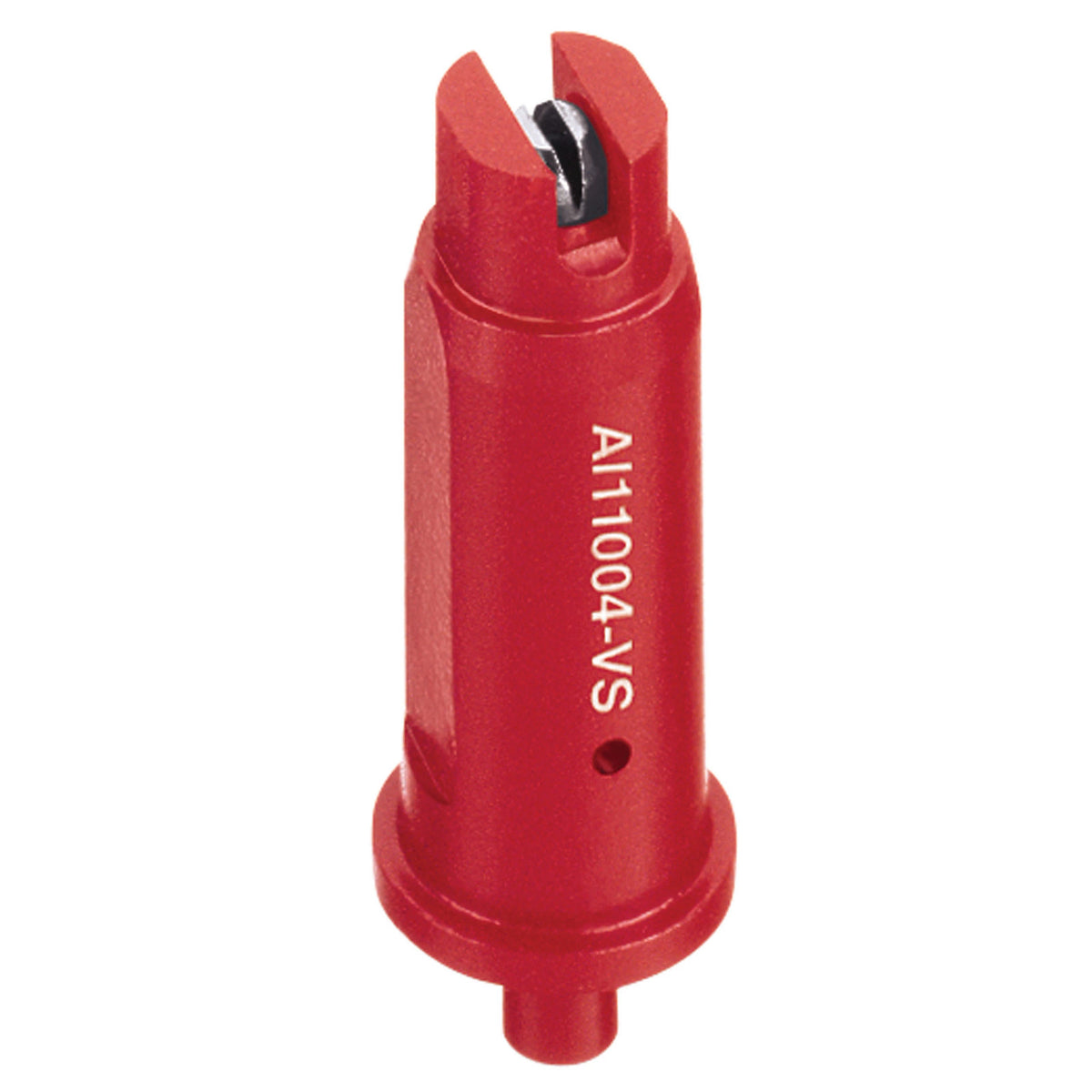

AI11004-VS air induction flat spray tip, 110° spray angle, 0.4 GPM at 40 PSI (red), stainless steel construction (VisiFlo stainless). Base air-induction drift-reduction flat spray tip producing larger, air-filled droplets to reduce drift. For agricultural boom sprayer application.

Application Rates

Capacity and application rates for the AI11004 tip from TeeJet Catalog 51A (rated pressure range 30–100 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.

PSI Drop size GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
30 UC 0.35 45 26 21 17.3 13.0 10.4 8.7 6.9 5.2
40 XC 0.40 51 30 24 19.8 14.9 11.9 9.9 7.9 5.9
50 XC 0.45 58 33 27 22 16.7 13.4 11.1 8.9 6.7
60 XC 0.49 63 36 29 24 18.2 14.6 12.1 9.7 7.3
70 VC 0.53 68 39 31 26 19.7 15.7 13.1 10.5 7.9
80 VC 0.57 73 42 34 28 21 16.9 14.1 11.3 8.5
90 VC 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9
100 C 0.63 81 47 37 31 23 18.7 15.6 12.5 9.4

Drop size (ASABE S572): C = Coarse, VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
