AI11005-VS — TeeJet Spray Tip
AI11005-VS — TeeJet Spray Tip
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

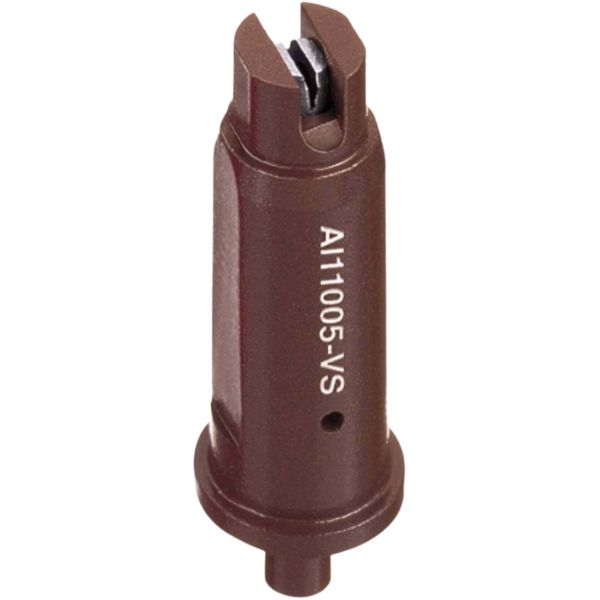

AI11005-VS air induction flat spray tip, 110° spray angle, 0.5 GPM at 40 PSI (brown), stainless steel construction (VisiFlo stainless). Base air-induction drift-reduction flat spray tip producing larger, air-filled droplets to reduce drift. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the AI11005 tip from TeeJet Catalog 51A (rated pressure range 30–100 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 30 | UC | 0.43 | 55 | 32 | 26 | 21 | 16.0 | 12.8 | 10.6 | 8.5 | 6.4 |
| 40 | XC | 0.50 | 64 | 37 | 30 | 25 | 18.6 | 14.9 | 12.4 | 9.9 | 7.4 |
| 50 | XC | 0.56 | 72 | 42 | 33 | 28 | 21 | 16.6 | 13.9 | 11.1 | 8.3 |
| 60 | XC | 0.61 | 78 | 45 | 36 | 30 | 23 | 18.1 | 15.1 | 12.1 | 9.1 |
| 70 | VC | 0.66 | 84 | 49 | 39 | 33 | 25 | 19.6 | 16.3 | 13.1 | 9.8 |
| 80 | VC | 0.71 | 91 | 53 | 42 | 35 | 26 | 21 | 17.6 | 14.1 | 10.5 |
| 90 | VC | 0.75 | 96 | 56 | 45 | 37 | 28 | 22 | 18.6 | 14.9 | 11.1 |
| 100 | VC | 0.79 | 101 | 59 | 47 | 39 | 29 | 23 | 19.6 | 15.6 | 11.7 |
Drop size (ASABE S572): VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
