AIC110025-VS — TeeJet Tip/Cap AI
AIC110025-VS — TeeJet Tip/Cap AI
Couldn't load pickup availability
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

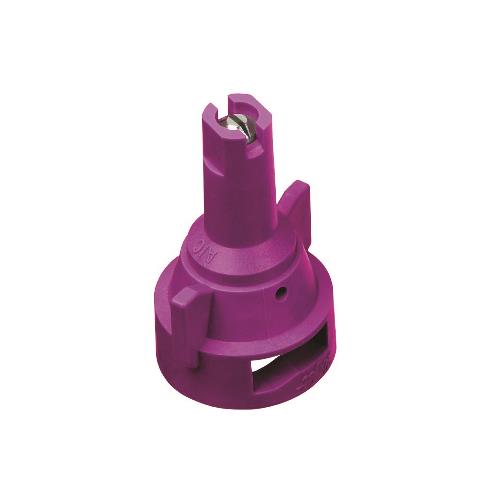

TeeJet AIC110025-VS — TeeJet tip/cap AI.
Details
| Part number | AIC110025-VS |
|---|---|
| Manufacturer | TeeJet Technologies |
| SKU | SSAIC110025-VS |
| Catalogue description | TEEJET TIP/CAP AI |
Expanded from the TeeJet Technologies catalogue listing for this part.
Application Rates
Capacity and application rates for the AIC110025 tip from TeeJet Catalog 51A (rated pressure range 30–100 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 30 | UC | 0.22 | 28 | 16.3 | 13.1 | 10.9 | 8.2 | 6.5 | 5.4 | 4.4 | 3.3 |
| 40 | XC | 0.25 | 32 | 18.6 | 14.9 | 12.4 | 9.3 | 7.4 | 6.2 | 5.0 | 3.7 |
| 50 | XC | 0.28 | 36 | 21 | 16.6 | 13.9 | 10.4 | 8.3 | 6.9 | 5.5 | 4.2 |
| 60 | XC | 0.31 | 40 | 23 | 18.4 | 15.3 | 11.5 | 9.2 | 7.7 | 6.1 | 4.6 |
| 70 | VC | 0.33 | 42 | 25 | 19.6 | 16.3 | 12.3 | 9.8 | 8.2 | 6.5 | 4.9 |
| 80 | VC | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 90 | VC | 0.38 | 49 | 28 | 23 | 18.8 | 14.1 | 11.3 | 9.4 | 7.5 | 5.6 |
| 100 | C | 0.40 | 51 | 30 | 24 | 19.8 | 14.9 | 11.9 | 9.9 | 7.9 | 5.9 |
Drop size (ASABE S572): C = Coarse, VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
