TeeJet
AIC11004-VS
AIC11004-VS
Regular price
$12.53 USD
Regular price
$24.10 USD
Sale price
$12.53 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

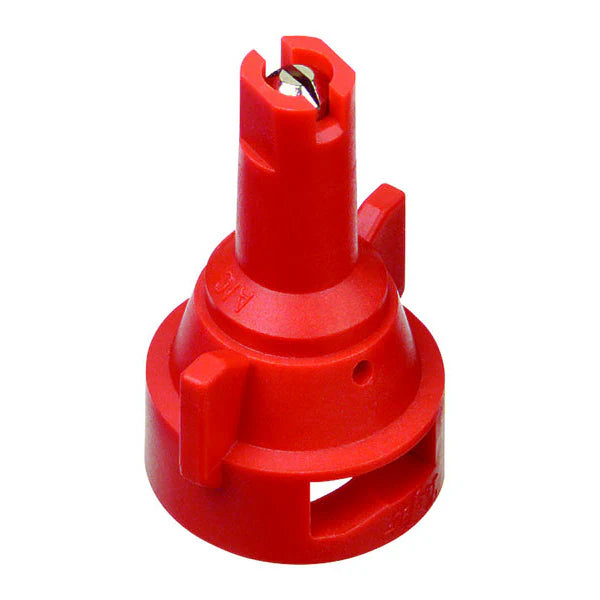

TeeJet AIC11004-VS — TeeJet tip/cap AI.
Details
| Part number | AIC11004-VS |
|---|---|
| Manufacturer | TeeJet Technologies |
| SKU | SSAIC11004-VS |
| Catalogue description | TEEJET TIP/CAP AI |
Expanded from the TeeJet Technologies catalogue listing for this part.
Application Rates
Capacity and application rates for the AIC11004 tip from TeeJet Catalog 51A (rated pressure range 30–100 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 30 | UC | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 40 | XC | 0.40 | 51 | 30 | 24 | 19.8 | 14.9 | 11.9 | 9.9 | 7.9 | 5.9 |
| 50 | XC | 0.45 | 58 | 33 | 27 | 22 | 16.7 | 13.4 | 11.1 | 8.9 | 6.7 |
| 60 | XC | 0.49 | 63 | 36 | 29 | 24 | 18.2 | 14.6 | 12.1 | 9.7 | 7.3 |
| 70 | VC | 0.53 | 68 | 39 | 31 | 26 | 19.7 | 15.7 | 13.1 | 10.5 | 7.9 |
| 80 | VC | 0.57 | 73 | 42 | 34 | 28 | 21 | 16.9 | 14.1 | 11.3 | 8.5 |
| 90 | VC | 0.60 | 77 | 45 | 36 | 30 | 22 | 17.8 | 14.9 | 11.9 | 8.9 |
| 100 | C | 0.63 | 81 | 47 | 37 | 31 | 23 | 18.7 | 15.6 | 12.5 | 9.4 |
Drop size (ASABE S572): C = Coarse, VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
