TeeJet
AIC11005-VS
AIC11005-VS
Regular price
$12.53 USD
Regular price
$24.10 USD
Sale price
$12.53 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

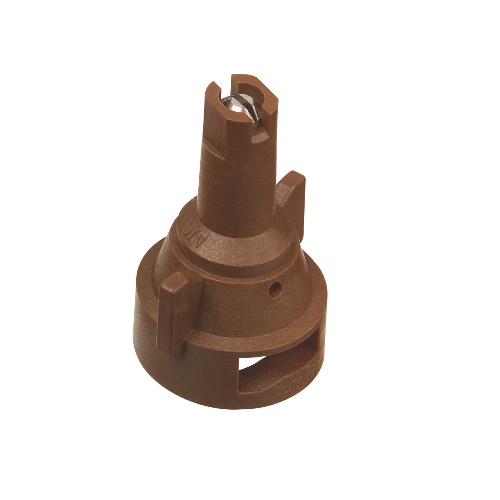

TeeJet AIC11005-VS — TeeJet tip/cap AI.
Details
| Part number | AIC11005-VS |
|---|---|
| Manufacturer | TeeJet Technologies |
| SKU | SSAIC11005-VS |
| Catalogue description | TEEJET TIP/CAP AI |
Expanded from the TeeJet Technologies catalogue listing for this part.
Application Rates
Capacity and application rates for the AIC11005 tip from TeeJet Catalog 51A (rated pressure range 30–100 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 30 | UC | 0.43 | 55 | 32 | 26 | 21 | 16.0 | 12.8 | 10.6 | 8.5 | 6.4 |
| 40 | XC | 0.50 | 64 | 37 | 30 | 25 | 18.6 | 14.9 | 12.4 | 9.9 | 7.4 |
| 50 | XC | 0.56 | 72 | 42 | 33 | 28 | 21 | 16.6 | 13.9 | 11.1 | 8.3 |
| 60 | XC | 0.61 | 78 | 45 | 36 | 30 | 23 | 18.1 | 15.1 | 12.1 | 9.1 |
| 70 | VC | 0.66 | 84 | 49 | 39 | 33 | 25 | 19.6 | 16.3 | 13.1 | 9.8 |
| 80 | VC | 0.71 | 91 | 53 | 42 | 35 | 26 | 21 | 17.6 | 14.1 | 10.5 |
| 90 | VC | 0.75 | 96 | 56 | 45 | 37 | 28 | 22 | 18.6 | 14.9 | 11.1 |
| 100 | VC | 0.79 | 101 | 59 | 47 | 39 | 29 | 23 | 19.6 | 15.6 | 11.7 |
Drop size (ASABE S572): VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
