TeeJet
AIC11008-VS
AIC11008-VS
Regular price
$12.53 USD
Regular price
$24.10 USD
Sale price
$12.53 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

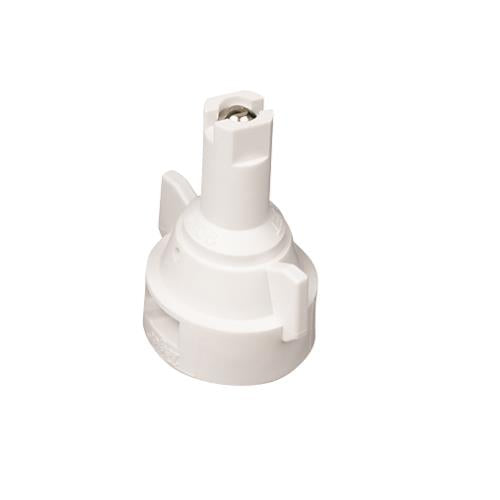

TeeJet AIC11008-VS — TeeJet tip/cap AI.
Details
| Part number | AIC11008-VS |
|---|---|
| Manufacturer | TeeJet Technologies |
| SKU | SSAIC11008-VS |
| Catalogue description | TEEJET TIP/CAP AI |
Expanded from the TeeJet Technologies catalogue listing for this part.
Application Rates
Capacity and application rates for the AIC11008 tip from TeeJet Catalog 51A (rated pressure range 30–100 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 30 | UC | 0.69 | 88 | 51 | 41 | 34 | 26 | 20 | 17.1 | 13.7 | 10.2 |
| 40 | UC | 0.80 | 102 | 59 | 48 | 40 | 30 | 24 | 19.8 | 15.8 | 11.9 |
| 50 | XC | 0.89 | 114 | 66 | 53 | 44 | 33 | 26 | 22 | 17.6 | 13.2 |
| 60 | XC | 0.98 | 125 | 73 | 58 | 49 | 36 | 29 | 24 | 19.4 | 14.6 |
| 70 | XC | 1.06 | 136 | 79 | 63 | 52 | 39 | 31 | 26 | 21 | 15.7 |
| 80 | VC | 1.13 | 145 | 84 | 67 | 56 | 42 | 34 | 28 | 22 | 16.8 |
| 90 | VC | 1.20 | 154 | 89 | 71 | 59 | 45 | 36 | 30 | 24 | 17.8 |
| 100 | VC | 1.26 | 161 | 94 | 75 | 62 | 47 | 37 | 31 | 25 | 18.7 |
Drop size (ASABE S572): VC = Very Coarse, XC = Extremely Coarse, UC = Ultra Coarse.
