TeeJet
AIXR11002VP
AIXR11002VP
Couldn't load pickup availability

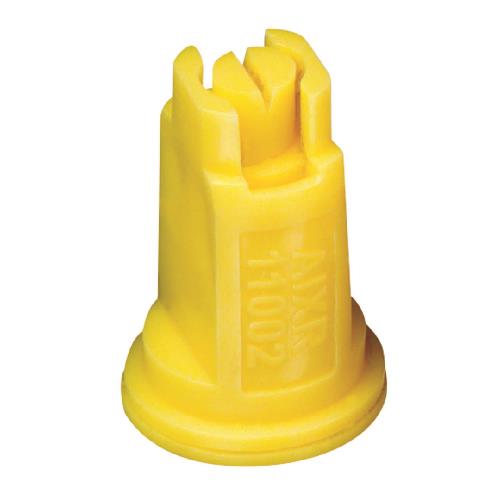

AIXR11002VP air induction extended range flat spray tip, 110° spray angle, 0.2 GPM at 40 PSI (yellow), polymer (acetal) construction (VisiFlo). Air-induction drift-reduction tip that draws air into the spray stream to produce larger, air-filled droplets for reduced drift with systemic herbicides. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the AIXR11002 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | XC | 0.12 | 15 | 8.9 | 7.1 | 5.9 | 4.5 | 3.6 | 3.0 | 2.4 | 1.8 |
| 20 | XC | 0.14 | 18 | 10.4 | 8.3 | 6.9 | 5.2 | 4.2 | 3.5 | 2.8 | 2.1 |
| 30 | VC | 0.17 | 22 | 12.6 | 10.1 | 8.4 | 6.3 | 5.0 | 4.2 | 3.4 | 2.5 |
| 40 | C | 0.20 | 26 | 14.9 | 11.9 | 9.9 | 7.4 | 5.9 | 5.0 | 4.0 | 3.0 |
| 50 | C | 0.22 | 28 | 16.3 | 13.1 | 10.9 | 8.2 | 6.5 | 5.4 | 4.4 | 3.3 |
| 60 | C | 0.24 | 31 | 17.8 | 14.3 | 11.9 | 8.9 | 7.1 | 5.9 | 4.8 | 3.6 |
| 75 | M | 0.27 | 35 | 20 | 16.0 | 13.4 | 10.0 | 8.0 | 6.7 | 5.3 | 4.0 |
| 90 | M | 0.30 | 38 | 22 | 17.8 | 14.9 | 11.1 | 8.9 | 7.4 | 5.9 | 4.5 |
Drop size (ASABE S572): M = Medium, C = Coarse, VC = Very Coarse, XC = Extremely Coarse.
