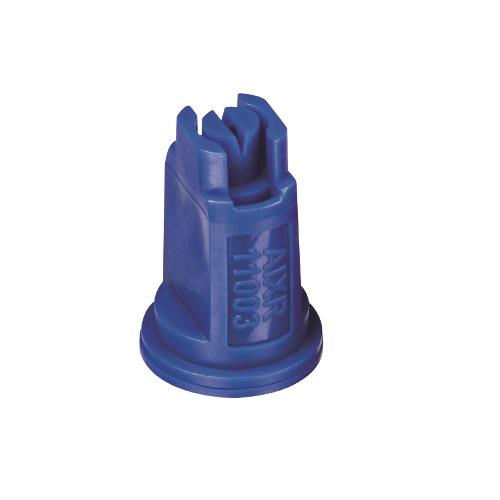

• Blue AIXR11003VP air induction spray nozzle with a durable plastic construction and precision tip design.
1 1

TeeJet

AIXR11003VP — Air Induction XR Tip

AIXR11003VP — Air Induction XR Tip

$6.30 USD
$12.12 USD $6.30 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSAIXR11003VP — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “AIXR11003VP — Air Induction XR Tip” — fitment, alternatives, or what else you need

AIXR11003VP air induction extended range flat spray tip, 110° spray angle, 0.3 GPM at 40 PSI (blue), polymer (acetal) construction (VisiFlo). Air-induction drift-reduction tip that draws air into the spray stream to produce larger, air-filled droplets for reduced drift with systemic herbicides. For agricultural boom sprayer application.

Application Rates

Capacity and application rates for the AIXR11003 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.

PSI Drop size GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
15 XC 0.18 23 13.4 10.7 8.9 6.7 5.3 4.5 3.6 2.7
20 XC 0.21 27 15.6 12.5 10.4 7.8 6.2 5.2 4.2 3.1
30 XC 0.26 33 19.3 15.4 12.9 9.7 7.7 6.4 5.1 3.9
40 VC 0.30 38 22 17.8 14.9 11.1 8.9 7.4 5.9 4.5
50 C 0.34 44 25 20 16.8 12.6 10.1 8.4 6.7 5.0
60 C 0.37 47 27 22 18.3 13.7 11.0 9.2 7.3 5.5
75 C 0.41 52 30 24 20 15.2 12.2 10.1 8.1 6.1
90 C 0.45 58 33 27 22 16.7 13.4 11.1 8.9 6.7

Drop size (ASABE S572): C = Coarse, VC = Very Coarse, XC = Extremely Coarse.
