TeeJet

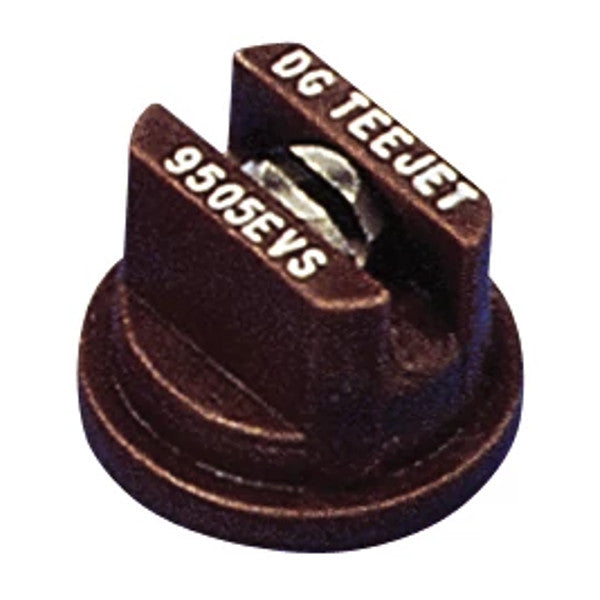

DG9505EVS — VisiFlo TeeJet, Even
DG9505EVS — VisiFlo TeeJet, Even
Regular price
$12.08 USD
Regular price
$16.10 USD
Sale price
$12.08 USD
Unit price
per
Shipping calculated at checkout.
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “DG9505EVS — VisiFlo TeeJet, Even” — fitment, alternatives, or what else you need
TeeJet DG9505EVS. The application rates below are for the DG9505EVS tip size.
Application Rates
Capacity and application rates for the DG9505EVS tip from TeeJet Catalog 51A (rated pressure range 30–60 PSI, 50-mesh tip strainer recommended). GPA figures are field acres on 30″ row spacing (banding over the row); for other band widths, multiply by the band-width conversion factors in TeeJet Catalog 51A. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | ||||
| 30 | C | 0.43 | 55 | 28 | 24 | 21 | 18.9 | 17.0 | 15.5 | 14.2 | 13.1 | 12.2 | 11.4 | 10.6 | 10.0 |
| 40 | C | 0.50 | 64 | 33 | 28 | 25 | 22 | 19.8 | 18.0 | 16.5 | 15.2 | 14.1 | 13.2 | 12.4 | 11.6 |
| 50 | M | 0.56 | 72 | 37 | 32 | 28 | 25 | 22 | 20 | 18.5 | 17.1 | 15.8 | 14.8 | 13.9 | 13.0 |
| 60 | M | 0.61 | 78 | 40 | 35 | 30 | 27 | 24 | 22 | 20 | 18.6 | 17.3 | 16.1 | 15.1 | 14.2 |
Drop size (ASABE S572): M = Medium, C = Coarse.
