TT110015VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
TT110015VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

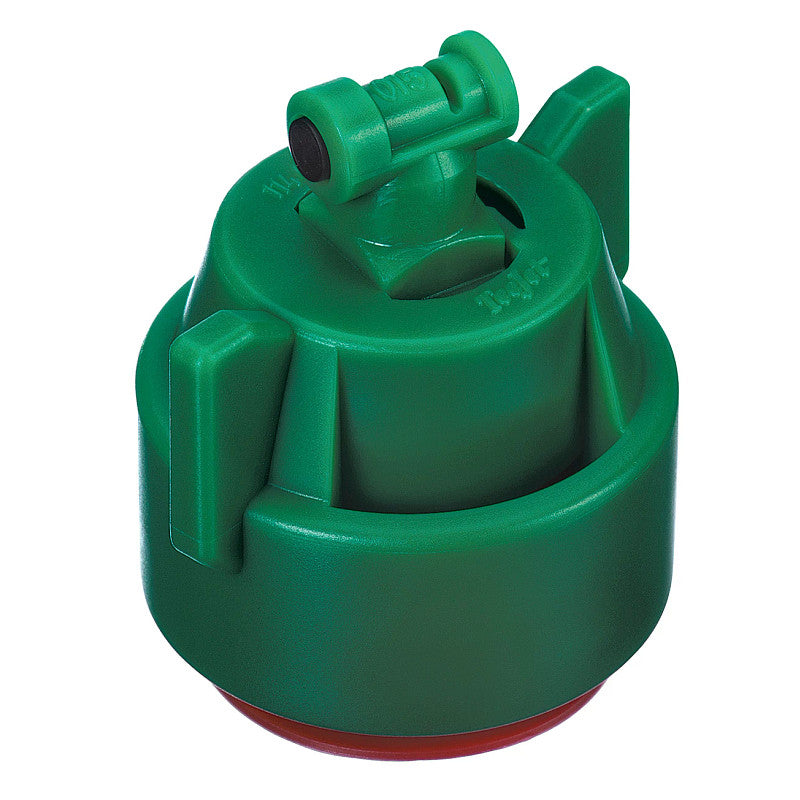

TT110015VP-CE-W-10X Turbo TeeJet flat spray tip, 110° spray angle, 0.15 GPM at 40 PSI (green), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. Includes Wilger adapter cap assembly; sold as a 10-pack. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT110015 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 100-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | VC | 0.092 | 12 | 6.8 | 5.5 | 4.6 | 3.4 | 2.7 | 2.3 | 1.8 | 1.4 |
| 20 | C | 0.11 | 14 | 8.2 | 6.5 | 5.4 | 4.1 | 3.3 | 2.7 | 2.2 | 1.6 |
| 30 | M | 0.13 | 17 | 9.7 | 7.7 | 6.4 | 4.8 | 3.9 | 3.2 | 2.6 | 1.9 |
| 40 | M | 0.15 | 19 | 11.1 | 8.9 | 7.4 | 5.6 | 4.5 | 3.7 | 3.0 | 2.2 |
| 50 | M | 0.17 | 22 | 12.6 | 10.1 | 8.4 | 6.3 | 5.0 | 4.2 | 3.4 | 2.5 |
| 60 | F | 0.18 | 23 | 13.4 | 10.7 | 8.9 | 6.7 | 5.3 | 4.5 | 3.6 | 2.7 |
| 75 | F | 0.21 | 27 | 15.6 | 12.5 | 10.4 | 7.8 | 6.2 | 5.2 | 4.2 | 3.1 |
| 90 | F | 0.23 | 29 | 17.1 | 13.7 | 11.4 | 8.5 | 6.8 | 5.7 | 4.6 | 3.4 |
Drop size (ASABE S572): F = Fine, M = Medium, C = Coarse, VC = Very Coarse.
