TT11002-VP — Turbo TeeJet Tip
TT11002-VP — Turbo TeeJet Tip
Couldn't load pickup availability
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

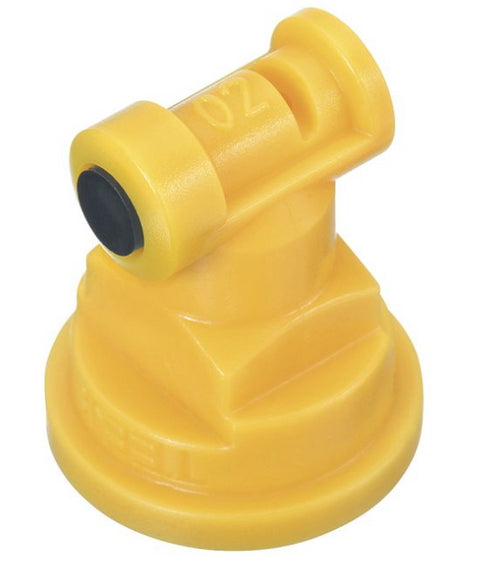

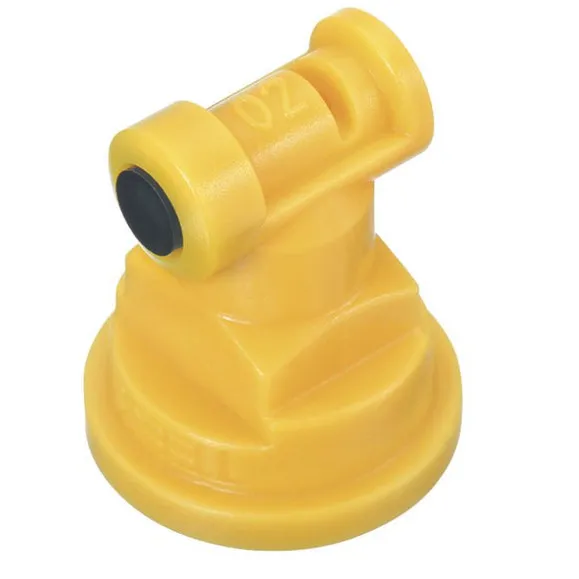

TT11002-VP Turbo TeeJet flat spray tip, 110° spray angle, 0.2 GPM at 40 PSI (yellow), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT11002 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | VC | 0.12 | 15 | 8.9 | 7.1 | 5.9 | 4.5 | 3.6 | 3.0 | 2.4 | 1.8 |
| 20 | VC | 0.14 | 18 | 10.4 | 8.3 | 6.9 | 5.2 | 4.2 | 3.5 | 2.8 | 2.1 |
| 30 | C | 0.17 | 22 | 12.6 | 10.1 | 8.4 | 6.3 | 5.0 | 4.2 | 3.4 | 2.5 |
| 40 | M | 0.20 | 26 | 14.9 | 11.9 | 9.9 | 7.4 | 5.9 | 5.0 | 4.0 | 3.0 |
| 50 | M | 0.22 | 28 | 16.3 | 13.1 | 10.9 | 8.2 | 6.5 | 5.4 | 4.4 | 3.3 |
| 60 | M | 0.24 | 31 | 17.8 | 14.3 | 11.9 | 8.9 | 7.1 | 5.9 | 4.8 | 3.6 |
| 75 | F | 0.27 | 35 | 20 | 16.0 | 13.4 | 10.0 | 8.0 | 6.7 | 5.3 | 4.0 |
| 90 | F | 0.30 | 38 | 22 | 17.8 | 14.9 | 11.1 | 8.9 | 7.4 | 5.9 | 4.5 |
Drop size (ASABE S572): F = Fine, M = Medium, C = Coarse, VC = Very Coarse.
