TeeJet
TT110025VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
TT110025VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

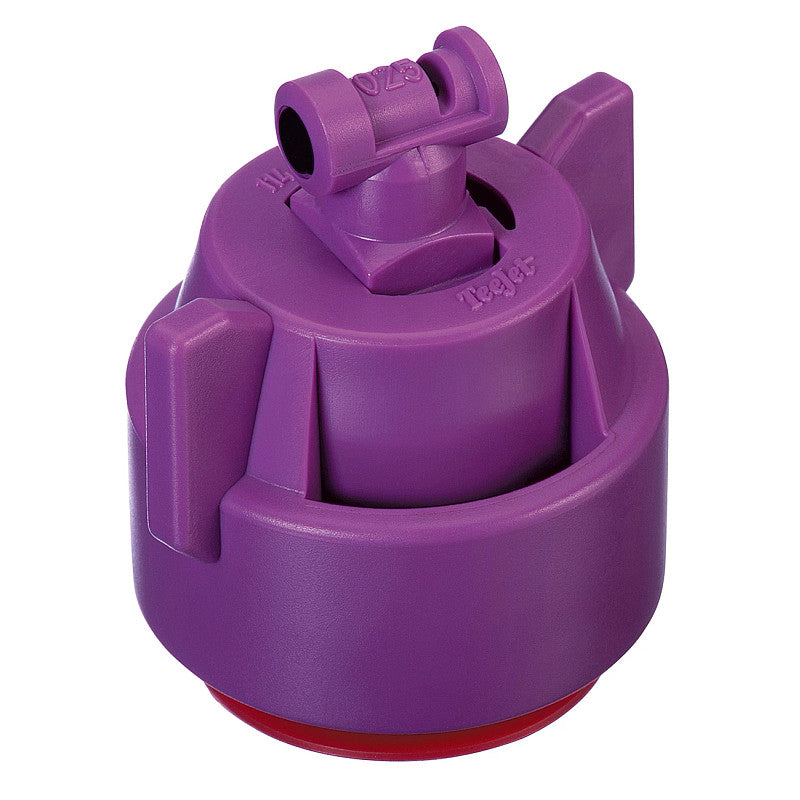

TT110025VP-CE-W-10X Turbo TeeJet flat spray tip, 110° spray angle, 0.25 GPM at 40 PSI (lilac), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. Includes Wilger adapter cap assembly; sold as a 10-pack. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT110025 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | VC | 0.15 | 19 | 11.1 | 8.9 | 7.4 | 5.6 | 4.5 | 3.7 | 3.0 | 2.2 |
| 20 | VC | 0.18 | 23 | 13.4 | 10.7 | 8.9 | 6.7 | 5.3 | 4.5 | 3.6 | 2.7 |
| 30 | C | 0.22 | 28 | 16.3 | 13.1 | 10.9 | 8.2 | 6.5 | 5.4 | 4.4 | 3.3 |
| 40 | M | 0.25 | 32 | 18.6 | 14.9 | 12.4 | 9.3 | 7.4 | 6.2 | 5.0 | 3.7 |
| 50 | M | 0.28 | 36 | 21 | 16.6 | 13.9 | 10.4 | 8.3 | 6.9 | 5.5 | 4.2 |
| 60 | M | 0.31 | 40 | 23 | 18.4 | 15.3 | 11.5 | 9.2 | 7.7 | 6.1 | 4.6 |
| 75 | F | 0.34 | 44 | 25 | 20 | 16.8 | 12.6 | 10.1 | 8.4 | 6.7 | 5.0 |
| 90 | F | 0.38 | 49 | 28 | 23 | 18.8 | 14.1 | 11.3 | 9.4 | 7.5 | 5.6 |
Drop size (ASABE S572): F = Fine, M = Medium, C = Coarse, VC = Very Coarse.
