TT11002VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
TT11002VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

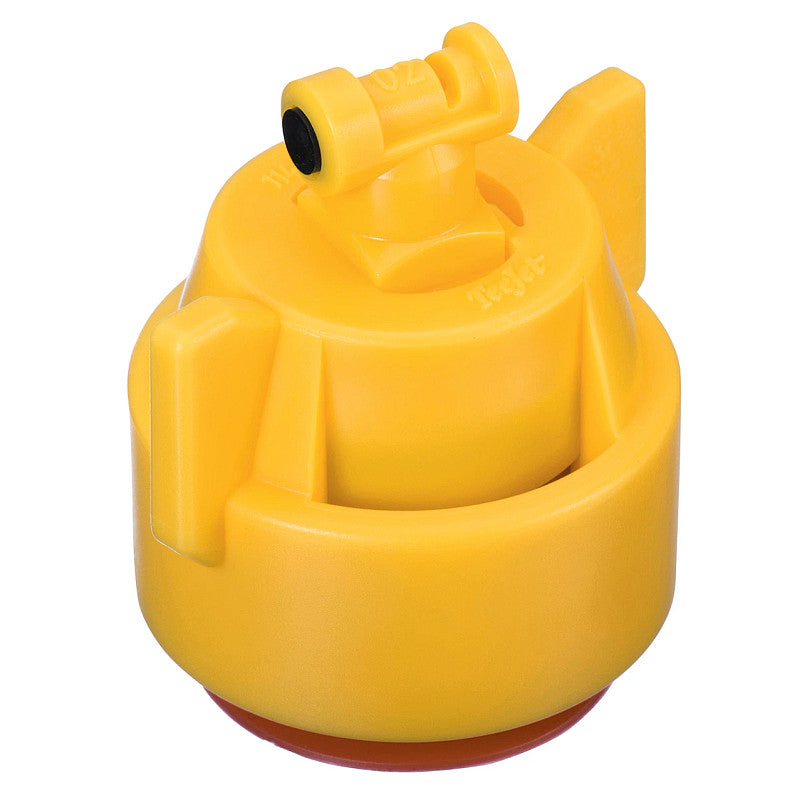

TT11002VP-CE-W-10X Turbo TeeJet flat spray tip, 110° spray angle, 0.2 GPM at 40 PSI (yellow), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. Includes Wilger adapter cap assembly; sold as a 10-pack. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT11002 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | VC | 0.12 | 15 | 8.9 | 7.1 | 5.9 | 4.5 | 3.6 | 3.0 | 2.4 | 1.8 |
| 20 | VC | 0.14 | 18 | 10.4 | 8.3 | 6.9 | 5.2 | 4.2 | 3.5 | 2.8 | 2.1 |
| 30 | C | 0.17 | 22 | 12.6 | 10.1 | 8.4 | 6.3 | 5.0 | 4.2 | 3.4 | 2.5 |
| 40 | M | 0.20 | 26 | 14.9 | 11.9 | 9.9 | 7.4 | 5.9 | 5.0 | 4.0 | 3.0 |
| 50 | M | 0.22 | 28 | 16.3 | 13.1 | 10.9 | 8.2 | 6.5 | 5.4 | 4.4 | 3.3 |
| 60 | M | 0.24 | 31 | 17.8 | 14.3 | 11.9 | 8.9 | 7.1 | 5.9 | 4.8 | 3.6 |
| 75 | F | 0.27 | 35 | 20 | 16.0 | 13.4 | 10.0 | 8.0 | 6.7 | 5.3 | 4.0 |
| 90 | F | 0.30 | 38 | 22 | 17.8 | 14.9 | 11.1 | 8.9 | 7.4 | 5.9 | 4.5 |
Drop size (ASABE S572): F = Fine, M = Medium, C = Coarse, VC = Very Coarse.
