TT11004VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
TT11004VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

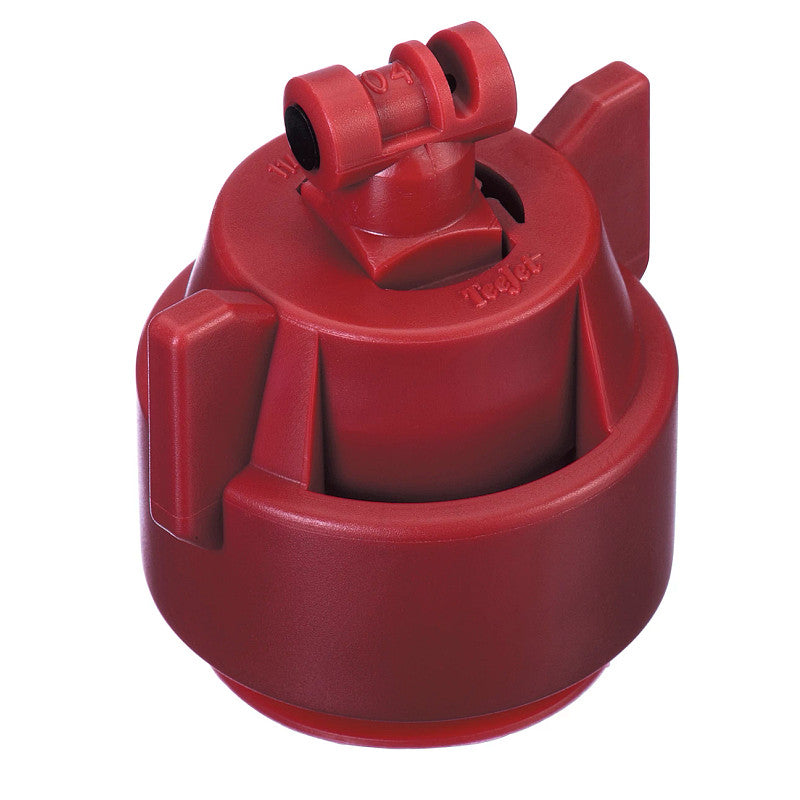

TT11004VP-CE-W-10X Turbo TeeJet flat spray tip, 110° spray angle, 0.4 GPM at 40 PSI (red), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. Includes Wilger adapter cap assembly; sold as a 10-pack. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT11004 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | XC | 0.24 | 31 | 17.8 | 14.3 | 11.9 | 8.9 | 7.1 | 5.9 | 4.8 | 3.6 |
| 20 | VC | 0.28 | 36 | 21 | 16.6 | 13.9 | 10.4 | 8.3 | 6.9 | 5.5 | 4.2 |
| 30 | C | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 40 | C | 0.40 | 51 | 30 | 24 | 19.8 | 14.9 | 11.9 | 9.9 | 7.9 | 5.9 |
| 50 | M | 0.45 | 58 | 33 | 27 | 22 | 16.7 | 13.4 | 11.1 | 8.9 | 6.7 |
| 60 | M | 0.49 | 63 | 36 | 29 | 24 | 18.2 | 14.6 | 12.1 | 9.7 | 7.3 |
| 75 | M | 0.55 | 70 | 41 | 33 | 27 | 20 | 16.3 | 13.6 | 10.9 | 8.2 |
| 90 | M | 0.60 | 77 | 45 | 36 | 30 | 22 | 17.8 | 14.9 | 11.9 | 8.9 |
Drop size (ASABE S572): M = Medium, C = Coarse, VC = Very Coarse, XC = Extremely Coarse.
