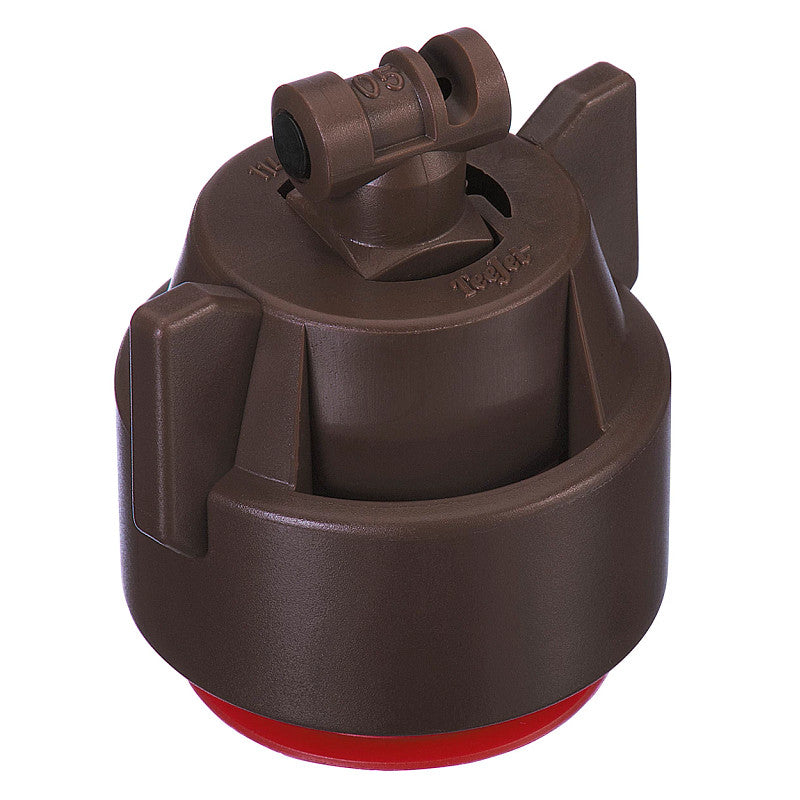

TT11005VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
TT11005VP-CE-W-10X — Visflo Turbo TeeJet Tip And Wilger Adapter 10PK
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
TT11005VP-CE-W-10X Turbo TeeJet flat spray tip, 110° spray angle, 0.5 GPM at 40 PSI (brown), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. Includes Wilger adapter cap assembly; sold as a 10-pack. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT11005 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | XC | 0.31 | 40 | 23 | 18.4 | 15.3 | 11.5 | 9.2 | 7.7 | 6.1 | 4.6 |
| 20 | VC | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 30 | VC | 0.43 | 55 | 32 | 26 | 21 | 16.0 | 12.8 | 10.6 | 8.5 | 6.4 |
| 40 | C | 0.50 | 64 | 37 | 30 | 25 | 18.6 | 14.9 | 12.4 | 9.9 | 7.4 |
| 50 | C | 0.56 | 72 | 42 | 33 | 28 | 21 | 16.6 | 13.9 | 11.1 | 8.3 |
| 60 | M | 0.61 | 78 | 45 | 36 | 30 | 23 | 18.1 | 15.1 | 12.1 | 9.1 |
| 75 | M | 0.68 | 87 | 50 | 40 | 34 | 25 | 20 | 16.8 | 13.5 | 10.1 |
| 90 | M | 0.75 | 96 | 56 | 45 | 37 | 28 | 22 | 18.6 | 14.9 | 11.1 |
Drop size (ASABE S572): M = Medium, C = Coarse, VC = Very Coarse, XC = Extremely Coarse.
