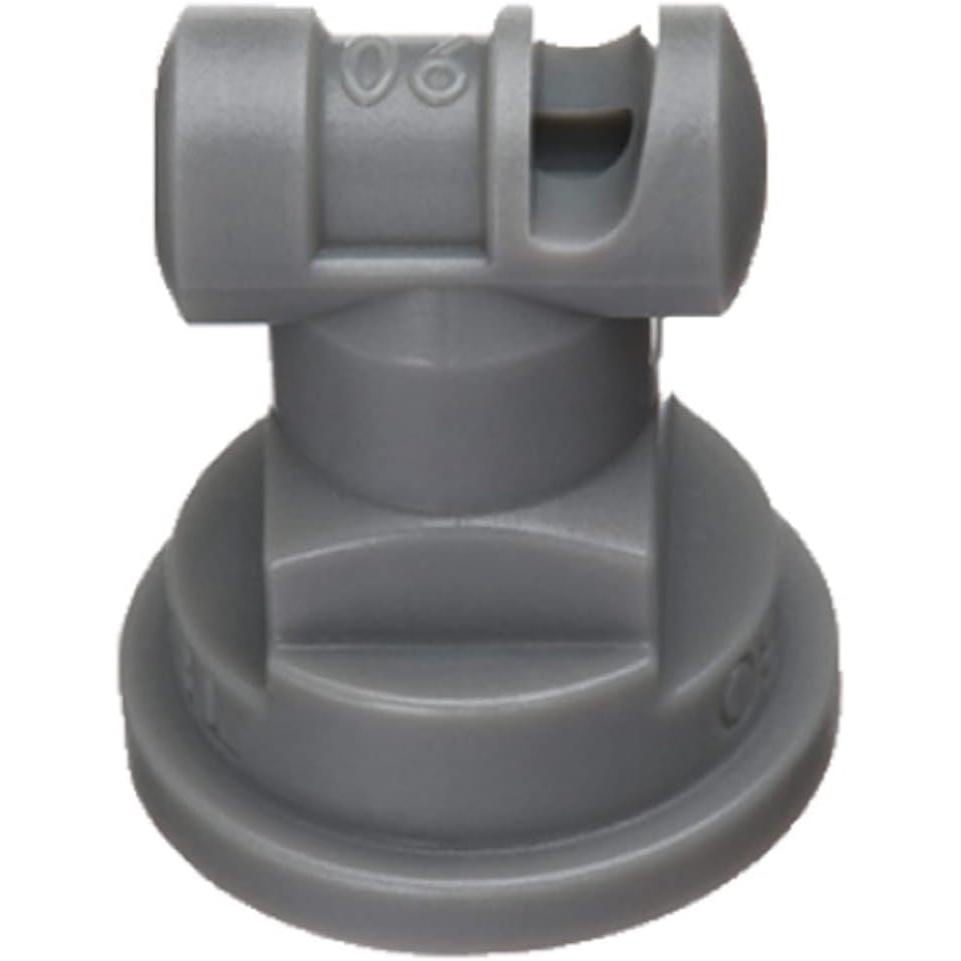

• Gray plastic TT11006-VP flat fan spray nozzle with a 110-degree spray angle and 06 capacity marking.
1 1

TeeJet

TT11006-VP — Turbo TeeJet Tip

TT11006-VP — Turbo TeeJet Tip

$5.70 USD
$10.97 USD $5.70 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSTT11006-VP — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “TT11006-VP — Turbo TeeJet Tip” — fitment, alternatives, or what else you need

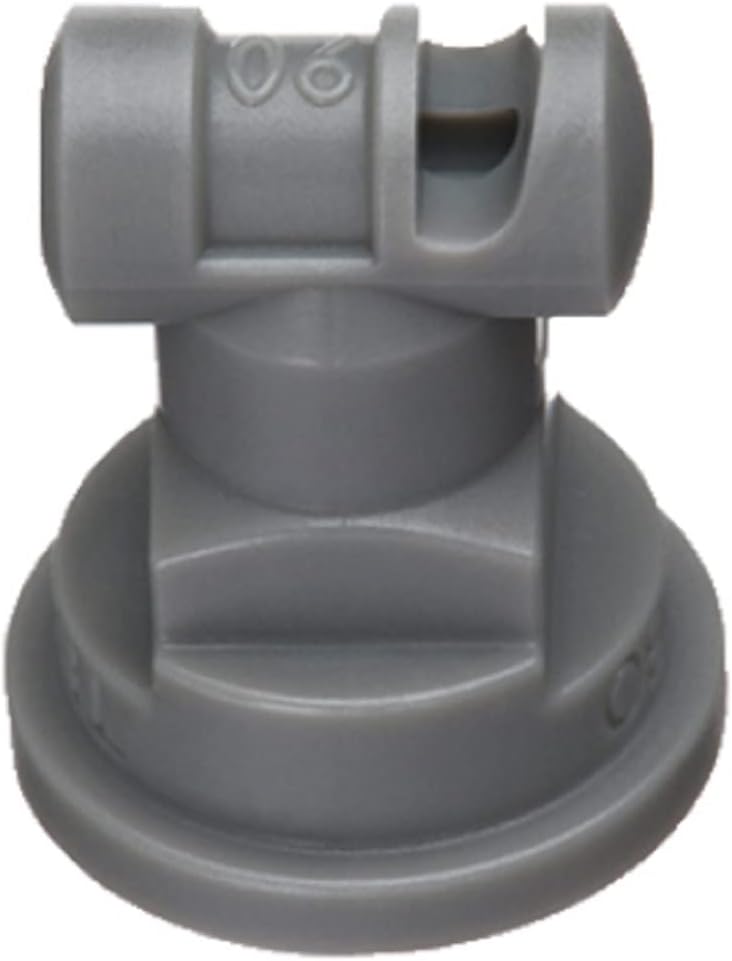

TT11006-VP Turbo TeeJet flat spray tip, 110° spray angle, 0.6 GPM at 40 PSI (gray), polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. For agricultural boom sprayer application.

Application Rates

Capacity and application rates for the TT11006 tip from TeeJet Catalog 51A (rated pressure range 15–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.

PSI Drop size GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
15 XC 0.37 47 27 22 18.3 13.7 11.0 9.2 7.3 5.5
20 VC 0.42 54 31 25 21 15.6 12.5 10.4 8.3 6.2
30 VC 0.52 67 39 31 26 19.3 15.4 12.9 10.3 7.7
40 VC 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9
50 C 0.67 86 50 40 33 25 19.9 16.6 13.3 9.9
60 C 0.73 93 54 43 36 27 22 18.1 14.5 10.8
75 C 0.82 105 61 49 41 30 24 20 16.2 12.2
90 M 0.90 115 67 53 45 33 27 22 17.8 13.4

Drop size (ASABE S572): M = Medium, C = Coarse, VC = Very Coarse, XC = Extremely Coarse.
