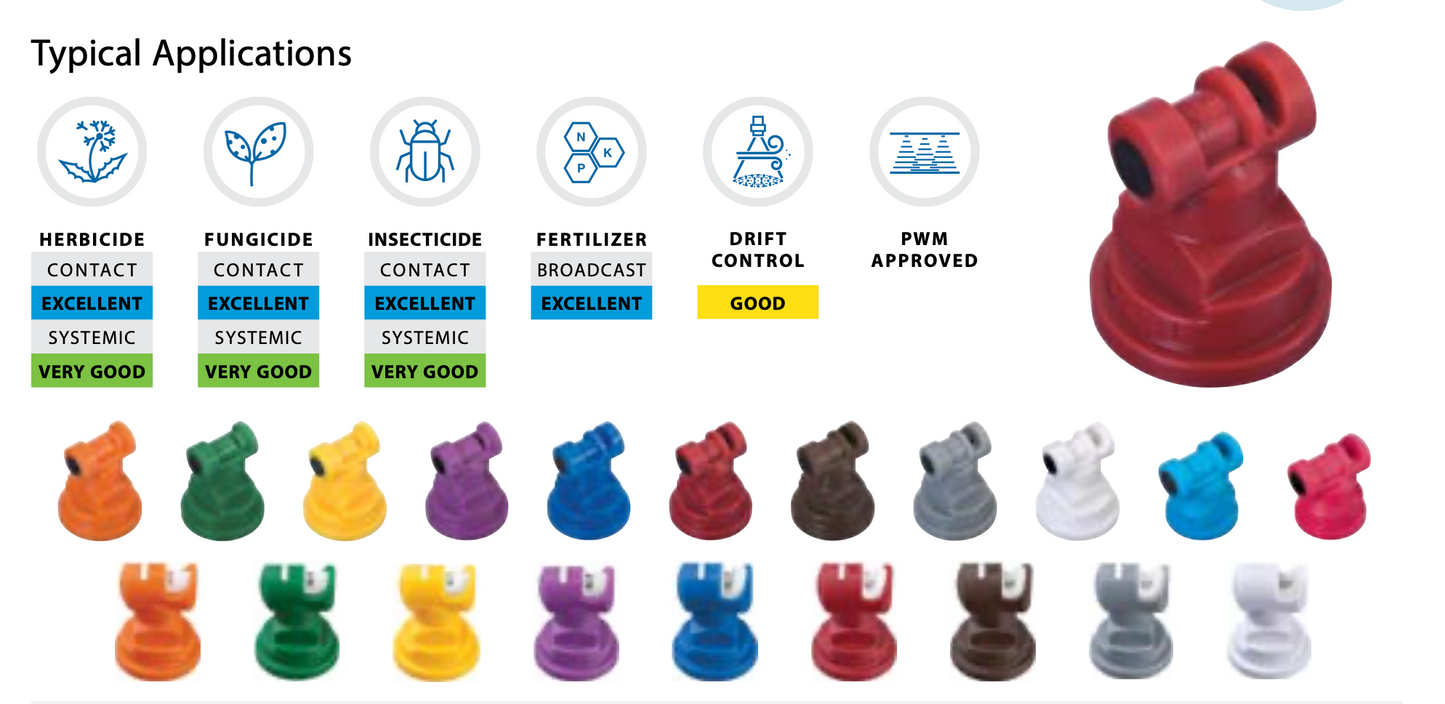

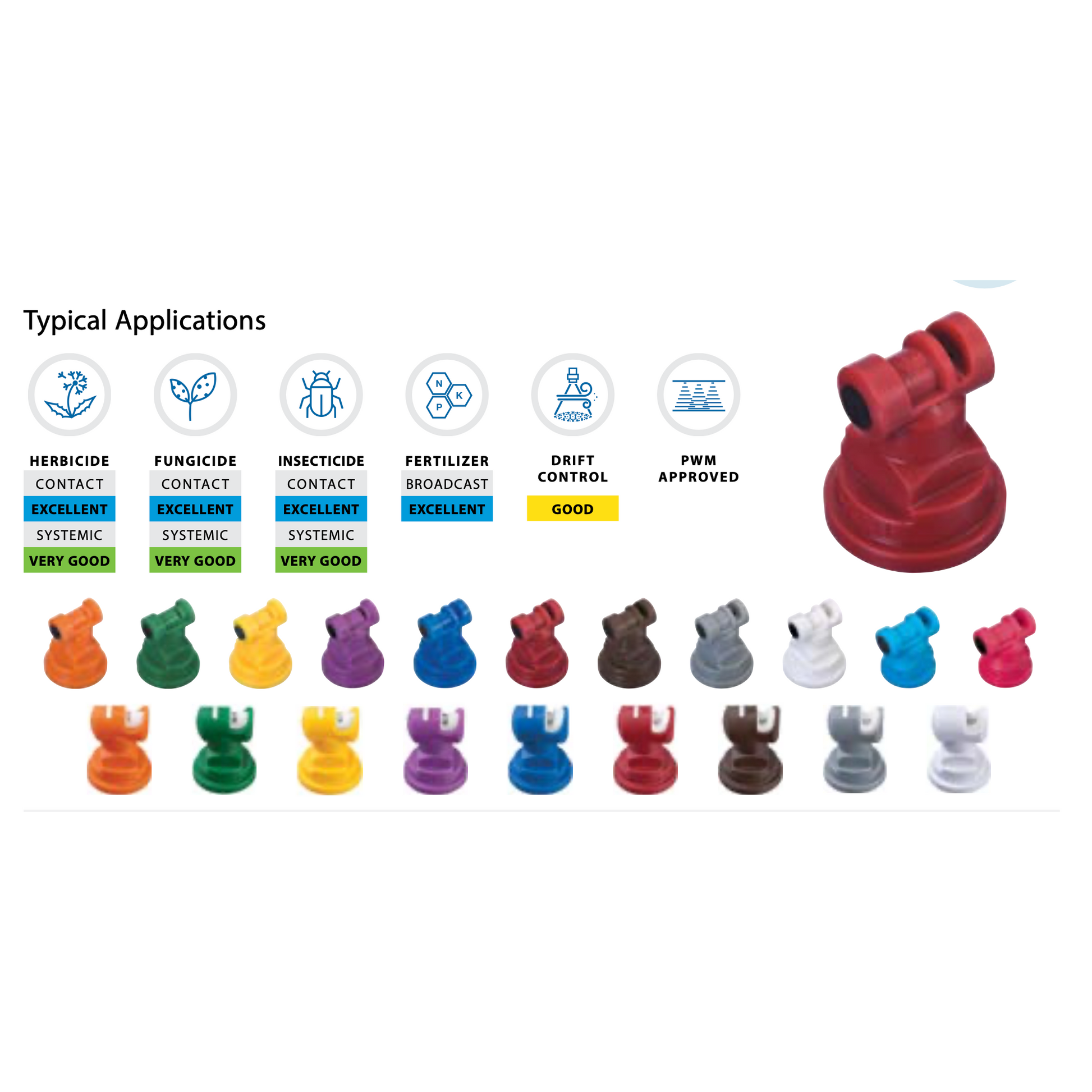

• Red TT11010-VP-CE spray nozzle with application chart showing herbicide, fungicide, insecticide, and fertilizer compatibility.
1 1

TeeJet

TT11010-VP-CE — TT CE Cap Assembly With Plug

TT11010-VP-CE — TT CE Cap Assembly With Plug

$8.43 USD
$16.21 USD $8.43 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSTT11010-VP-CE — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “TT11010-VP-CE — TT CE Cap Assembly With Plug” — fitment, alternatives, or what else you need

TeeJet TT11010-VP-CE — TT CE cap assembly with plug.

Details

Part number TT11010-VP-CE
Manufacturer TeeJet Technologies
SKU SSTT11010-VP-CE
Catalogue description TT CE CAP ASSM W/PLUG

Expanded from the TeeJet Technologies catalogue listing for this part.

Application Rates

Capacity and application rates for the TT11010-VP-CE tip, rated 1 GPM at 40 PSI (pressure range shown 15–90 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.

PSI GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
15 0.61 78 45 36 30 23 18.1 15.1 12.1 9.1
20 0.71 91 53 42 35 26 21 17.6 14.1 10.5
30 0.87 111 65 52 43 32 26 22 17.2 12.9
40 1.00 128 74 59 50 37 30 25 19.8 14.8
50 1.12 143 83 67 55 42 33 28 22 16.6
60 1.22 156 91 72 60 45 36 30 24 18.1
75 1.37 175 102 81 68 51 41 34 27 20
90 1.50 192 111 89 74 56 45 37 30 22
