TT11012-VP — Large Capacity Turbo TeeJet Tip
TT11012-VP — Large Capacity Turbo TeeJet Tip
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

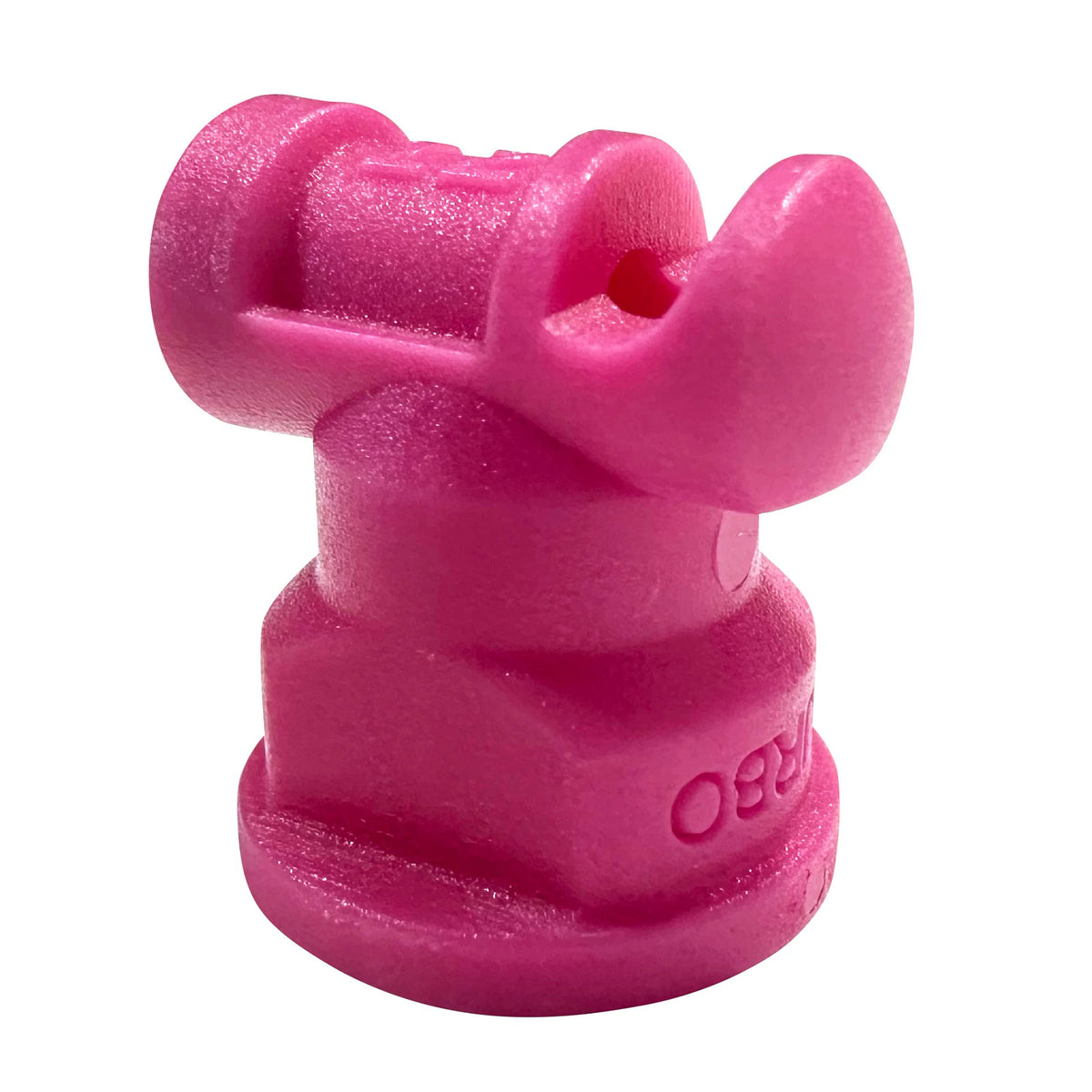

TT11012-VP Turbo TeeJet flat spray tip, 110° spray angle, polymer/acetal construction. Produces larger droplets than XR-series tips for soil-applied herbicides and fertilizers while maintaining uniform coverage. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TT11012-VP tip, rated 1.20 GPM at 40 PSI (pressure range shown 15–90 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.
| PSI | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | |||
| 15 | 0.73 | 93 | 54 | 43 | 36 | 27 | 22 | 18.1 | 14.5 | 10.8 |
| 20 | 0.85 | 109 | 63 | 50 | 42 | 32 | 25 | 21 | 16.8 | 12.6 |
| 30 | 1.04 | 133 | 77 | 62 | 51 | 39 | 31 | 26 | 21 | 15.4 |
| 40 | 1.20 | 154 | 89 | 71 | 59 | 45 | 36 | 30 | 24 | 17.8 |
| 50 | 1.34 | 172 | 99 | 80 | 66 | 50 | 40 | 33 | 27 | 19.9 |
| 60 | 1.47 | 188 | 109 | 87 | 73 | 55 | 44 | 36 | 29 | 22 |
| 75 | 1.64 | 210 | 122 | 97 | 81 | 61 | 49 | 41 | 32 | 24 |
| 90 | 1.80 | 230 | 134 | 107 | 89 | 67 | 53 | 45 | 36 | 27 |
