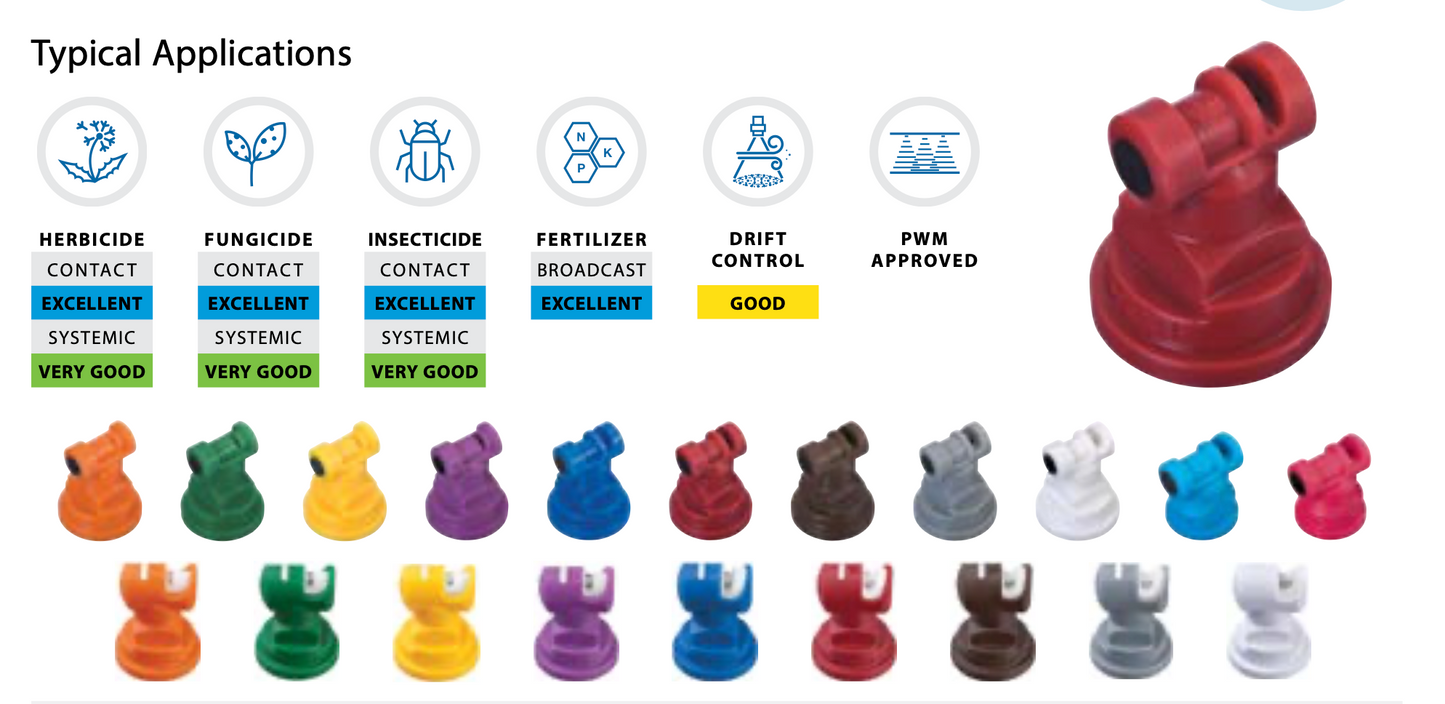

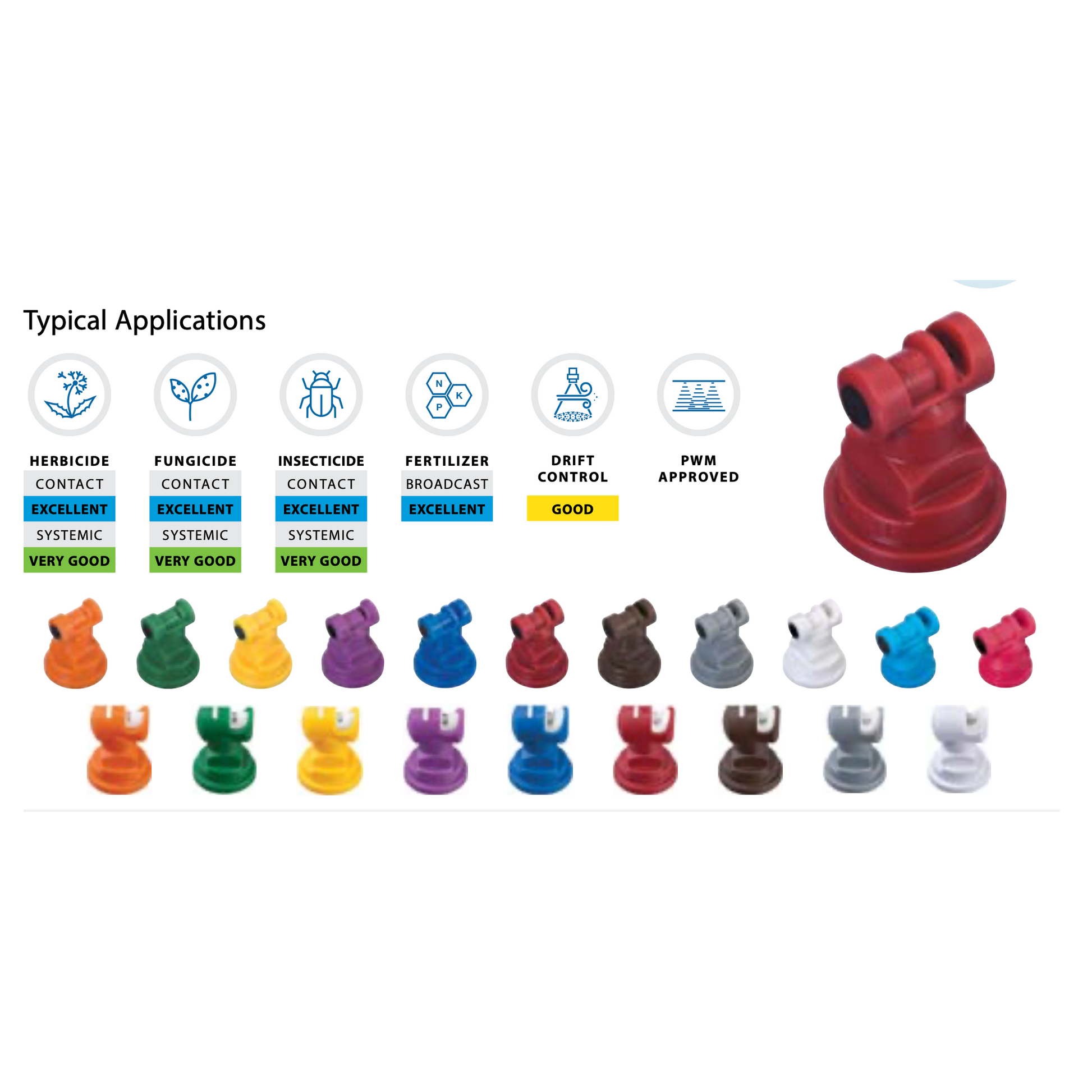

• TT11012-VP-CE red plastic spray nozzle with application chart for herbicides, fungicides, insecticides, and fertilizers.
1 1

TeeJet

TT11012-VP-CE — TT CE Cap Assembly With Plug

TT11012-VP-CE — TT CE Cap Assembly With Plug

$8.43 USD
$16.21 USD $8.43 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSTT11012-VP-CE — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “TT11012-VP-CE — TT CE Cap Assembly With Plug” — fitment, alternatives, or what else you need

TeeJet TT11012-VP-CE — TT CE cap assembly with plug.

Details

Part number TT11012-VP-CE
Manufacturer TeeJet Technologies
SKU SSTT11012-VP-CE
Catalogue description TT CE CAP ASSM W/PLUG

Expanded from the TeeJet Technologies catalogue listing for this part.

Application Rates

Capacity and application rates for the TT11012-VP-CE tip, rated 1.2 GPM at 40 PSI (pressure range shown 15–90 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.

PSI GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
15 0.73 93 54 43 36 27 22 18.1 14.5 10.8
20 0.85 109 63 50 42 32 25 21 16.8 12.6
30 1.04 133 77 62 51 39 31 26 21 15.4
40 1.20 154 89 71 59 45 36 30 24 17.8
50 1.34 172 99 80 66 50 40 33 27 19.9
60 1.47 188 109 87 73 55 44 36 29 22
75 1.64 210 122 97 81 61 49 41 32 24
90 1.80 230 134 107 89 67 53 45 36 27
