TTI11010-VP — TT Induction Tip
TTI11010-VP — TT Induction Tip
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

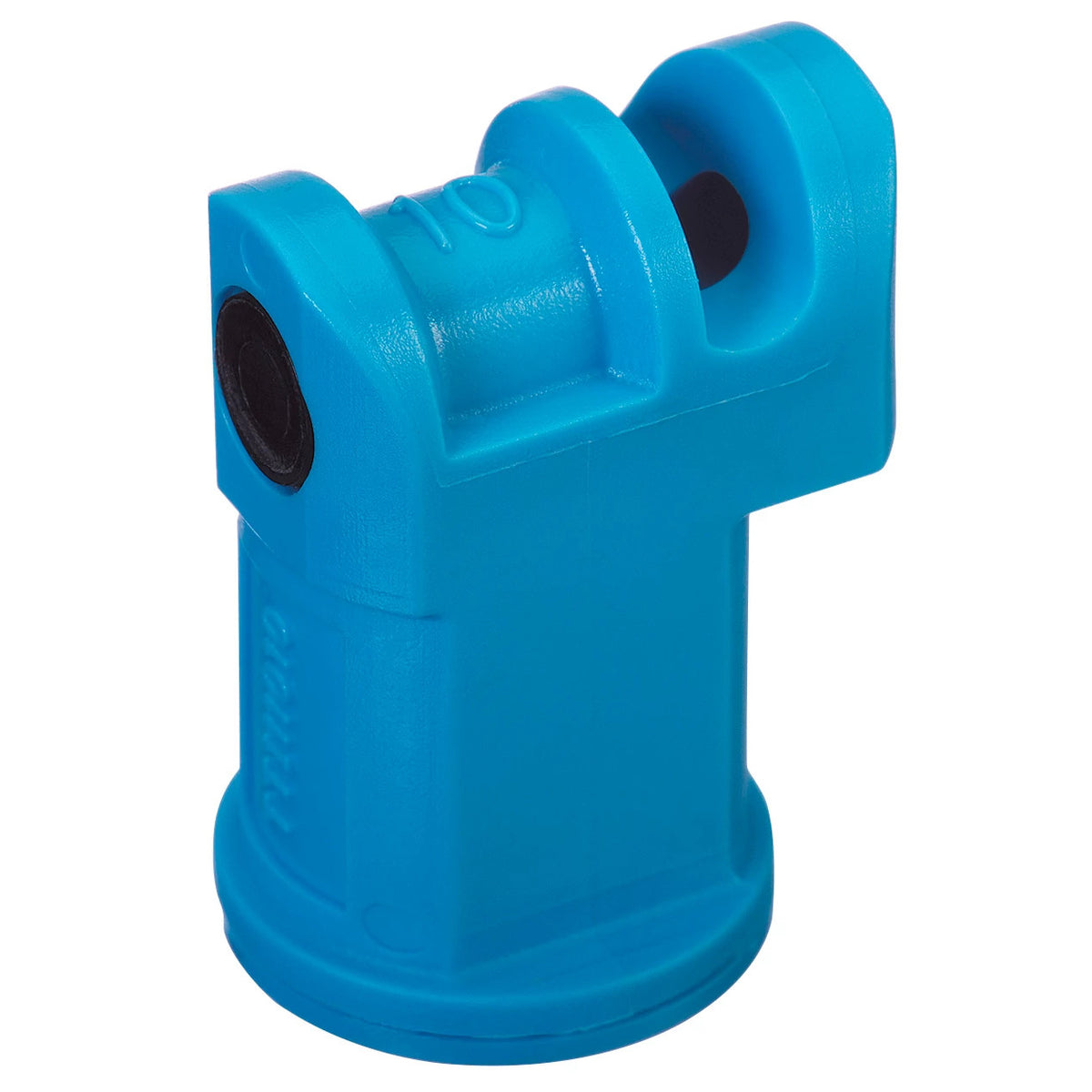

TTI11010-VP Turbo TeeJet Induction flat spray tip, 110° spray angle, 1.0 GPM at 40 PSI, polymer/acetal construction. Produces Ultra-Coarse to Very-Coarse droplets for maximum drift control. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TTI11010-VP tip, rated 1.00 GPM at 40 PSI (pressure range shown 15–100 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.
| PSI | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | |||
| 15 | 0.61 | 78 | 45 | 36 | 30 | 23 | 18.1 | 15.1 | 12.1 | 9.1 |
| 20 | 0.71 | 91 | 53 | 42 | 35 | 26 | 21 | 17.6 | 14.1 | 10.5 |
| 30 | 0.87 | 111 | 65 | 52 | 43 | 32 | 26 | 22 | 17.2 | 12.9 |
| 40 | 1.00 | 128 | 74 | 59 | 50 | 37 | 30 | 25 | 19.8 | 14.8 |
| 50 | 1.12 | 143 | 83 | 67 | 55 | 42 | 33 | 28 | 22 | 16.6 |
| 60 | 1.22 | 156 | 91 | 72 | 60 | 45 | 36 | 30 | 24 | 18.1 |
| 70 | 1.32 | 169 | 98 | 78 | 65 | 49 | 39 | 33 | 26 | 19.6 |
| 80 | 1.41 | 180 | 105 | 84 | 70 | 52 | 42 | 35 | 28 | 21 |
| 90 | 1.50 | 192 | 111 | 89 | 74 | 56 | 45 | 37 | 30 | 22 |
| 100 | 1.58 | 202 | 117 | 94 | 78 | 59 | 47 | 39 | 31 | 23 |
