TTI60-11004VP — TTI TwinJet Tip/Cap
TTI60-11004VP — TTI TwinJet Tip/Cap
Not sure this is the right tip?
Enter your rate, speed and spacing and our free selector picks the TeeJet tip from what we have in stock.
Open the nozzle selector →Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

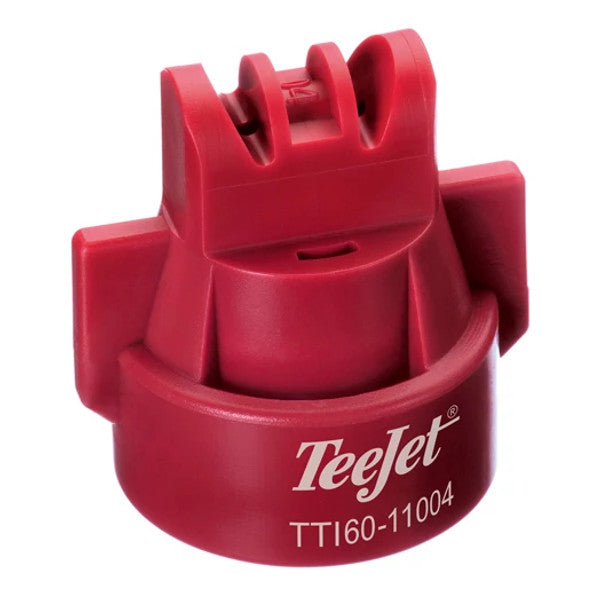

TTI60-11004VP TTI TwinJet Air Induction twin flat spray tip, 110° spray angle, 0.4 GPM at 40 PSI (red), polymer/acetal construction. Produces a twin spray pattern engineered for maximum drift reduction. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the TTI60-11004VP tip, rated 0.40 GPM at 40 PSI (pressure range shown 20–100 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.
| PSI | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | |||
| 20 | 0.28 | 36 | 21 | 16.6 | 13.9 | 10.4 | 8.3 | 6.9 | 5.5 | 4.2 |
| 30 | 0.35 | 45 | 26 | 21 | 17.3 | 13.0 | 10.4 | 8.7 | 6.9 | 5.2 |
| 40 | 0.40 | 51 | 30 | 24 | 19.8 | 14.8 | 11.9 | 9.9 | 7.9 | 5.9 |
| 50 | 0.45 | 58 | 33 | 27 | 22 | 16.7 | 13.4 | 11.1 | 8.9 | 6.7 |
| 60 | 0.49 | 63 | 36 | 29 | 24 | 18.2 | 14.6 | 12.1 | 9.7 | 7.3 |
| 70 | 0.53 | 68 | 39 | 31 | 26 | 19.7 | 15.7 | 13.1 | 10.5 | 7.9 |
| 80 | 0.57 | 73 | 42 | 34 | 28 | 21 | 16.9 | 14.1 | 11.3 | 8.5 |
| 90 | 0.60 | 77 | 45 | 36 | 30 | 22 | 17.8 | 14.8 | 11.9 | 8.9 |
| 100 | 0.63 | 81 | 47 | 37 | 31 | 23 | 18.7 | 15.6 | 12.5 | 9.4 |
