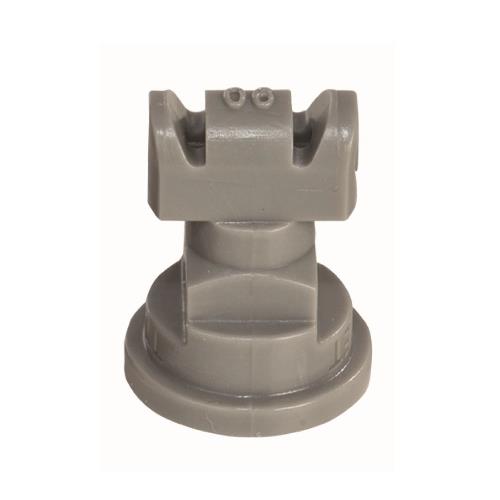

• Gray plastic TTJ60-11006VP spray nozzle tip with a wide fan pattern design and embossed numeric markings.
1 1

TeeJet

TTJ60-11006VP — Turbo TwinJet Tip

TTJ60-11006VP — Turbo TwinJet Tip

$6.84 USD
$13.16 USD $6.84 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSTTJ60-11006VP — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “TTJ60-11006VP — Turbo TwinJet Tip” — fitment, alternatives, or what else you need

TTJ60-11006VP Turbo TwinJet flat spray tip, 110° spray angle, 0.6 GPM at 40 PSI (gray), polymer/acetal construction. Produces a twin spray pattern with Coarse-to-Medium droplets, giving improved coverage for contact products. For agricultural boom sprayer application.

Application Rates

Capacity and application rates for the TTJ60-11006 tip from TeeJet Catalog 51A (rated pressure range 20–90 PSI, 50-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.

PSI Drop size GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
20 XC 0.42 54 31 25 21 15.6 12.5 10.4 8.3 6.2
30 VC 0.52 67 39 31 26 19.3 15.4 12.9 10.3 7.7
40 C 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9
50 C 0.67 86 50 40 33 25 19.9 16.6 13.3 9.9
60 C 0.73 93 54 43 36 27 22 18.1 14.5 10.8
70 C 0.79 101 59 47 39 29 23 19.6 15.6 11.7
80 C 0.85 109 63 50 42 32 25 21 16.8 12.6
90 C 0.90 115 67 53 45 33 27 22 17.8 13.4

Drop size (ASABE S572): C = Coarse, VC = Very Coarse, XC = Extremely Coarse.
