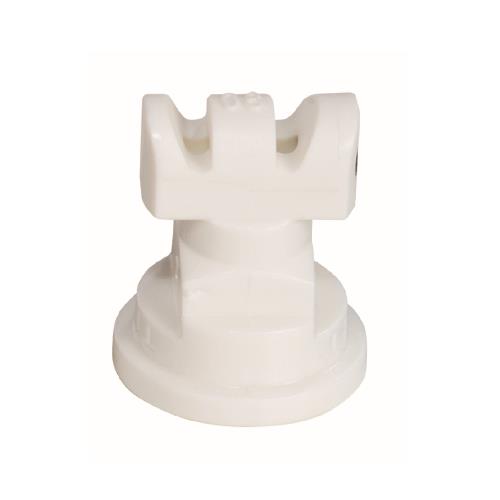

• White plastic TTJ60-11008VP spray nozzle tip with a wide, flat-fan design for agricultural precision spraying.
1 1

TeeJet

TTJ60-11008VP — Turbo TwinJet Tip

TTJ60-11008VP — Turbo TwinJet Tip

$6.84 USD
$13.16 USD $6.84 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSTTJ60-11008VP — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “TTJ60-11008VP — Turbo TwinJet Tip” — fitment, alternatives, or what else you need

TTJ60-11008VP Turbo TwinJet flat spray tip, 110° spray angle, 0.8 GPM at 40 PSI (white), polymer/acetal construction. Produces a twin spray pattern with Coarse-to-Medium droplets, giving improved coverage for contact products. For agricultural boom sprayer application.

Application Rates

Capacity and application rates for the TTJ60-11008VP tip, rated 0.80 GPM at 40 PSI (pressure range shown 20–90 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.

PSI GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
20 0.57 73 42 34 28 21 16.9 14.1 11.3 8.5
30 0.69 88 51 41 34 26 20 17.1 13.7 10.2
40 0.80 102 59 48 40 30 24 19.8 15.8 11.9
50 0.89 114 66 53 44 33 26 22 17.6 13.2
60 0.98 125 73 58 49 36 29 24 19.4 14.6
70 1.06 136 79 63 52 39 31 26 21 15.7
80 1.13 145 84 67 56 42 34 28 22 16.8
90 1.20 154 89 71 59 45 36 30 24 17.8
