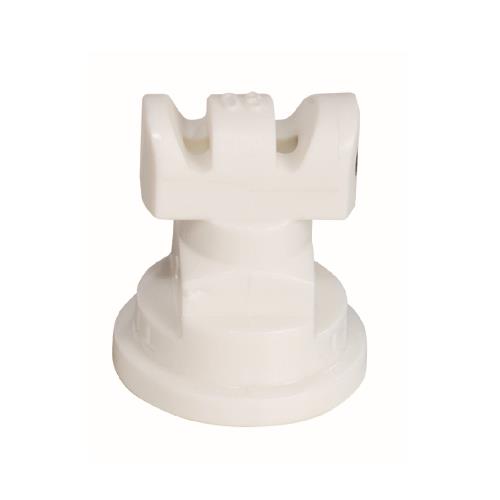

• White plastic TTJ60-11008VP-CE agricultural spray nozzle tip with a wide, flat fan design for precision spraying.
1 1

TeeJet

TTJ60-11008VP-CE — CE Cap Assembly With Plug

TTJ60-11008VP-CE — CE Cap Assembly With Plug

$7.87 USD
$15.14 USD $7.87 USD
Sale
Shipping calculated at checkout.
Title

Questions on fitment? Need a different size or quantity?

(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Part: SSTTJ60-11008VP-CE — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “TTJ60-11008VP-CE — CE Cap Assembly With Plug” — fitment, alternatives, or what else you need

TeeJet TTJ60-11008VP-CE — TTJ60 CE cap assembly with plug.

Details

Part number TTJ60-11008VP-CE
Manufacturer TeeJet Technologies
SKU SSTTJ60-11008VP-CE
Catalogue description TTJ60 CE CAP ASSM W/PLUG

Expanded from the TeeJet Technologies catalogue listing for this part.

Application Rates

Capacity and application rates for the TTJ60-11008VP-CE tip, rated 0.8 GPM at 40 PSI (pressure range shown 20–90 PSI). This size is not tabulated in TeeJet Catalog 51A, so the figures below are calculated with TeeJet’s standard formulas (GPM = rated GPM × √(PSI ÷ 40); GPA = 5,940 × GPM ÷ (MPH × spacing)), spraying water at 70°F. GPA figures are for broadcast spraying on 20″ nozzle spacing. Always double-check application rates by calibrating your sprayer.

PSI GPM per tip oz/min GPA at MPH
4 5 6 8 10 12 15 20
20 0.57 73 42 34 28 21 16.9 14.1 11.3 8.5
30 0.69 88 51 41 34 26 20 17.1 13.7 10.2
40 0.80 102 59 48 40 30 24 19.8 15.8 11.9
50 0.89 114 66 53 44 33 26 22 17.6 13.2
60 0.98 125 73 58 49 36 29 24 19.4 14.6
70 1.06 136 79 63 52 39 31 26 21 15.7
80 1.13 145 84 67 56 42 34 28 22 16.8
90 1.20 154 89 71 59 45 36 30 24 17.8
View full details
