TeeJet

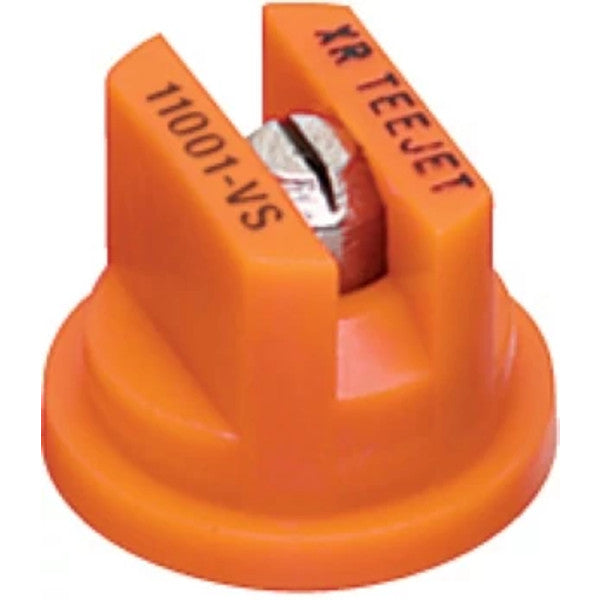

XR11001VS — TeeJet Spray Tip, XR
XR11001VS — TeeJet Spray Tip, XR
Regular price
$6.05 USD
Regular price
$11.64 USD
Sale price
$6.05 USD
Unit price
/
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “XR11001VS — TeeJet Spray Tip, XR” — fitment, alternatives, or what else you need
XR11001VS extended range flat spray tip, 110° spray angle, stainless steel construction (VisiFlo stainless). General-purpose broadcast flat spray tip for contact herbicides, fungicides, and insecticides, producing medium-to-coarse droplets. For agricultural boom sprayer application.
Application Rates
Capacity and application rates for the XR11001 tip from TeeJet Catalog 51A (rated pressure range 15–60 PSI, 100-mesh tip strainer recommended). GPA figures are for broadcast spraying on 20″ nozzle spacing. Tabulations are based on spraying water at 70°F. Always double-check application rates by calibrating your sprayer.
| PSI | Drop size | GPM per tip | oz/min | GPA at MPH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | ||||
| 15 | F | 0.061 | 7.8 | 4.5 | 3.6 | 3.0 | 2.3 | 1.8 | 1.5 | 1.2 | 0.91 |
| 20 | F | 0.071 | 9.1 | 5.3 | 4.2 | 3.5 | 2.6 | 2.1 | 1.8 | 1.4 | 1.1 |
| 30 | F | 0.087 | 11 | 6.5 | 5.2 | 4.3 | 3.2 | 2.6 | 2.2 | 1.7 | 1.3 |
| 40 | F | 0.10 | 13 | 7.4 | 5.9 | 5.0 | 3.7 | 3.0 | 2.5 | 2.0 | 1.5 |
| 50 | F | 0.11 | 14 | 8.2 | 6.5 | 5.4 | 4.1 | 3.3 | 2.7 | 2.2 | 1.6 |
| 60 | VF | 0.12 | 15 | 8.9 | 7.1 | 5.9 | 4.5 | 3.6 | 3.0 | 2.4 | 1.8 |
Drop size (ASABE S572): VF = Very Fine, F = Fine.
